DATASHEET - RF Dimmer Receiver

www.lumeno.ie
v1t-1
v1t-1v1t-2

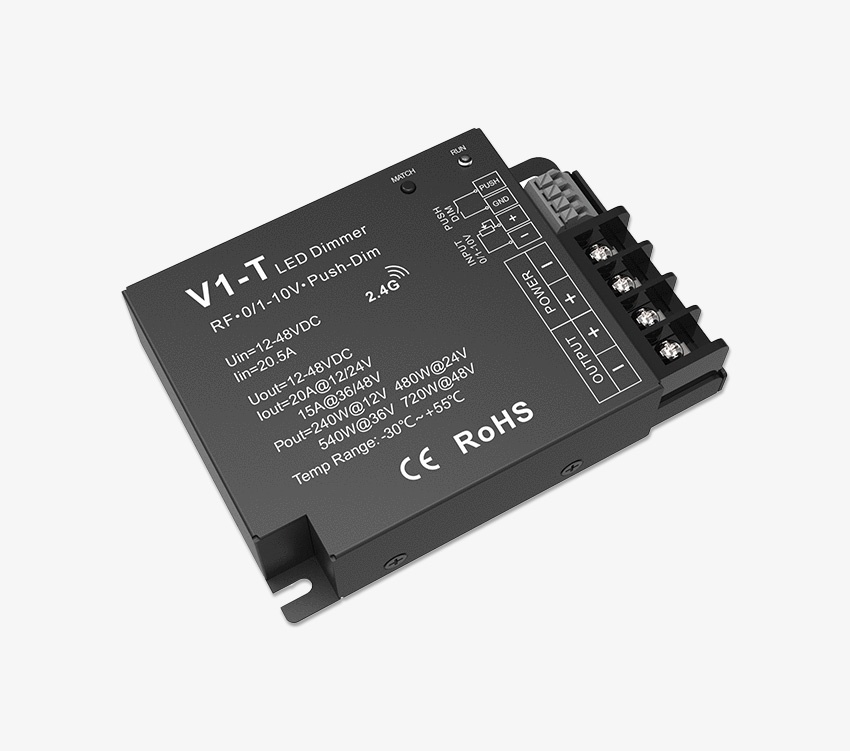

LM-CT-V1T

1CH LED RF Dimmer/Controller, 20A@12-24V

No vote
  • RF Dimming interface, 0/1-10V, Push Dim (3-in-1) dimming.
  • 4096 levels 0-100% dimming smoothly without any ash.
  • Match with RF 2.4G single zone or multiple zone dimming remote control.
  • One RF controller accept up to 10 remote control.
  • Controller automatically transmit signal to another controller with 15m control distance.
  • Synchronize on multiple number of controllers.
  • Light on/off fade time 3s selectable.
Dimming receiver controller : 20A receiver (12V@240W-24V@480W). Multiple receivers can work with one or more remotes/wallplates. Each receiver works as a signal relay, repeating the signal between other units in range. Ideal strip dimming solution. Build in push-to-make interface.

Technical Specification

ModelLM-CT-V1T
Wireless signal 2.4Ghz
Control distance 15m(Barrier-free space)
Output Power (P) 240W@12V 480W@24V 540W@36V 720W@48V
Current Output (Io) 20A@12/24V 15A@36/48V
Ingress Protection IP20
Size 120x80x34mm
Weight 0.254kg
Warranty Period 5 years
AC Current (Ip) 20.5A
Protection Reverse polarity, Over-heat, Over-load, Short circuit
Certification CE,EMC,RED
