DATASHEET - RF Hand held remote

www.lumeno.ie
ct-ru4-1
ct-ru4-1ct-ru4-2
LM-CT-RU4-DIM

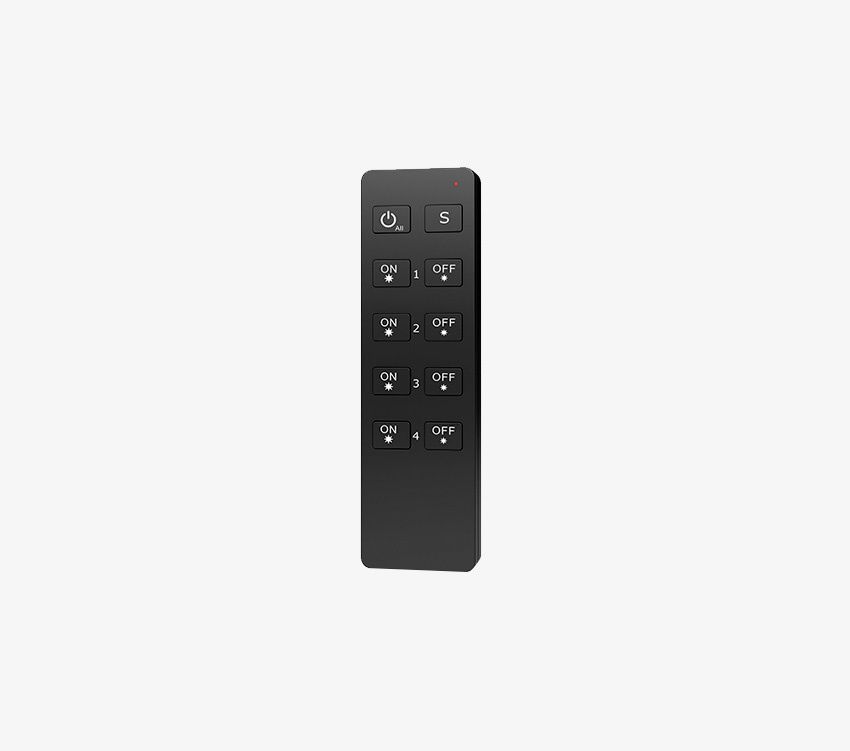

RF Remote,4 Zone,Dim/Switch,Master on/off

  • RF Dimming remote
  • Compatible with V1 and S1 Series controllers
  • Four zone + master on/off

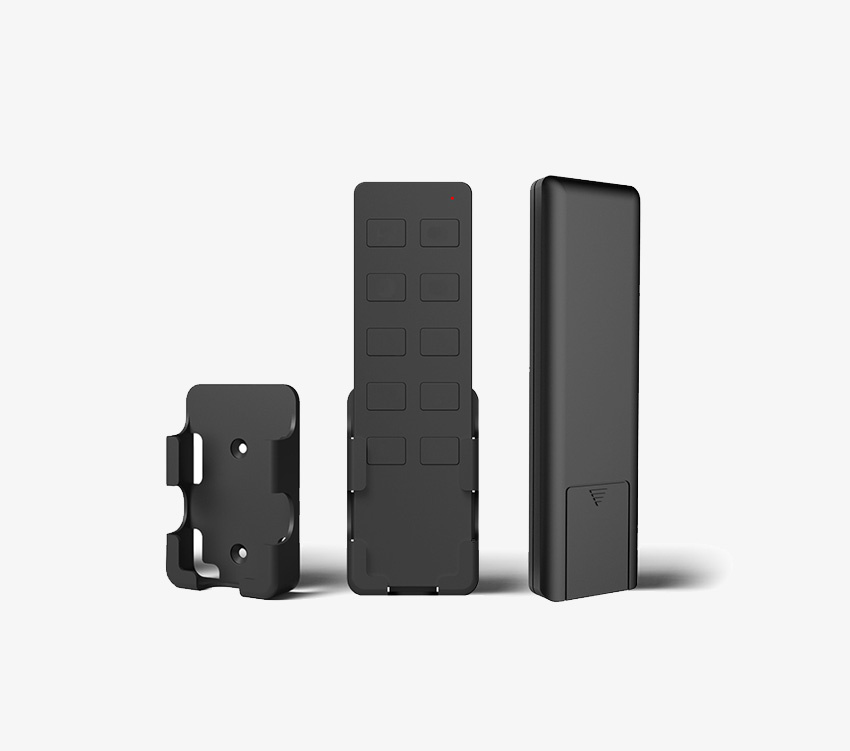

  • Magnet bracket included
  • 2.4Ghz Frequency, 30m Range

Hand held, dimming/switching remote. 4 contol zones with master on/off function. Can be paired with multiple CT-V1 controllers.

Technical Specifications

General
Model
LM-CT-RU4-DIM
Product type
RF Dimming, Lighting Controlls
Compliance summary
CE,EMC,LVD,RED
Warranty
2 Years
Accessories
1xCR2032, Wall bracket
Electrical
Input Voltage (Pri)
3V Battery
Rated output current (A / mA)
5mA
Controller type
Dimmer
Wireless protocol / frequency
RF 2.4Gz
Standby power (W)
2µA
Mechanical
IP rating
IP20
Dimensions (mm)
135x40x11mm
Weight
40g
Operating temperature (degrees C)
-30°C ~+55°C

Downloads & Resources

Technical documents and support files for LM-CT-RU4-DIM

Print-friendly layout
Press CTRL+P to save as pdf.
Datasheet [pdf] FILE  ·  Downloadable PDF file
Download
