DATASHEET - RF Hand held remote

www.lumeno.ie
ct-r1-1
LM-CT-R1-DIM

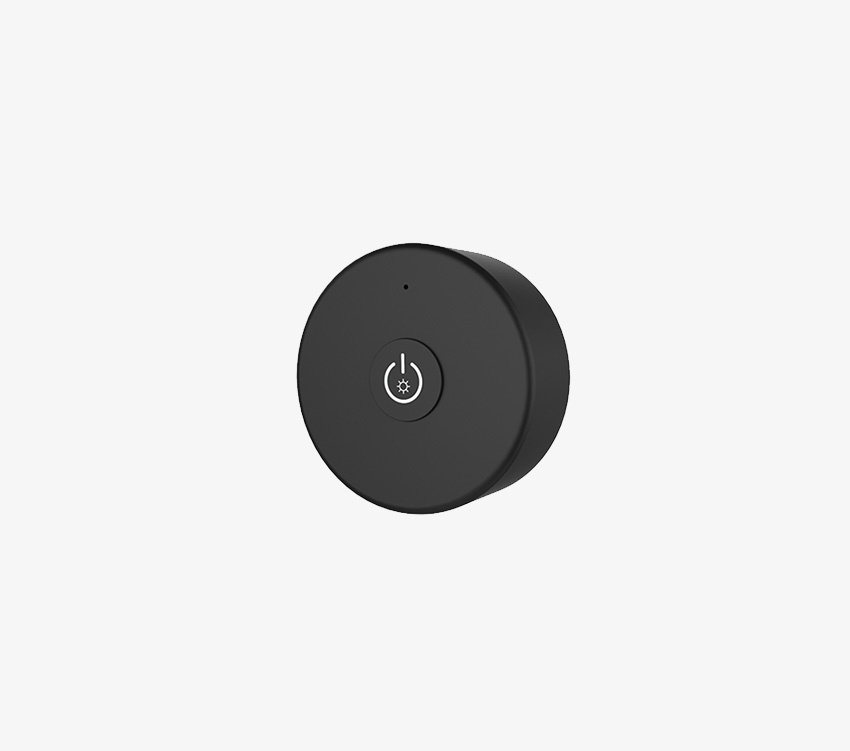

Remote control, Dimming/Switch, 1 Zone, (V1/V1L/S1B,SSC,TR1)

  • RF Dimming remote
  • Compatible with V1 and S1 Series controllers
  • Single zone
  • Magnet base
  • Button size remote
  • 2.4Ghz Frequency, 30m Range
Hand held, simple dimming or switching remote control. With magnet bracket. Single buttong on/off.

Technical Specifications

General
Model
LM-CT-R1-DIM
Product type
Lighting Controlls, RF Dimming
Compliance summary
CE,EMC,LVD,RED
Warranty
2 Years
Accessories
1xCR2032
Electrical
Controller type
Dimmer
Wireless protocol / frequency
RF 2.4Gz
Standby power (W)
<2µA
Mechanical
IP rating
IP20
Dimensions (mm)
43Øx17mm
Operating temperature (degrees C)
-30°C ~+55°C

Downloads & Resources

Technical documents and support files for LM-CT-R1-DIM

Print-friendly layout
Press CTRL+P to save as pdf.
Datasheet [pdf] FILE  ·  Downloadable PDF file
Download
