LM-PSD12V40V1

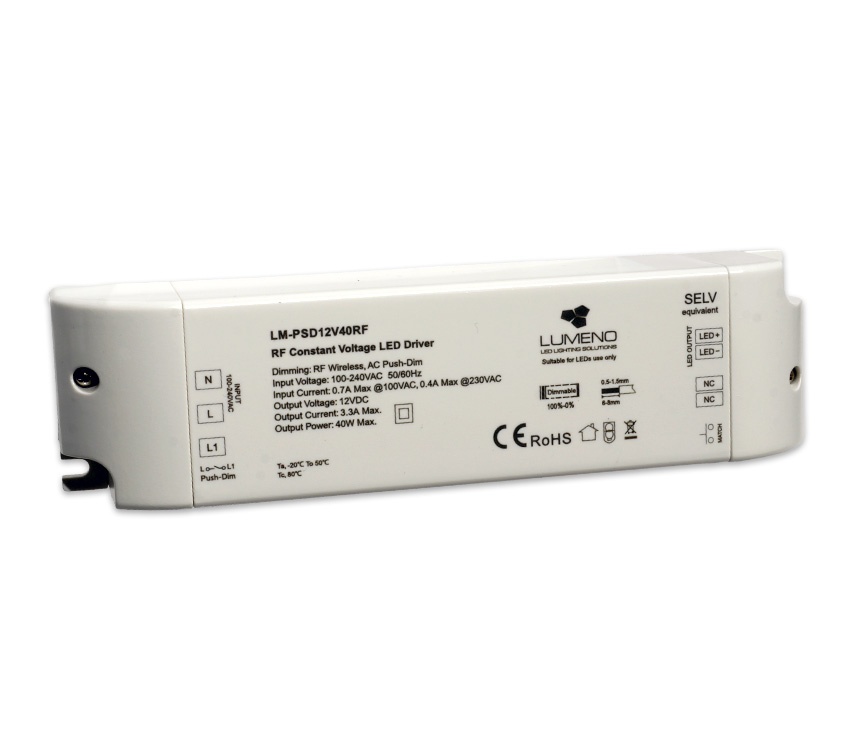

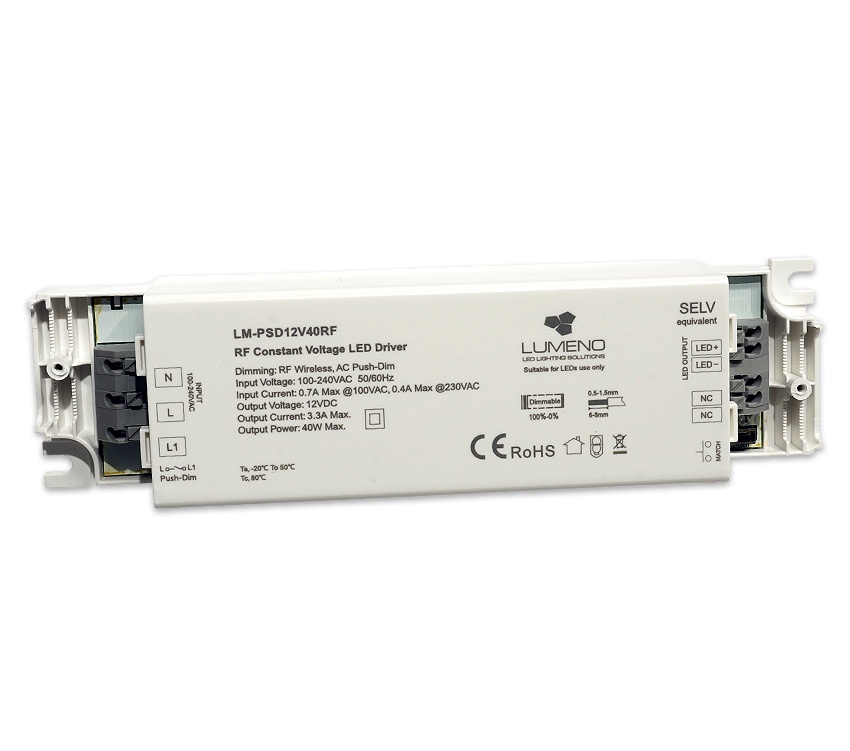

12V 40W Dimmable Power Supply, RF, Push-Dim, V Series

  • Dimming interface: RF Wireless, AC Push-Dim
  • Universal AC input / Full range
  • 1 channel constant voltage output
  • Auto-transmitting and synchronization function
  • Synchronize on multiple number of LED drivers
  • Full protective plastic case
  • Suitable for indoor LED lighting application

RF Dimmable power supply for single colour 12V DC LED lights. With 230V push dimming interface. Warp V series.

Technical Specifications

General
Model
LM-PSD12V40V1
Compliance summary
CE,EMC,Rohs
Warranty
5 Years
Electrical
Rated output power (W)
3.3A
Dimming / control type
RF using Warm V series controllers, Push to make interface
Inrush current
Cold Start @27.5A
Controller type
Dimmer
Wireless protocol / frequency
2.4Gz
Standby power (W)
1.2W
Lighting
Output specification
12V DC
Mechanical
IP rating
IP20
Dimensions (mm)
168x44x30mm
Operating temperature (degrees C)
20-50°C
