DATASHEET

www.lumeno.ie

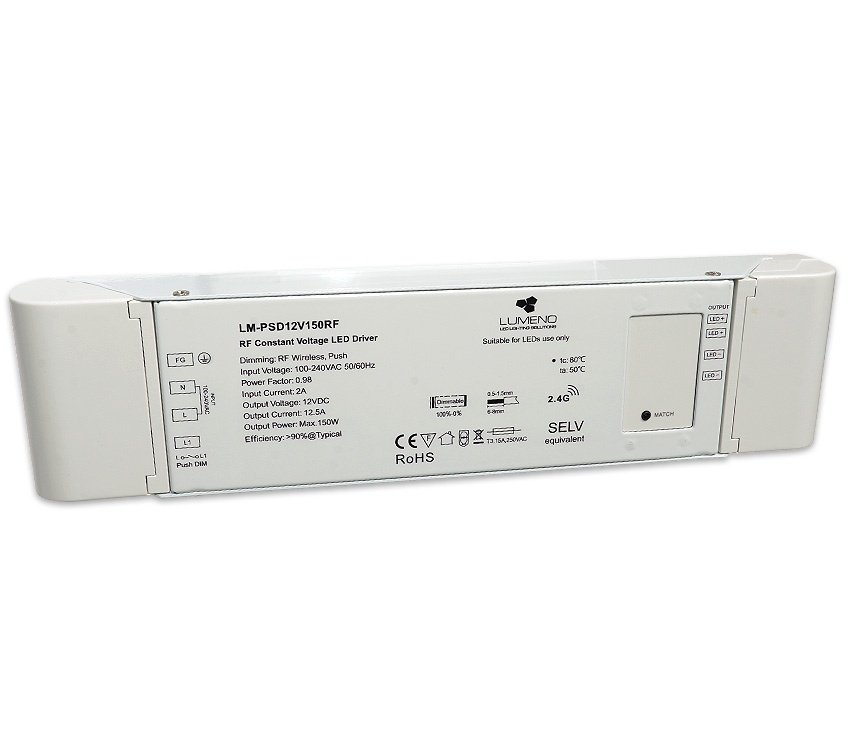

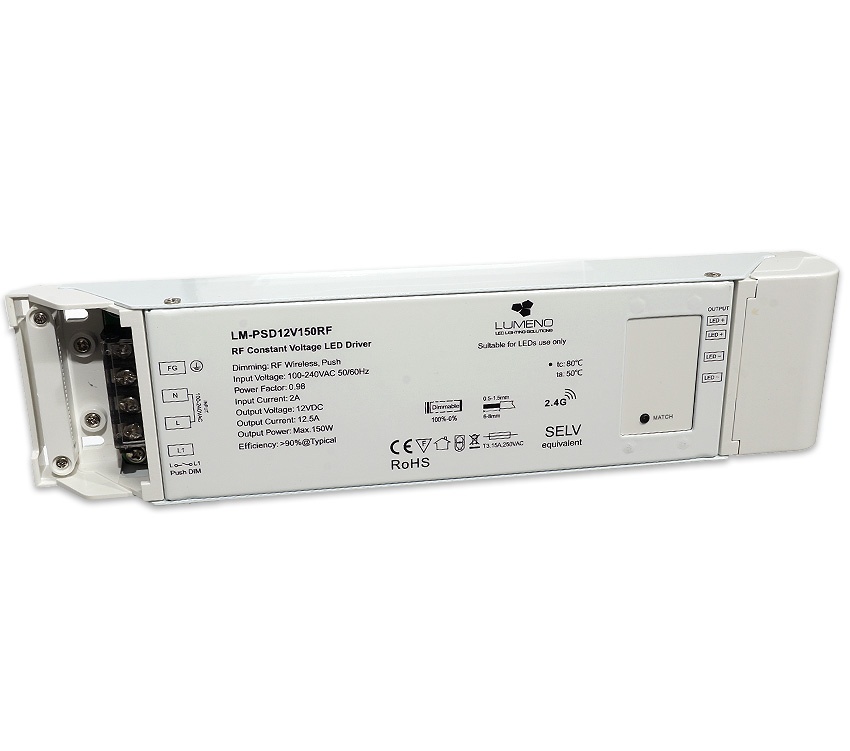

LM-PSD12V150V1

12V 150W Dimmable Power Supply, RF, Push-Dim, V Series

  • Dimming interface: RF Wireless, AC Push-Dim
  • Universal AC input / Full range
  • 1 channel constant voltage output
  • Auto-transmitting and synchronization function
  • Synchronize on multiple number of LED drivers
  • Full protective plastic case
  • Suitable for indoor LED lighting application
RF Dimmable power supply for single colour 12V DC LED lights. With 230V push dimming interface. Warp V series.

Technical Specification

ModelLM-PSD12V150V1
Standby Power 1.2W
Inrush Current Cold Start @27.5A
Wireless signal 2.4Gz
Control distance 30m
Output 12V DC
Output Power (P) 12.5A
Ingress Protection IP20
Dimming RF using Warm V series controllers, Push to make interface
Size 280x67x36mm
Working Temperature 20-50°C
Protection Over-heat / Over-load / Short circuit protection / recover automatically
Certification CE,EMC,Rohs
Warranty Period 5 Years
