DATASHEET - RF Control module

www.lumeno.ie
ct-v1l-1
LM-CT-V1DIM-L

RF Receiver, Dimmer, 1x 10A, 12-36VDC

  • RF Low voltage dimming interface
  • Compatible with CTV108 set and dimmable wall plates
  • Signal relay/repeat technology + 30m range
  • Range of dimming remote interfaces available
  • High Capacity : 10A
  • 2.4Ghz Frequency, 30m Range
High capacity dimming receiver controller : 10A receiver (12V@120W-24V@240W). Multiple receivers can work with one or more remotes/wallplates. Each receiver works as a signal relay, repeating the signal between other units in range. Ideal strip dimming solution. Build in push-to-make interface.

Technical Specifications

General
Model
LM-CT-V1DIM-L
Product type
Lighting Controlls, RF Dimming
Certification
CE,EMC,LVD,RED
Warranty Period
2 Years
Electrical
Input Voltage (Pri)
12V-36V DC
Output Power (P)
120-240 Watt
Current Output (Io)
1x10A
Dimming
PWM dimming
Controller Type
Dimmer
Wireless signal
RF 2.4Gz
Lighting
Output
V+ / V-
Mechanical
Ingress Protection
IP20
Working Temperature
-30°C ~+55°C

ONLYBY

Related Products & Addons

Touch wallplate, 1 Zone Dimming, 230V,DMX,RF(V1/V1L)
521311001

Touch wallplate, 1 Zone Dimming, 230V,DMX,RF(V1/V1L)

LM-CT-T16-1
Touch wallplate, 1 Zone Dimming, 230V,DMX,RF(V1/V1L)
ct-t16-4-1
521342101

Touch wallplate, 4 Zone Dimming, 230V,DMX,RF(V1/V1L)

LM-CT-T16-4
Touch wallplate, 4 Zone Dimming, 230V,DMX,RF(V1/V1L)
ct-t11-1-1
521341301

Touch Panel, Dimming,4Zone,3S,230V,DMX,RF,(V1/V1-L)

LM-CT-T11-1
Touch Panel, Dimming,4Zone,3S,230V,DMX,RF,(V1/V1-L)
efb-1
592201201

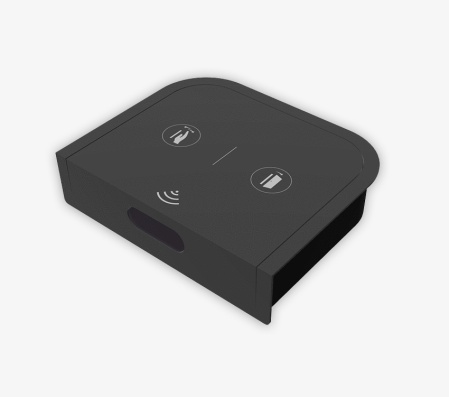

RF Hand wave/ door sensor, stand alone, CR2450
