Touch Panel, Dimming,4Zone,3S,230V,DMX,RF,(V1/V1-L)
DATASHEET - Wall plate controller
www.lumeno.ie
LM-CT-T11-1

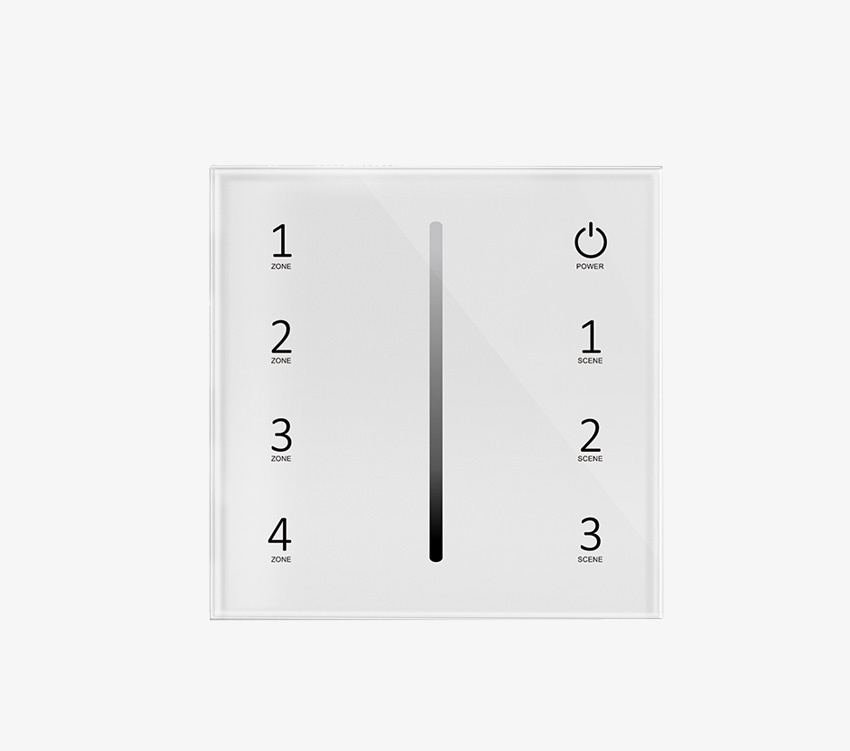

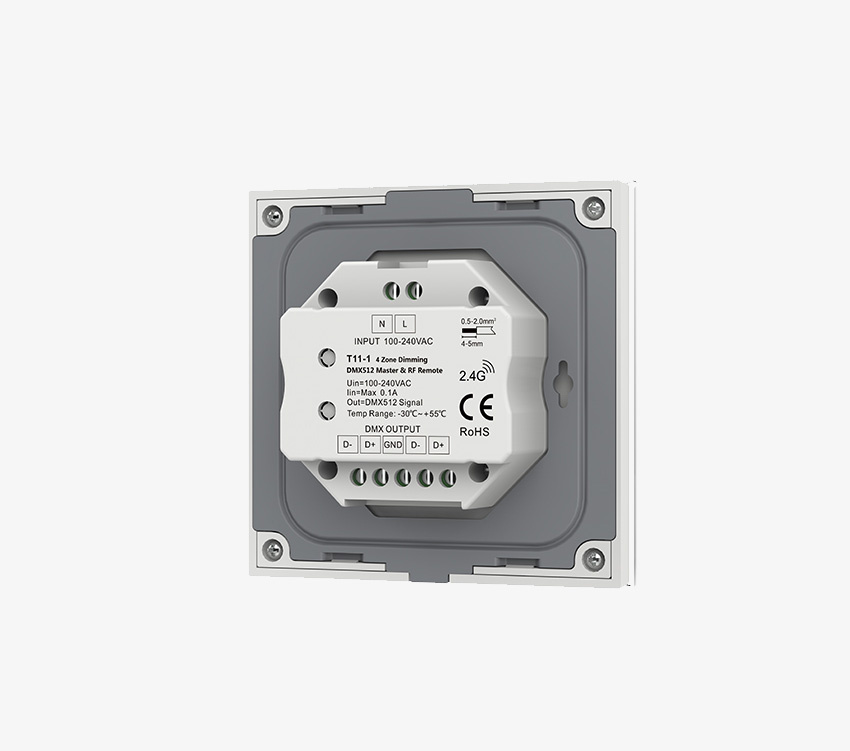

Touch Panel, Dimming,4Zone,3S,230V,DMX,RF,(V1/V1-L)
Dimming Touch Panel
DMX Master controller, compatible with DMX512
4 Zone DMX controller/ RF Remote
Sensitive glass plate interface
Led indicators on touch keys
Vertical dimming slider
230V input
3 Memory Scenes
Touch Dimming Remote Control with wireless signal and DMX interface. With 3 memory banks it can hold Scenes, storing different settings of multiple dimming modules. Works both with CT-V1 dimming modules and DMX decoders. Can also receive signal from a hand held remote (R1/RU4).
Technical Specifications
General
Model
LM-CT-T11-1
Product type
RF Dimming, DMX512 Control, Lighting Controlls
Compliance summary
CE,EMC,LVD,RED
Warranty
2 Years
Electrical
Input current (AC / DC)
0.1A
Input Voltage (Pri)
220V - 240V AC
Wireless protocol / frequency
RF 2.4Gz
Lighting
Output specification
DMX512 D+ / D- / G
Mechanical
IP rating
IP20
Dimensions (mm)
86x86x48mm
Operating temperature (degrees C)
-30°C ~+55°C
