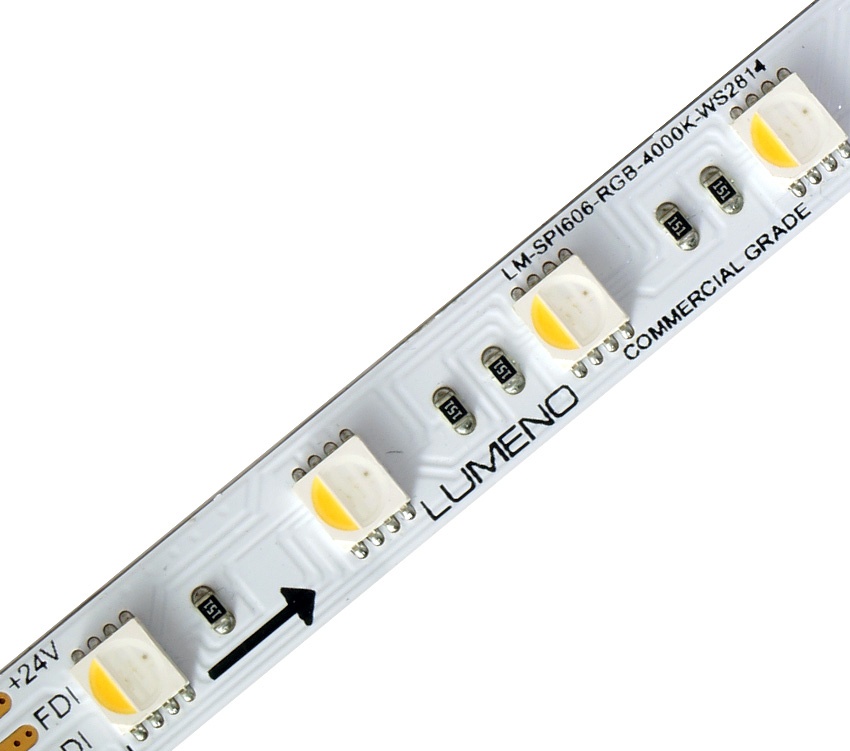

Digital SPI Strip, RGB+4000K, 5m Reel, 16W/M, 24V, WS2814
DATASHEET - Digital Strip 5m
www.lumeno.ie
LM-SPI606RGBW-V0
Digital SPI Strip, RGB+4000K, 5m Reel, 16W/M, 24V, WS2814
No vote
5050 Strip with SPI Digital IC
IC Model : WS2814
5m reel
Requires SPI Controller
The SPI 606 RGBW LED strip light offers vibrant color options with its RGBW (red, green, blue, and white) configuration, allowing for both colorful and pure white lighting effects. It features individually addressable 100mm or 6 LED sections, enabling dynamic light patterns and custom animations for enhanced visual impact. The strip is flexible and can be easily installed in various settings, making it ideal for accent lighting, signage, or creative design projects. With its energy-efficient design, the SPI 606 LED strip provides bright illumination while consuming minimal power. Additionally, it is compatible with various controllers, allowing for easy customization and synchronization with other smart lighting systems.
Technical Specification
Model
LM-SPI606RGBW-V0
Luminare Class
NMDLS
Light Source
LED
Nominal Power
15 Watt
Correlated Colour Temperature (CCT)
RGB-NW
LED Quantity
60 LED / M
LED Type
SMD 5050
Input Voltage (Pri)
24V DC
Min Cut (Circuit)
100mm (3 LED)
Application
Indoor Only
Product finish
White PCB
Lifespan
50Kh
Ingress Protection
IP20
Dimming
SPI
Driver
SPI Controller
Size
5000mmx10mmx2mm
Warranty Period
5 Years
Maximum Length (mm)
5000
Connection Wire
5 Core - 22AWG
Certification
CE/ROHs
Downloads
526101001
SPI Master Controller, 12/24V
LM-CT-SCL
1
SPI Master Controller, 12/24V
526111001
1 Zone SPI Remote contol, 3V Battery, RGBW / SC
LM-CT-R9-SPI
1
1 Zone SPI Remote contol, 3V Battery, RGBW / SC
Results 1 - 2 of 2
