DATASHEET - SPI Master

www.lumeno.ie
LM-CT-SCL

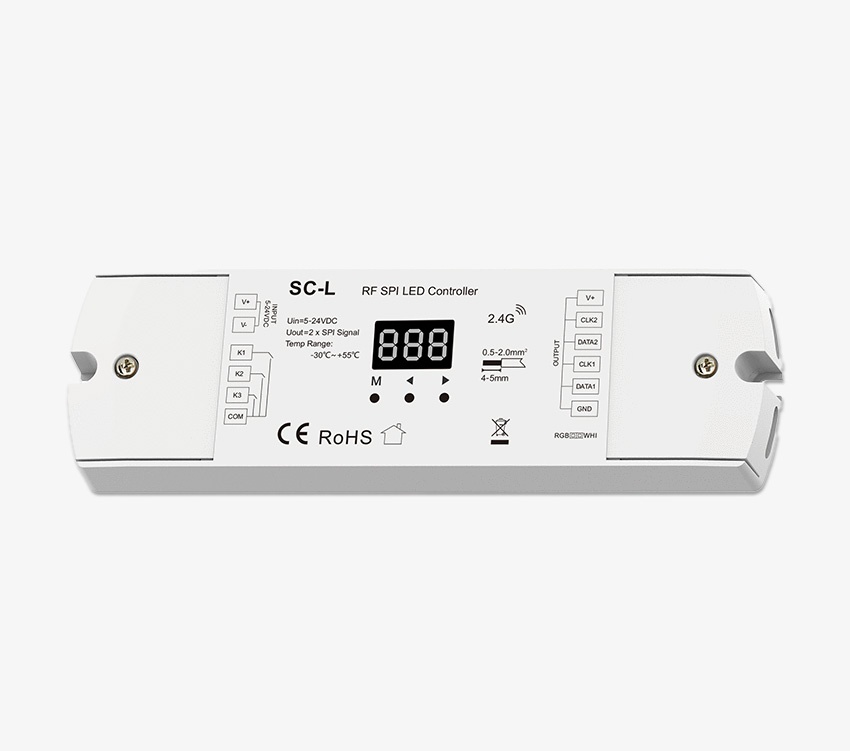

SPI Master Controller, 12/24V

No vote
  • 32 kinds color light, 8 kinds white light
  • Max. 900pixels

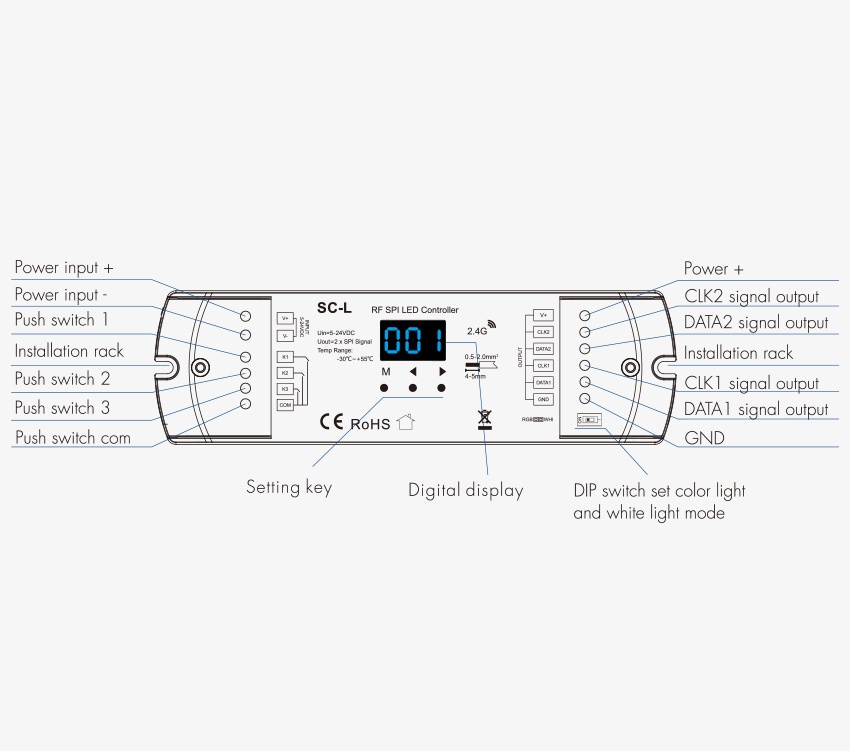

  • RF 2.4G Multi-Pixel RGB/RGBW controller, output two group SPI signals, digital display, 3-button operation.

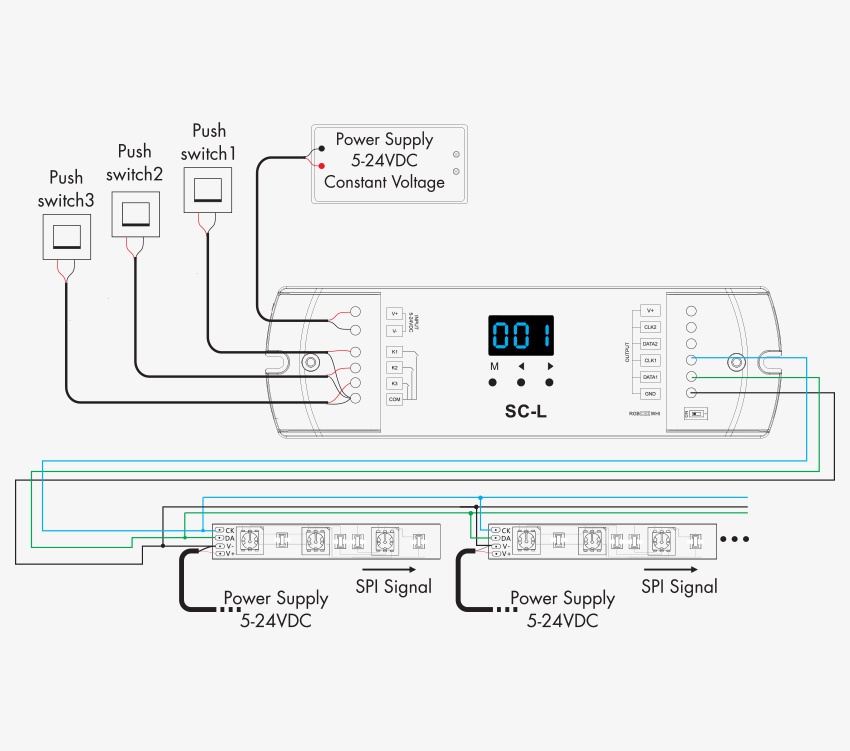

  • Three push switches can be connected for on/off, dynamic change mode and speed selection functions.
  • Match with RF 2.4G remote control optional
SPI Master controller/receiver, works with R9-SPI remote

Technical Specification

ModelLM-CT-SCL
Standby Power 1W
Input Voltage (Pri) 5-24VDC
Wireless signal 2.4Gz
Output SPI(TTL) x 2
Ingress Protection IP20

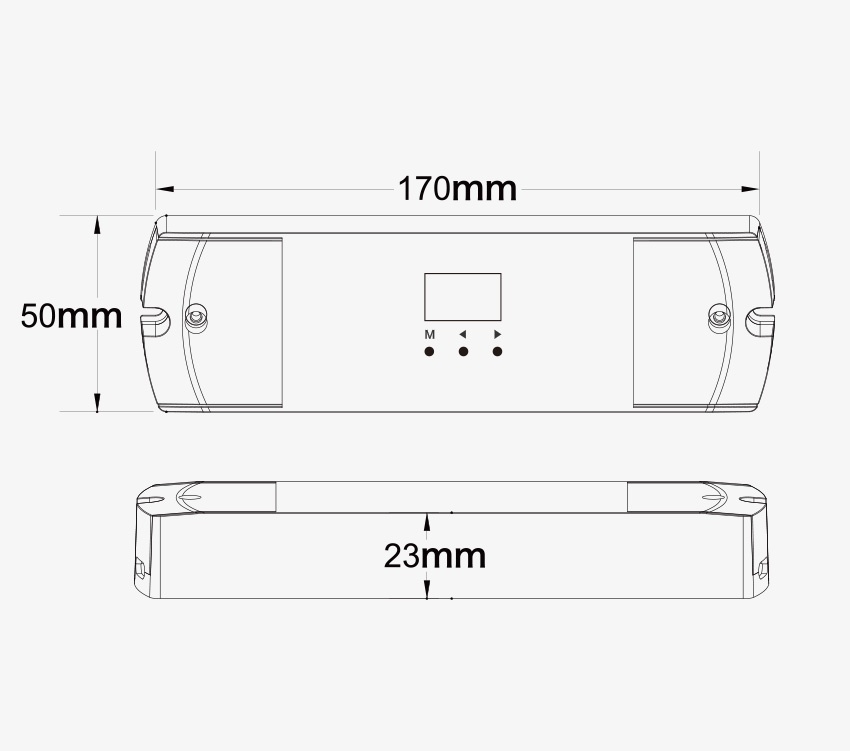

Size 175x54x27mm
Weight 0.122kg
Warranty Period 5 years
AC Current (Ip) 8A
Certification CE,EMC,RED
