LM-FL10SL-V4

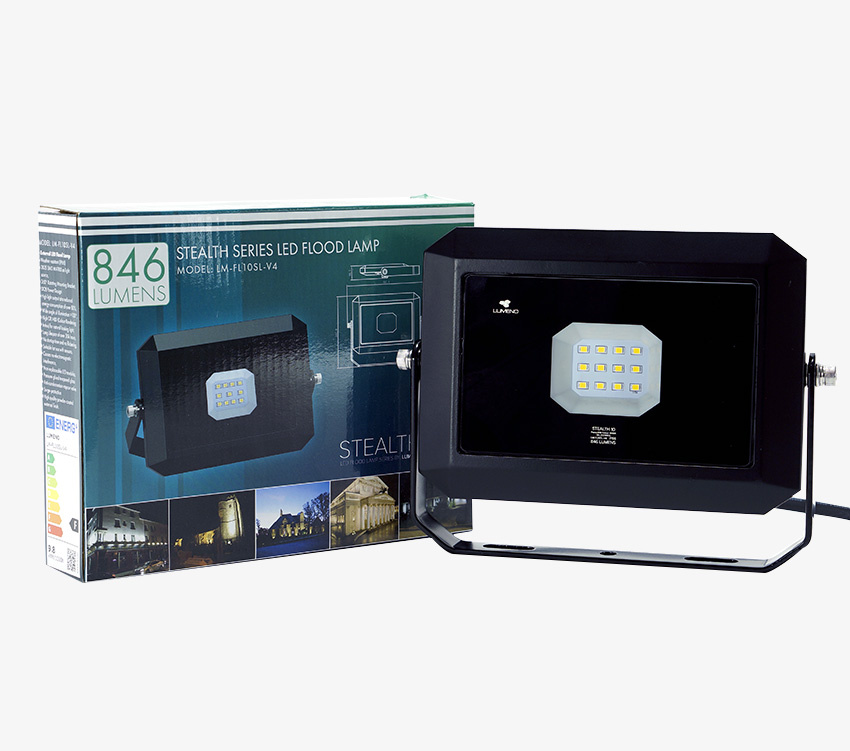

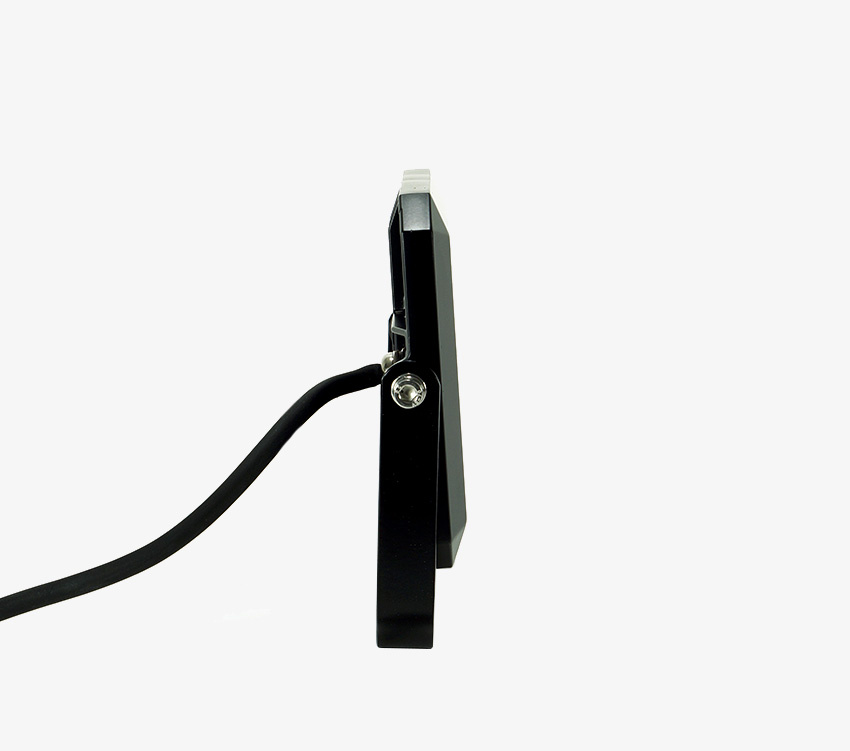

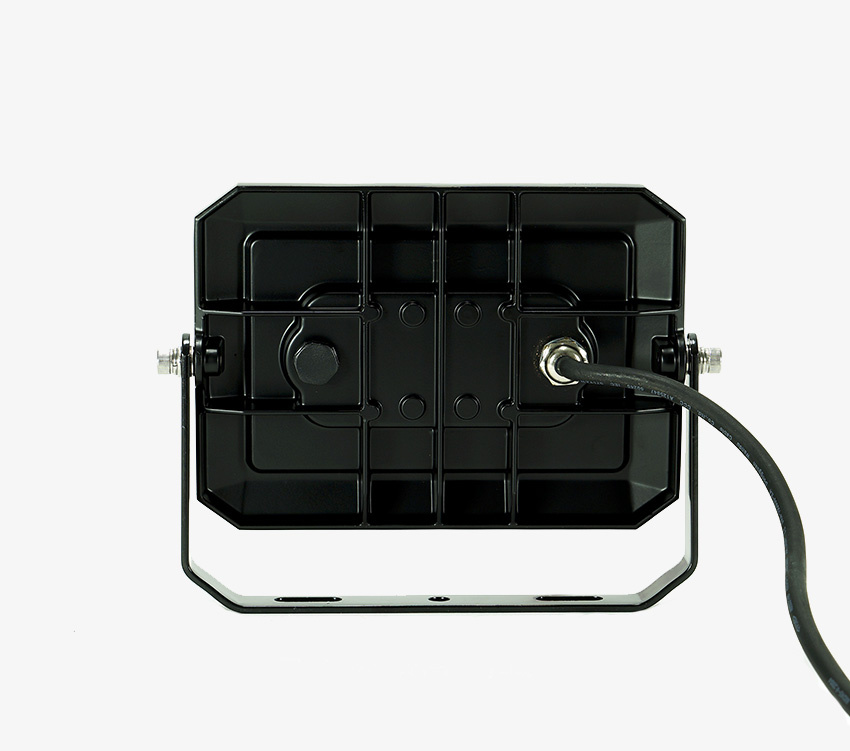

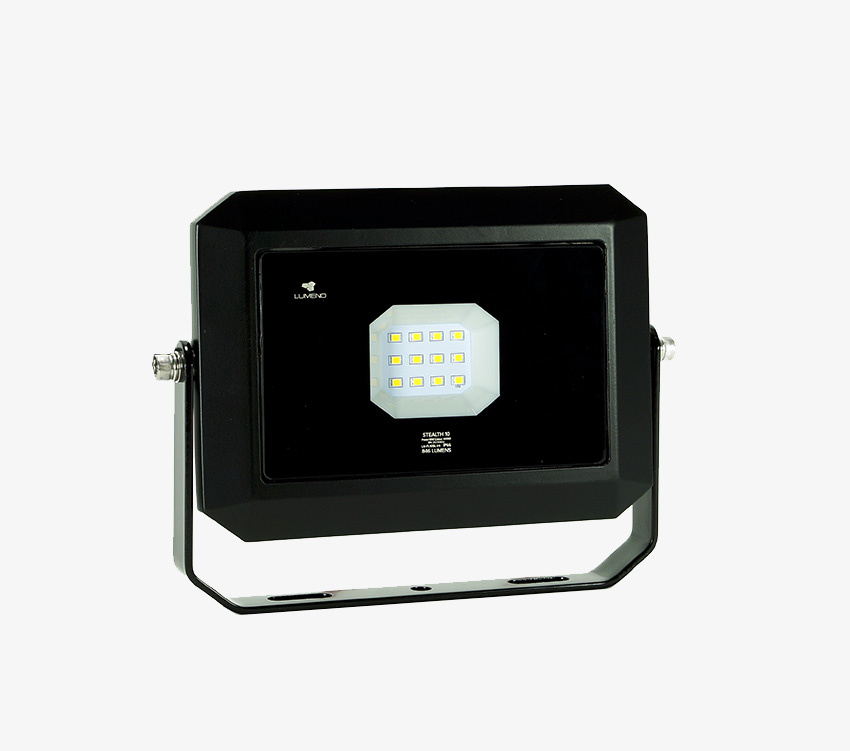

Stealth 10 Flood Lamp - 4500K



F

860LM
  • Vapour Valve
  • Preassure glued glass
  • Strong Bracket
  • 110° Angle of light
  • C4 Paint
  • DOB Design

STEALTH series Lumeno LED floodlights use powerful, Multi-matrix high efficiency integrated EPISTAR 2835 LED as light source. Unique slim-line shells are made of high quality anodized aluminum with powder coated surface and pressure glued tempered glass front. The heat dissipation wing design, compensates heat easily and guaranties lamps long lifespan.

Technical Specifications

Model
LM-FL10SL-V4
Product type
Flood Light
Warranty
3 Years
Product finish
Matt black
Input Voltage (Pri)
220V - 240V AC
Nominal Power
10 Watt
Power factor
0.96
Output specification
12V DC
Luminaire classification
MDLS
Light source
LED
Luminous flux (lm)
860LM
Luminous efficacy (lm/W)
103.25
Colour temperature / colour mode
4500k
Beam angle (degrees)
110°
Available luminous flux
860
IP rating
IP65
Dimensions (mm)
207x157x30mm
Corrosion resistance
C4 Painted
