LM-STC320R-V5

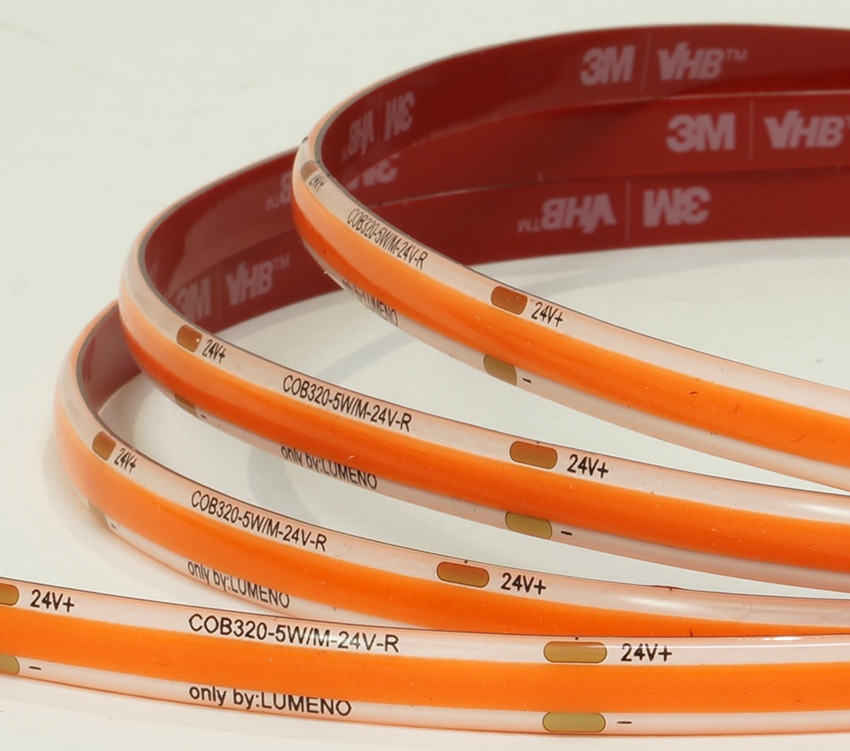

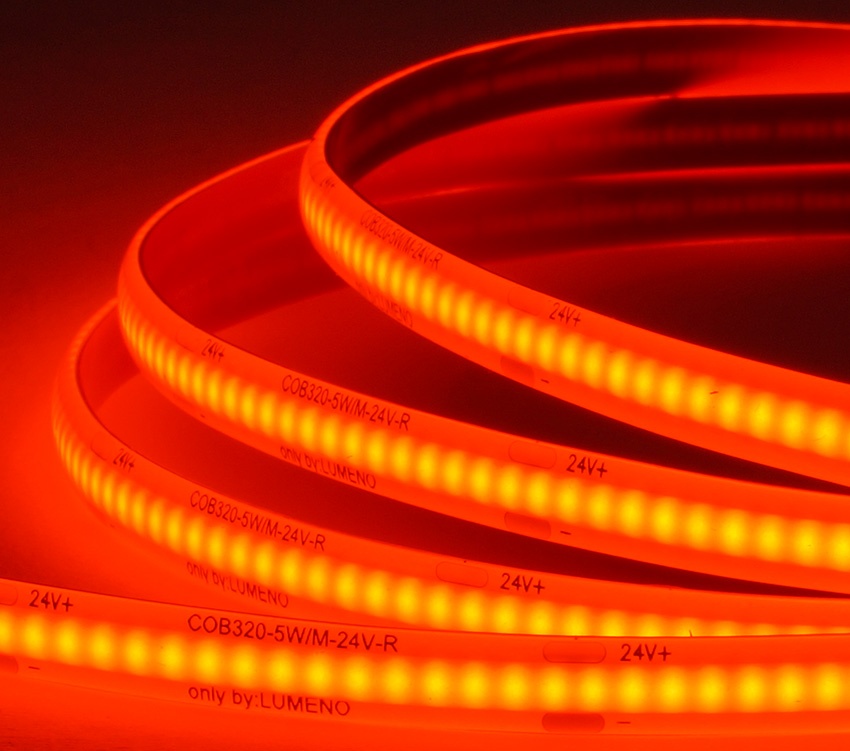

Cob320 Slick Series, 5W/M, 5m Reel, IP55, 24V, Red

No vote
136.14LM
  • COB320 - Dotless Solution
  • 24V DC Input Voltage
  • Minimum Cut : 50mm
  • Efficacy up to 115 LM/W
  • Single bin LED selection to ensure color consistency
  • Fully dimmable with PWM output drivers.
  • Thermally conductive RED 3M VHB adhesive
  • Applications: near reflective surfaces, direct visibility installations
COB320 Slick series represents a cutting-edge advancement in LED lighting technology, adopting luminous silicon design for dotless lighting effect. COB strips deliver higher brightness and improved thermal management compared to traditional LED strips wattage equivalents. With their slick compact form and efficient light output, COB Strip series are ideal for applications requiring high illumination levels and discreet lighting effect.

Technical Specification

ModelLM-STC320R-V5
Luminare Class NMDLS
Light Source LED
Luminous Flux (LM) 136.14LM
Nominal Power 5 Watt
Correlated Colour Temperature (CCT) Red
Colour Rendering Index (CRi) n/a
LED Quantity COB320
LED Type COB320
Input Voltage (Pri) 24V DC
Min Cut (Circuit) 50mm (3 LED)
FPC Size 8mm
Product finish White PCB
Lifespan 50Kh
Ingress Protection IP55
Dimming PMA
Size 5000 x 8mm x 3mm
Warranty Period 3 Years
Maximum Length (mm) 10000
Connection Wire 2 Core - 20AWG
