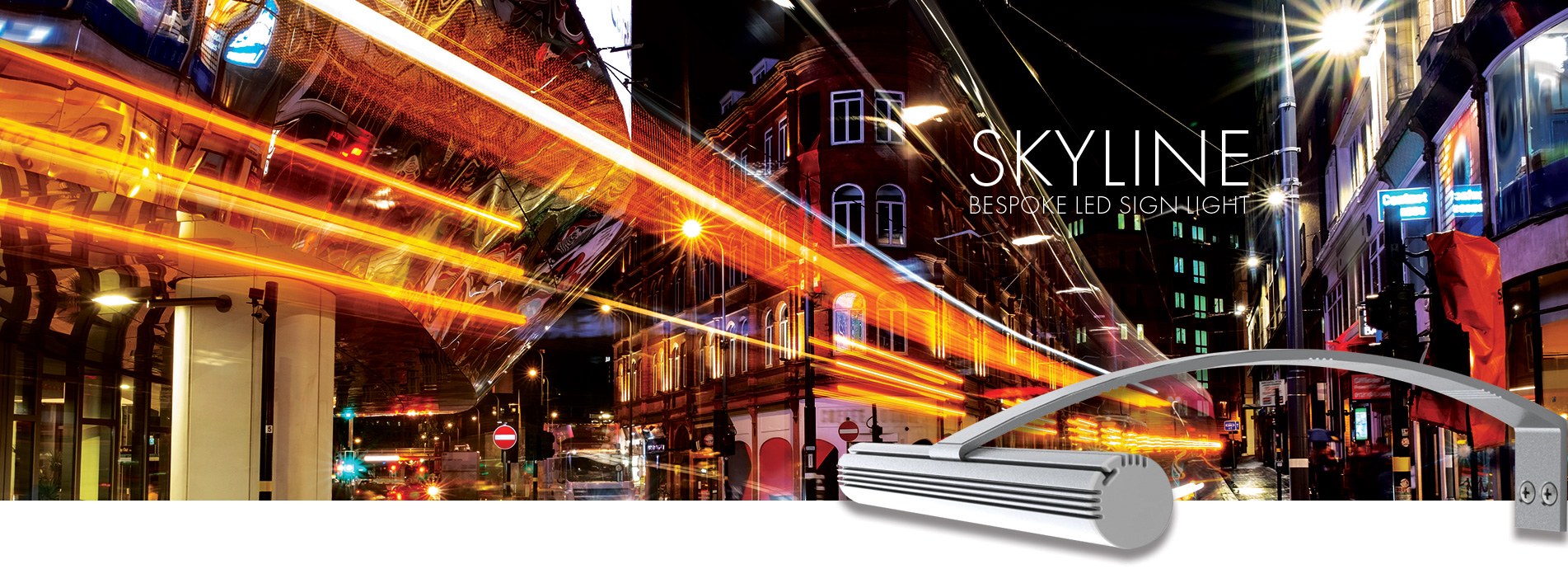

Skyline - bespoke signlight solution

Lumeno SKYLINE is a custom made in-house product designed for various signage applications. Lightweight, slim and inconspicuous aluminium alloy shell combined with IP rated commercial grade strip lights series offers truly versatile solution. Fully customisable in length, brightness, wattage as well as light colour, with specification defined and dictated by custom requirements. Provide us with basic project information i.e. sign’s length, height, preferred light colour and we will spec, price and prep it for you, ready for installation. Each sign application comes with different clients requirements. Whether it’s cool white, warm white or colour changing we’ve got it all covered. In addition to the colour of light, SKYLINE comes with a selection of distinct diffusers and optics to provide needed angle of light or glare.

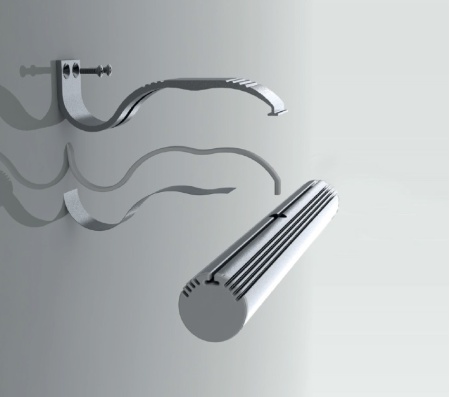

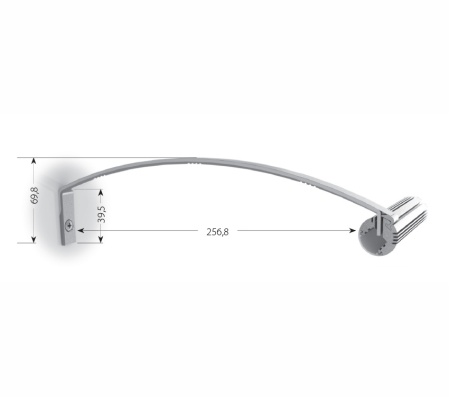

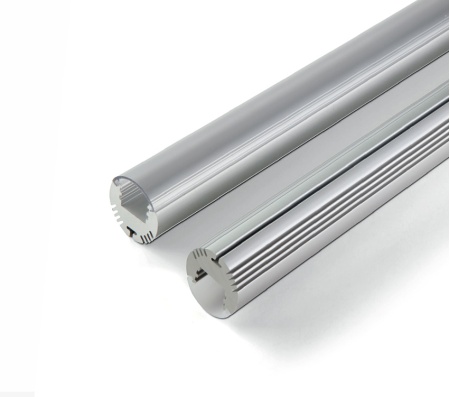

Skyline sign light is made out of round aluminium extrusion LM-AL-RO which is supplied in two meter length bars, paired with your selection of diffuser. In order to extend over 2 meters, a linear joiner is supplied to hold individual pieces and make it into one. Wall mounting is made using ARM bracket that holds the light 250mm away from the wall at a perfect 45° angle to provide best lighting effect.

Signlight Length Number of Lenghts (2m) Brackets Required Linear Joiners Required Power Supply Required End Caps Required
1000mm 1 2 0 LM-PS24V60WP-SL 2
2000mm 1 3-4 0
3000mm 2 5 1
4000mm 2 6 1 LM-PS24V100WP-SL
5000mm 3 7-8 2
6000mm 3 9 2
7000mm 4 11 3 LM-PS24V150WP-SL
8000mm 4 12 3
9000mm 5 14 4
10000mm 5 15 4 LM-PS24V200WP-SL
11000mm 6 17 5
12000mm 6 18 5
13000mm 7 20 6 LM-PS24V250WP-SL
14000mm 7 21 6
15000mm 8 23 7

Filters

Code
Details
Quick View
Stock
Box Qty
Price
Options
2700K
2182322M7

SHP120 LED Strip, 5Oz PCB, 14.4W, IP67, 24V, 2700K, p/m,

LM-SHP120WW-M7
SHP120 LED Strip, 5Oz PCB, 14.4W, IP67, 24V, 2700K, p/m,
4000K
2182324M7

SHP120 LED Strip, 5Oz PCB, 14.4W, IP67, 24V, 4000K, p/m,

LM-SHP120NW-M7
SHP120 LED Strip, 5Oz PCB, 14.4W, IP67, 24V, 4000K, p/m,
226AA2501

Skyline Base Aluminium profile - 2mt

LM-AL-RO-2M
Skyline Base Aluminium profile - 2mt
226AA2501

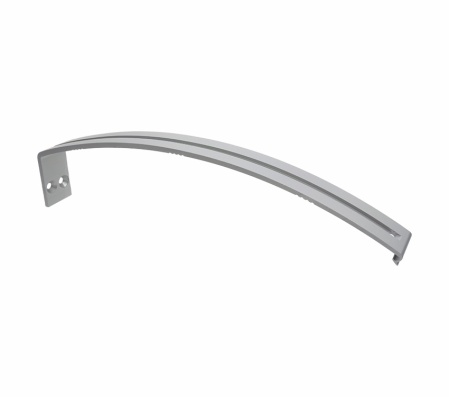

Skyline Long bracket - 250mm

LM-MC-RO-AA
Skyline Long bracket - 250mm

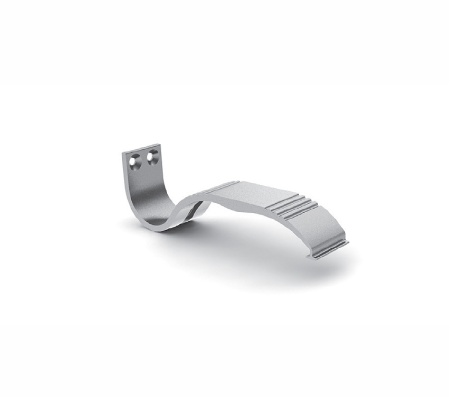

226BWA001

Skyline Short bracket - 100mm

LM-MC-RO-WA
Skyline Short bracket - 100mm

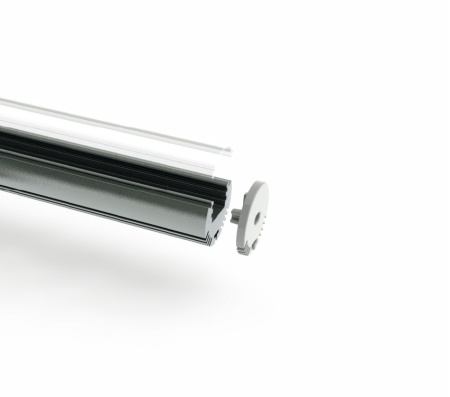

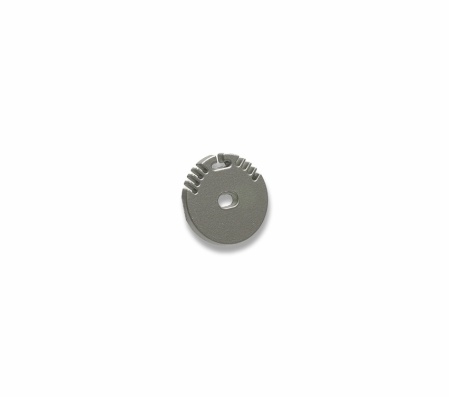

226ECR101

End cap for Skyline 28 series profile

LM-AL-EC-RO
End cap for Skyline 28 series profile

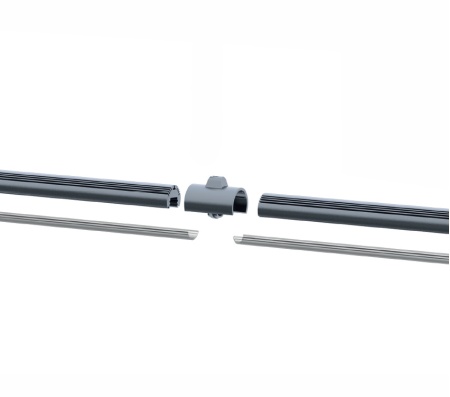

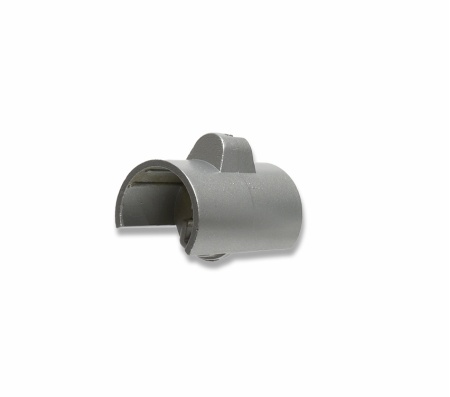

226LC0001

Skyline linear joiner

LM-LC-RO
Skyline linear joiner

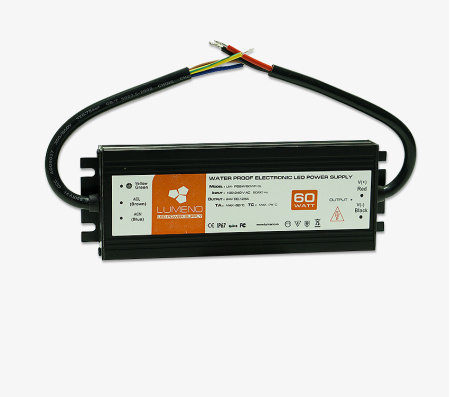

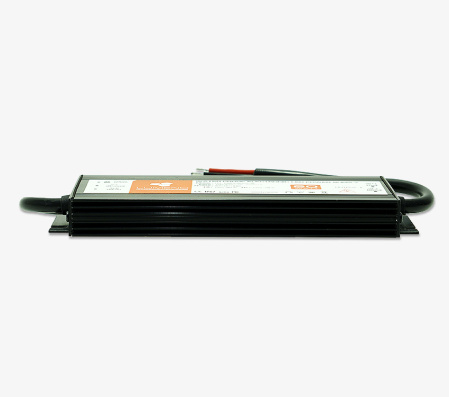

512206001

24V 60W, 2.5A, Power Supply, IP67

LM-PS24V60WP-SL
24V 60W, 2.5A, Power Supply, IP67

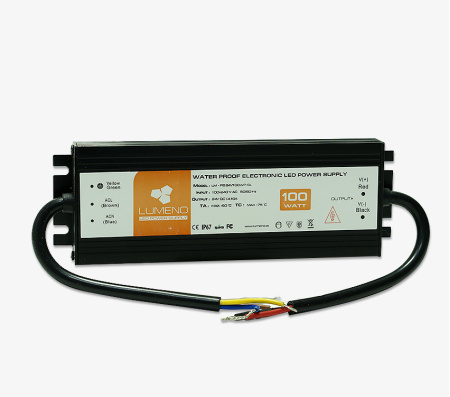

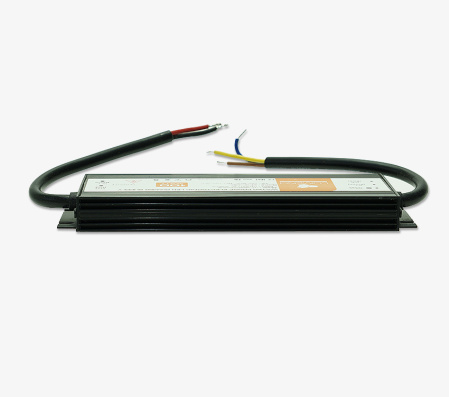

512210001

24V 100W, 4.16A, Power Supply, IP76

LM-PS24V100WP-SL
24V 100W, 4.16A, Power Supply, IP76

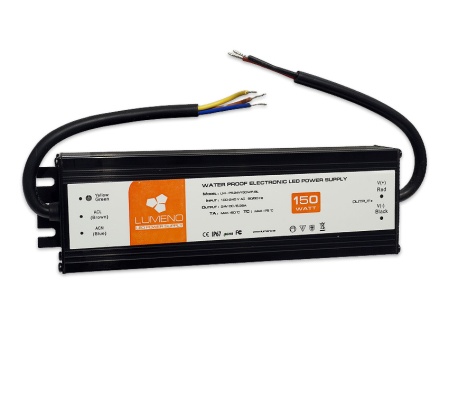

512215001

24V 150W, 6.25A, Power Supply, IP67

LM-PS24V150WP-SL
24V 150W, 6.25A, Power Supply, IP67

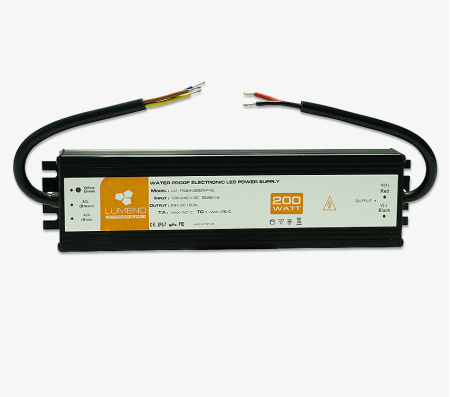

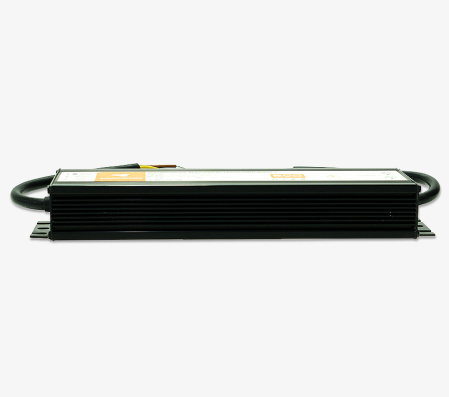

512220001

24V 200W, 8.33A, Power Supply, IP67

LM-PS24V200WP-SL
24V 200W, 8.33A, Power Supply, IP67

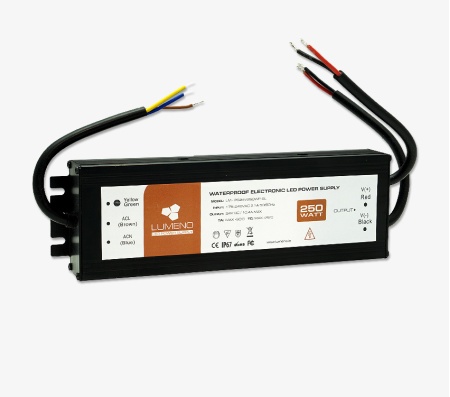

512225001

24V 250W, 10.4A, Power Supply, IP67,

LM-PS24V250WP-SL
1
24V 250W, 10.4A, Power Supply, IP67,
Results 1 - 12 of 12
