DATASHEET - 8W Tweak II Downlight, Fire-proof, Reflector, 115mm/95mm, UGR19

www.lumeno.ie
rdf08u-1

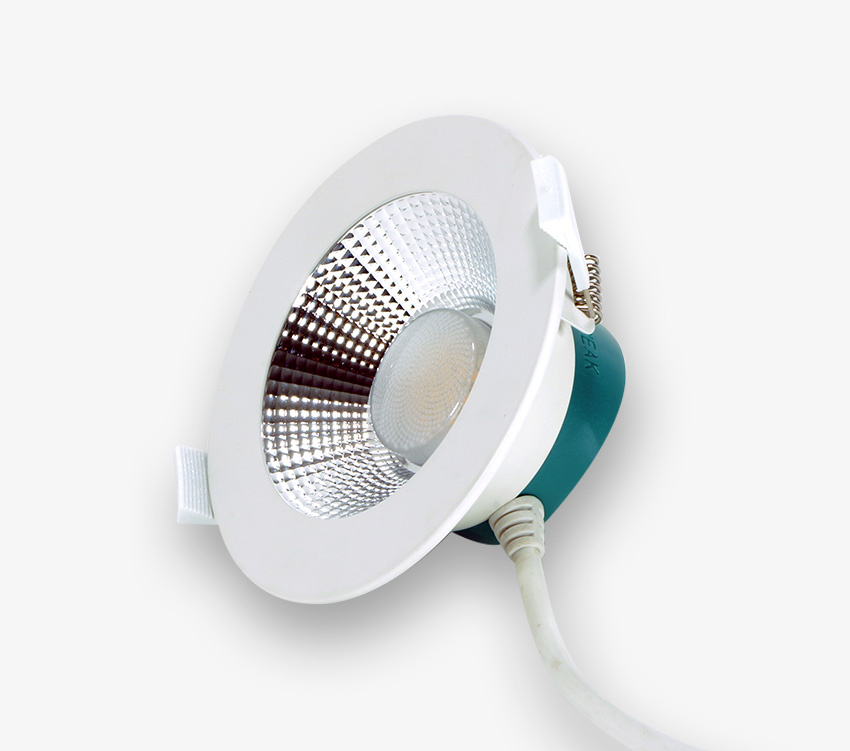

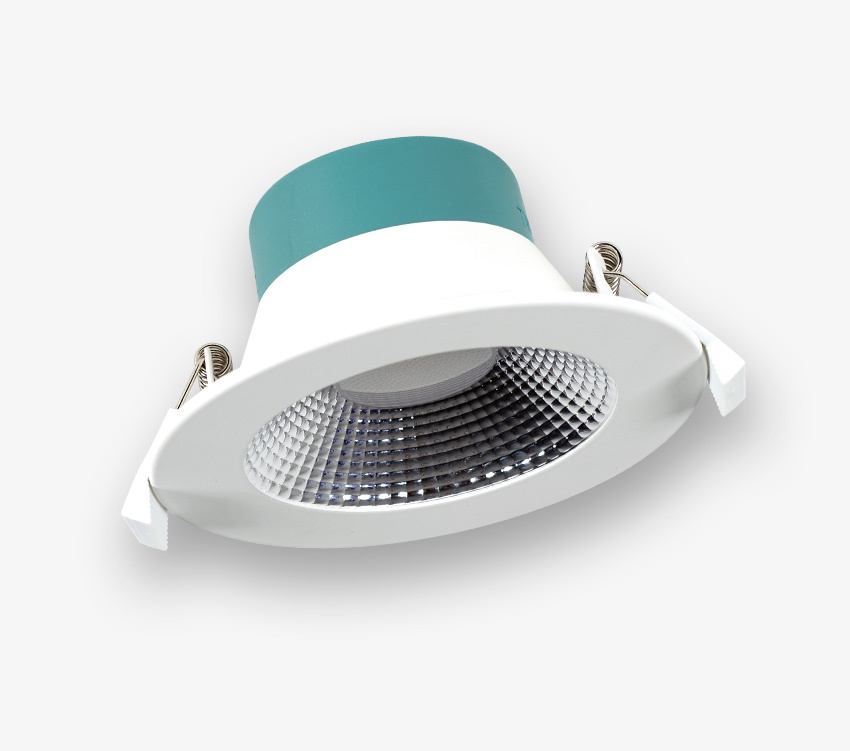

rdf08u-1rdf08u-2Tweak 08F Fireproof LED Downlight, CCT, UGR
LM-RDT08FR

Tweak 08F Fireproof LED Downlight, CCT, UGR

No vote


E

790LM
  • Fire Rate 30/60/93
  • CCT Selectable Downlight
  • Dimmable with trailing-edge dimmers
  • IP44 ingress protection

Fire rated version of Tweak downlights. CCT Selectable recessed downlight dimmable with universal dimmer types. Recessed light source with reflector.

Technical Specification

ModelLM-RDT08FR
Luminare Class MDLS
Light Source LED
Luminous Flux (LM) 790LM
Luminaire efficacy 109
Nominal Power 8 Watt
Colour Rendering Index (CRi) >RA85
Input Voltage (Pri) 220V - 240V AC
Output 12V DC
Light Angle (°) >100°
Product finish White
Lifespan 30000h
Ingress Protection IP44
Dimming Phase-cut
Size Ø115 x 66mm
Cutout size(Ø) Ø 95 mm
Accessories 2x 3-wire wago Joiners,
Warranty Period 3 Years
