LM-RBM16CCT

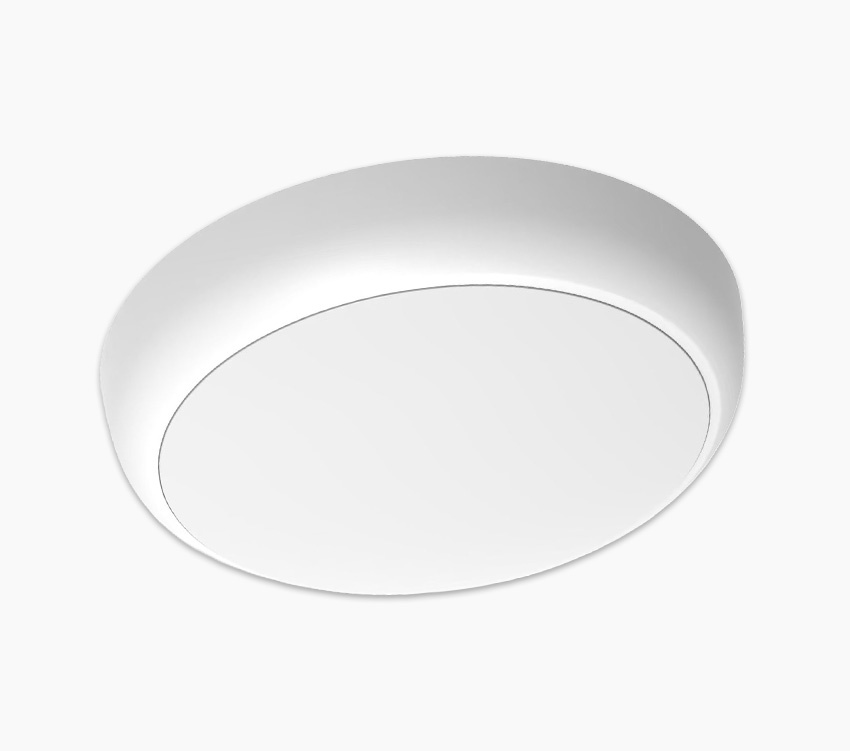

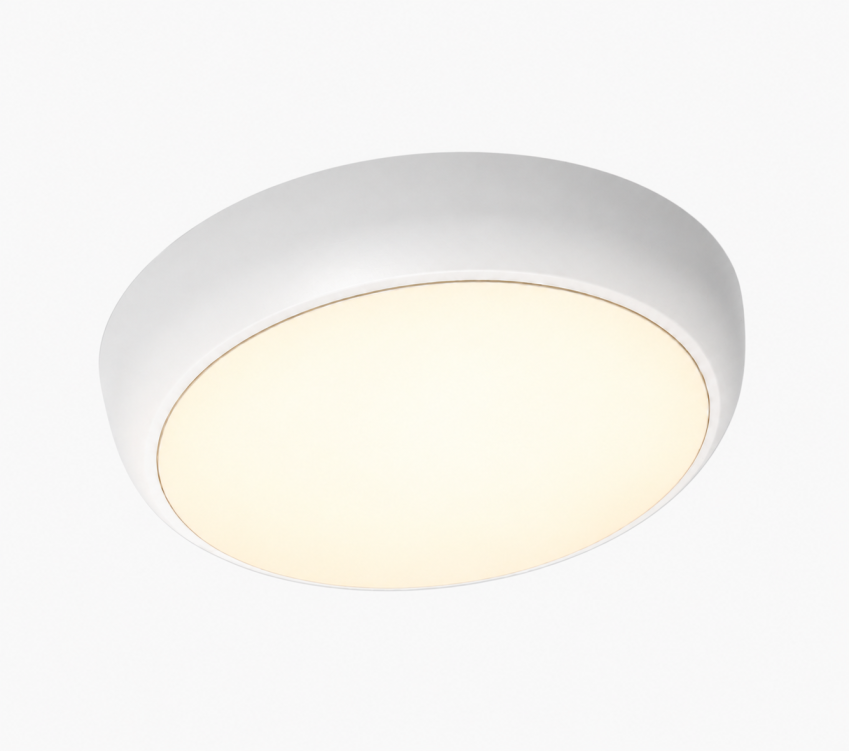

Round Bulkhead Mara, 8-16W, 3CCT, IP65



E

2200LM
  • Wattage selectable 8W/11W/13W/16W
  • CCT selectable 3000K/4000K/6000k
  • Uniform PC opal diffuser
  • Optional microwave sensor & 3h emergency
  • Multiple M20 Entry holes

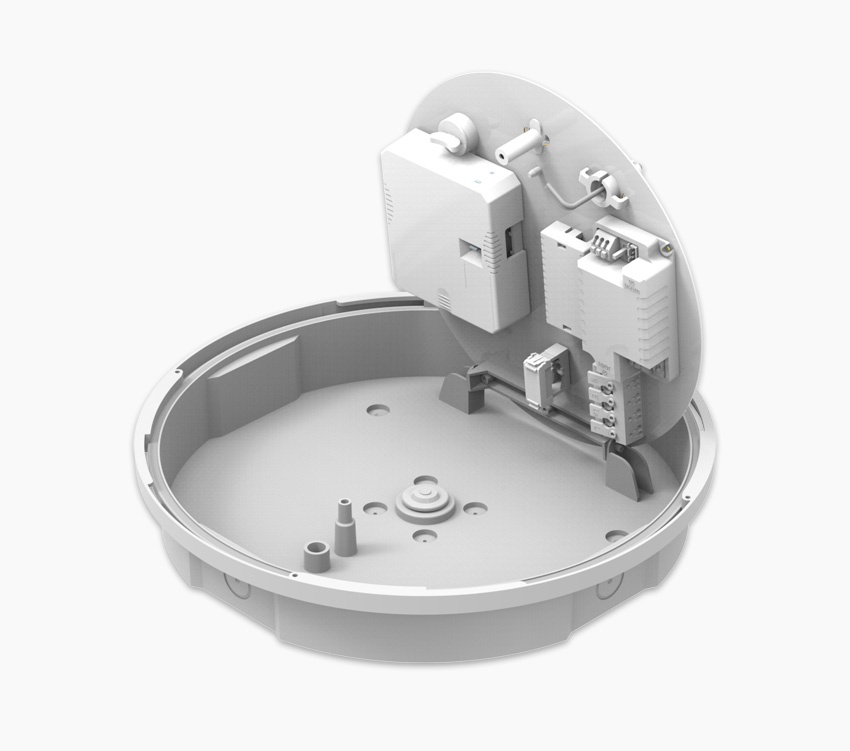

MARA is a versatile surface-mounted LED bulkhead designed for general lighting across residential and commercial applications. Its wattage and CCT selectable design provides flexibility to tailor light output and colour temperature to suit each installation. A clean, low-profile structure combined with optional microwave sensor and EM3 emergency configurations makes MARA suitable for corridors, stairways, utility areas, car parks and other public access spaces.

Technical Specifications

Model
LM-RBM16CCT
Product type
Surface Light
Application
Indoor/Outdoor
Certification
CE RoHS, REACH, Class II
Warranty Period
3 Years
Accessories
Optional EM3 pack , microwave sensor
Product finish
White
Input Voltage (Pri)
220V - 240V AC
Nominal Power
16 Watt
Power Factor
0.9
Luminare Class
MDLS
Light Source
LED
LED Type
SMD 2835
Luminous Flux (LM)
2200LM
Luminaire efficacy
127LM/W
Colour Rendering Index (CRi)
>RA85
Correlated Colour Temperature (CCT)
CCT
Light Angle (°)
120°
Lifespan
50k Hours
Ingress Protection
IP65
IK Rating
IK07
Size
Ø312x81mm
Weight
740g

Downloads & Resources

Technical documents and support files for LM-RBM16CCT

Print-friendly layout
Press CTRL+P to save as pdf.
Datasheet FILE  ·  Downloadable PDF file
Download
