Triac Dimmable CC Driver, 28-45W, 700-1070mA
DATASHEET - Constant current driver
www.lumeno.ie

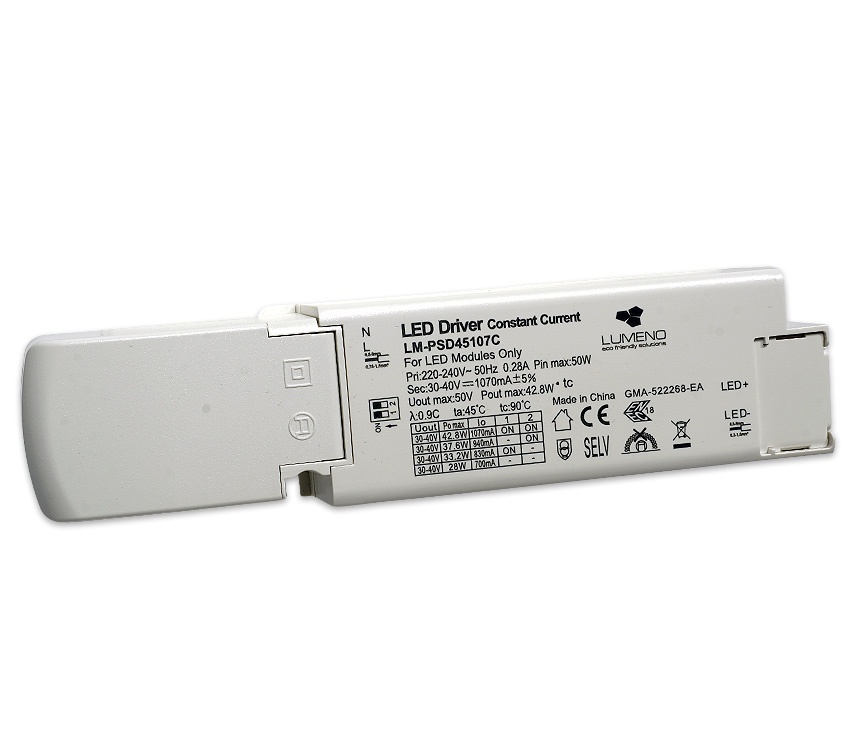

LM-PSD45107C
Triac Dimmable CC Driver, 28-45W, 700-1070mA
Constant current output
Triac/phase cut dimming
Plastic body
Use with LM-DM200R Dimmer
Selectable : 28-45W CC, 700-1070mA
Universal constant current dimmable driver. Can be used with variaty of CC luminares.
Technical Specifications
General
Model
LM-PSD45107C
Product type
Driver(CC), Triac Dimmable
Application
Indoor Only
Compliance summary
CE ROHS Certified
Warranty
2 Year
Electrical
Input Voltage (Pri)
220V - 240V AC
Nominal Power
45 Watt
Rated output power (W)
28-45 Watt
Rated output current (A / mA)
700-1070mA
Dimming / control type
Triac dimmable
Power factor
0.95
Controller type
Dimmer
Lighting
Output specification
24-48VDC
Mechanical
IP rating
IP20
Dimensions (mm)
168 x 48.7 x 30.5mm
Weight
220g
