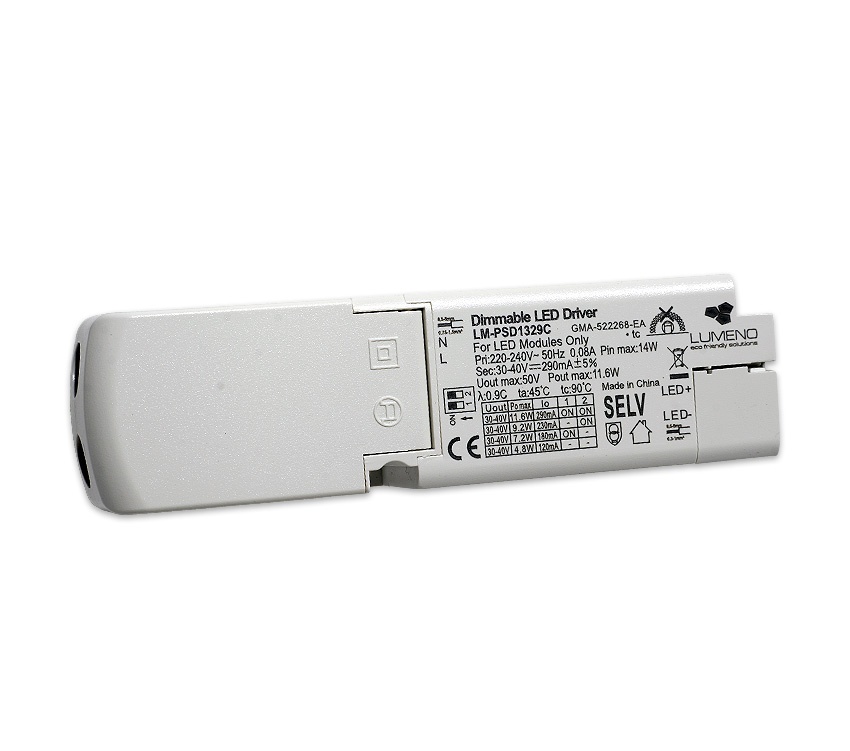

Triac Dimmable CC Driver, 4.9-13W CC, 120-290mA
DATASHEET - Constant current driver
www.lumeno.ie
LM-PSD1329C
Triac Dimmable CC Driver, 4.9-13W CC, 120-290mA
Constant current output
Triac/phase cut dimming
Plastic body
Use with LM-DM200R Dimmer
Selectable : 4.9-13W CC, 120-290mA
Universal constant current dimmable driver. Can be used with variaty of CC luminares.
Technical Specifications
General
Model
LM-PSD1329C
Product type
Driver(CC), Triac Dimmable
Application
Indoor Only
Compliance summary
CE ROHS Certified
Warranty
2 Year
Electrical
Input Voltage (Pri)
220V - 240V AC
Nominal Power
12 Watt
Rated output power (W)
4.9-13 Watt
Rated output current (A / mA)
120-290mA
Dimming / control type
Triac dimmable
Power factor
0.95
Controller type
Dimmer
Lighting
Output specification
24-48VDC
Mechanical
IP rating
IP20
Dimensions (mm)
126 x 43 x 30.5mm
Weight
102g
