LM-CT-DTB

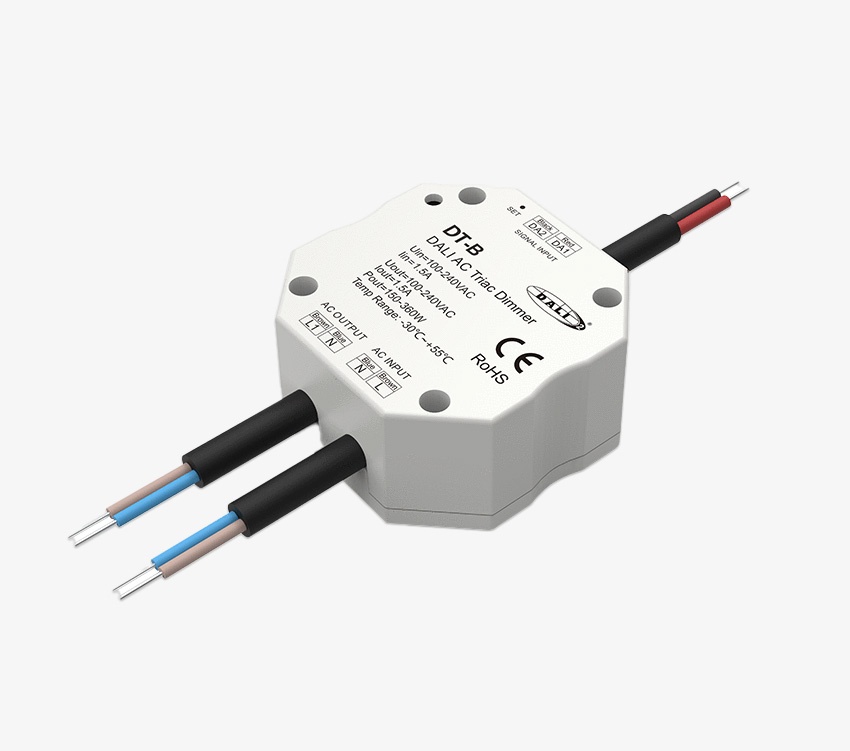

1CH DALI AC Triac dimmer, 360W (DT4)
- AC phase-cut mosfet DALI dimmer, one DALI address, one channel output.
- Trailing edge dimmer
- The minimum brightness is adjustable.

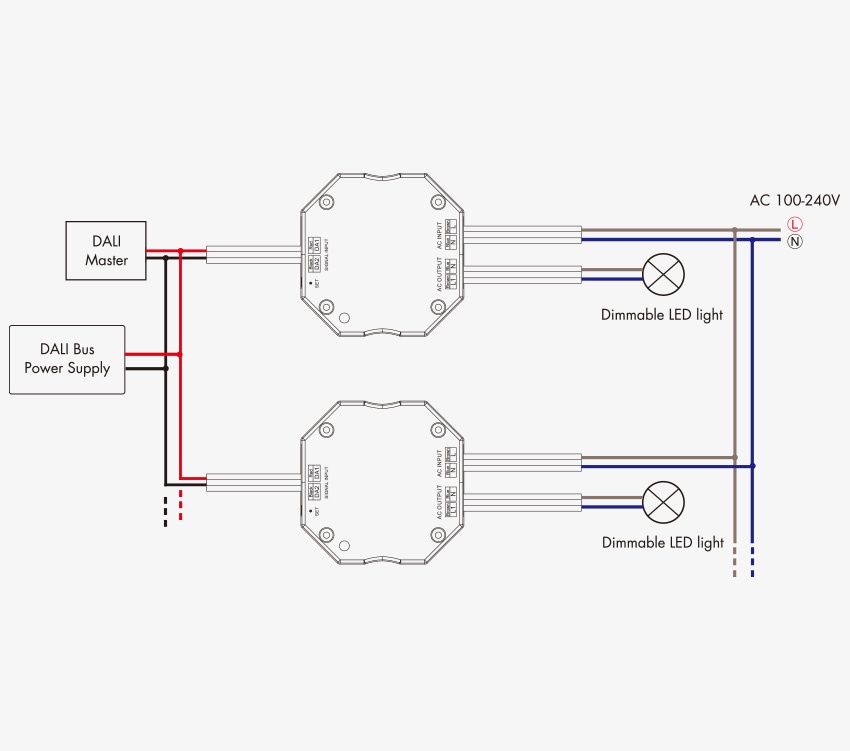

- DALI address can be automatically assigned by DALI master.

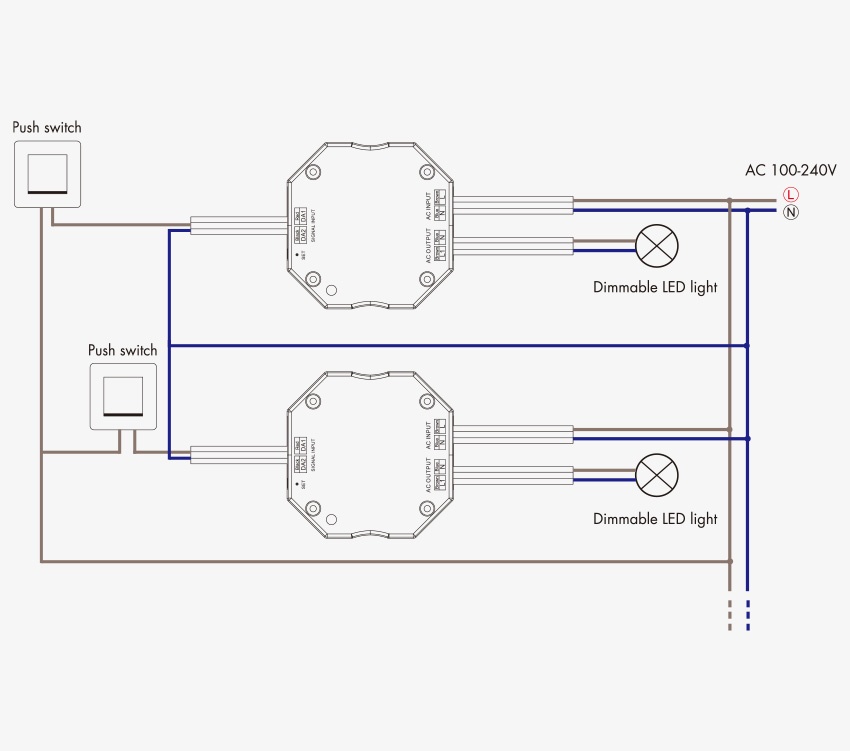

- Connect with external push switch to achieve on/off and 0-100% dimming function.
- To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights
Dali Inline AC Triac Dimmer, 1.5A,
Technical Specification |
| Model | LM-CT-DTB |
|
Input Voltage (Pri)
|
110V - 240V AC
|
|
Output
|
110V - 240V AC
|
|
Output Power (P)
|
150-360W
|
|
Current Output (Io)
|
Max: 1.5A
|
|
Application
|
Indoor Only
|
|
Ingress Protection
|
IP20
|
|
Size
|
75x75x40mm
|
|
Weight
|
0.096kg
|
|
Working Temperature
|
-30°C ~ +55°C
|
|
Protection
|
Over-heat,Over-load
|
|
Certification
|
CE, EMC, LVD, RED
|
|
Warranty Period
|
5 Years
|
