STQ60 Standard LED Strip, 4.8W/METER, 5M REEL, IP55, BLUE
DATASHEET
www.lumeno.ie
LM-STQ3528WP-60-B
STQ60 Standard LED Strip, 4.8W/METER, 5M REEL, IP55, BLUE
G
180LM
60 LED - 3528 SMD PER/MT
CRI>90, NATURAL LOOKING COLOURS
EASY TO CUT, REJOIN WITH CRIMPS OR SOLDER
PU/SILICON COATED
IP55 FOR INDOOR USE
SELF-ADHESIVE BACK - RED 3M TAPE
Standard series Deep Blue LED Strip for commercial and residencial use. 5m reel complete with connectors and manual. IP55 PU/Silicon coated for extra protection.
Technical Specifications
General
Model
LM-STQ3528WP-60-B
Product type
Flexible Strip
Application
Indoor Only
Certification
CE/ROHs
Warranty Period
3 Years
Product finish
White PCB
Electrical
Input Voltage (Pri)
12V DC
Nominal Power
4.8 Watt
Driver
*LM-PS12V35PC
Dimming
PMA
Connection Wire
2 Core - 20AWG
Lighting
Luminare Class
NMDLS
Light Source
LED
Luminous Flux (LM)
180LM
Luminaire efficacy
37LM/W
Correlated Colour Temperature (CCT)
Blue
Mechanical
Maximum Length (mm)
5000
Lifespan
50k Hours
Ingress Protection
IP55
Size
5000 x 8mm x 3mm
Related Products & Addons
511103001
12V 35W, Power Supply, n/d, plastic, terminals

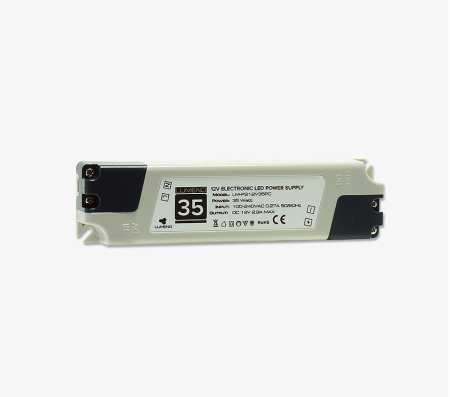

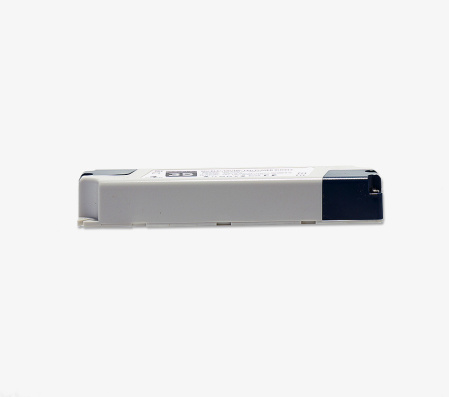

LM-PS12V35PC
