dm200r-1
LM-DM200R

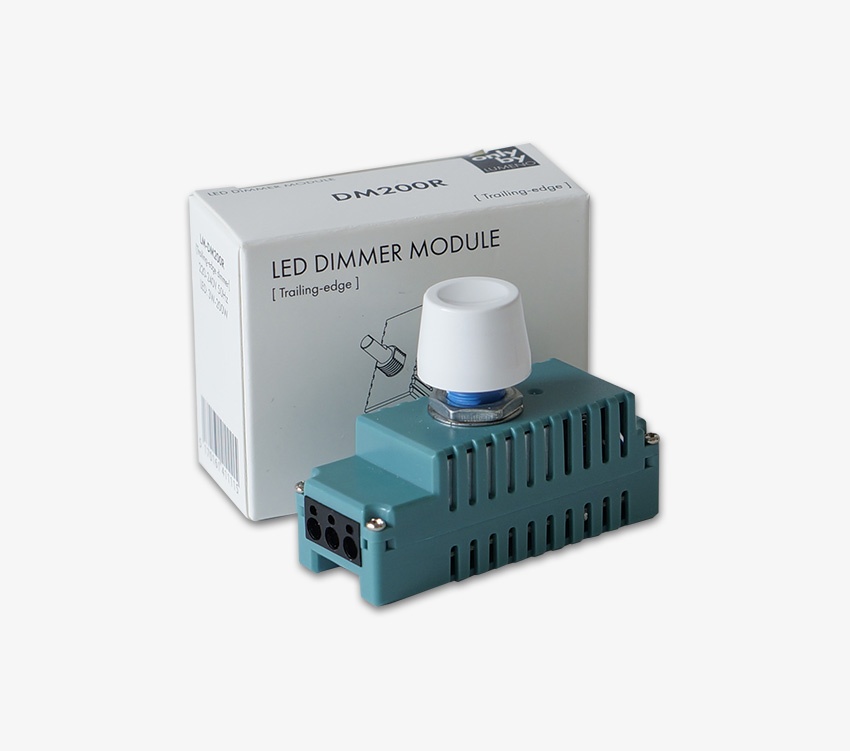

Rotary dimmer switch module, 200W LED, phase cut dimming

No vote
  • Minimum load: 3W(LED)
  • Constant current dimmer
  • Perfect dimming up-to 25 lights
  • Min brightness setting with a plastic cap
  • Digital rotary dimming

DM200R is a digital rotary dimmer switch for Irish and UK standard installations. Supplied as a module only. This dimmer has been designed and adjusted to work with Lumeno dimmable lights and LED drivers. It provides up-to 200W diming capacity depending on devices PF and in-rush current. DM200R provides stable, silent and smooth dimming of Lumeno brand constant current product range.

Technical Specification

ModelLM-DM200R
Input Voltage (Pri) 220V - 240V AC
Output (Vo) 110V - 240V AC
Output Power (P) 200W
Ingress Protection IP20
Size 60x23.5x45mm
Warranty Period 2 Years
Working Temperature 0℃ - 35℃
Certification CE ROHS Certified
