LM-STX120PRO-NW

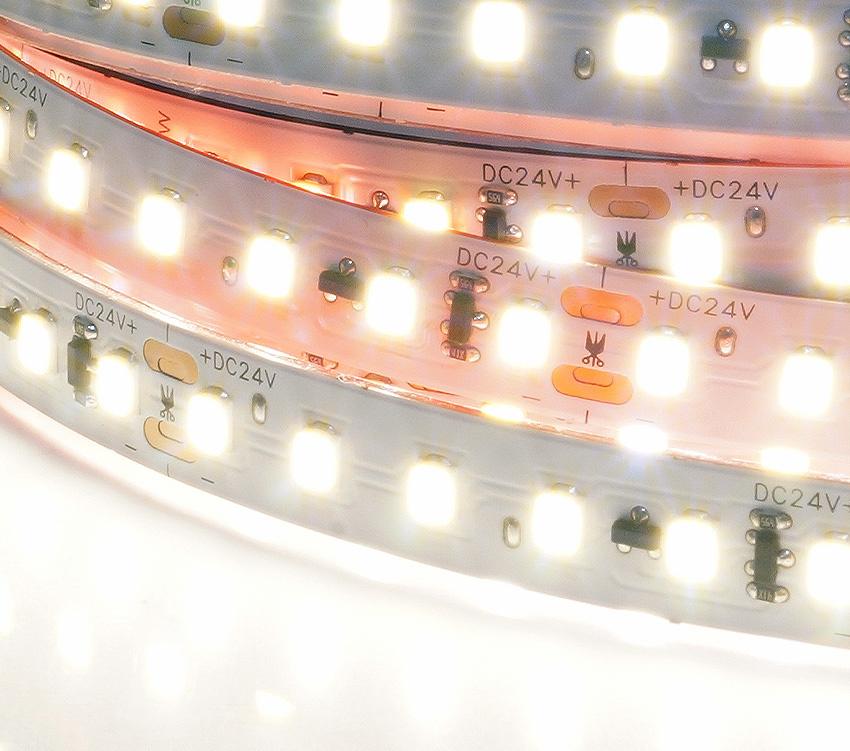

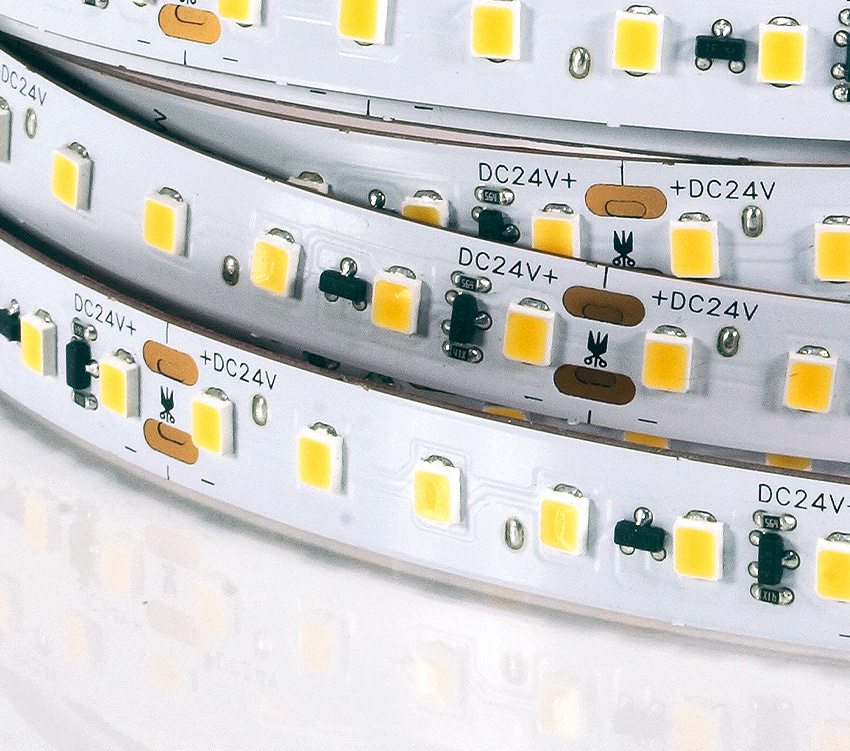

STX120PRO Series,9.6W/M, CC LED Strip, IP20, 24V, 4000K

1100LM
  • Constant Current LED Strip
  • Solution for Long runs of up-to 20M on one PSU
  • No voltage-drops or light decay
  • Low operating temperatures
  • Custom cuts
  • Self-adhesive back - RED 3M tape

Lumeno designed Constant current high output LED strip for extra long runs of up-to 20m with single power point. No voltage drops. Standarized Natural White 4000K for general commercial applications.

Technical Specifications

Model
LM-STX120PRO-NW
Product type
Flexible Strip
Warranty Period
10
Input Voltage (Pri)
24V DC
Nominal Power
9.6 Watt
Connection Wire
2 Core - 20AWG
LED Type
SMD 2835
Luminous Flux (LM)
1100LM
Colour Rendering Index (CRi)
>90
Correlated Colour Temperature (CCT)
4000K
LED Quantity
120LED / M
Maximum Length (mm)
20000
Ingress Protection
IP20

Downloads & Resources

Technical documents and support files for LM-STX120PRO-NW

Print-friendly layout
Press CTRL+P to save as pdf.
Datasheet [pdf] FILE  ·  Downloadable PDF file
Download
CE [pdf] FILE  ·  Downloadable PDF file
Download
