LM-STC504-CW

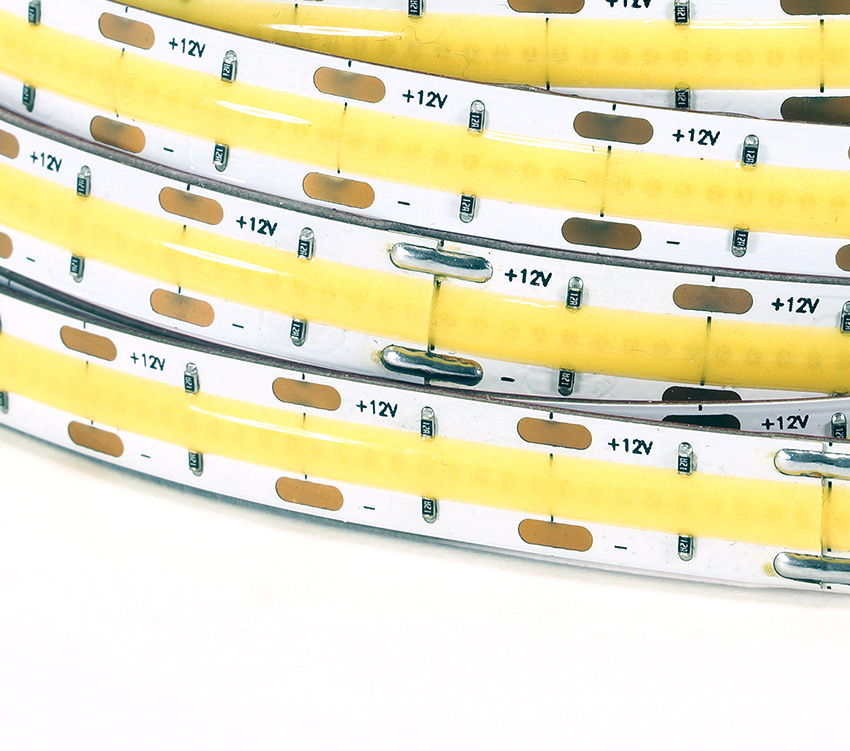

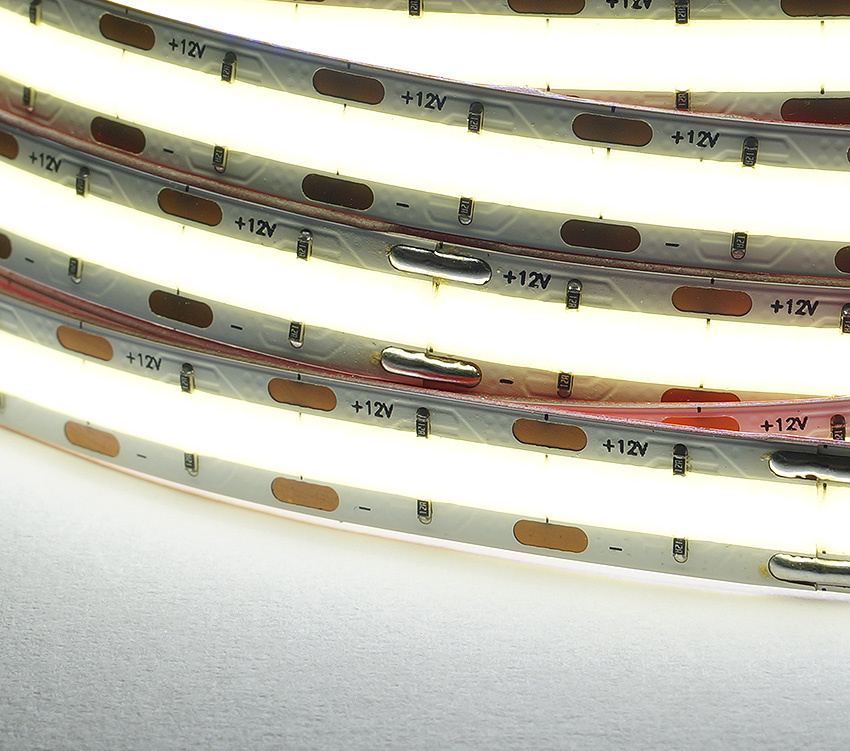

COB LED Strip, 504 chips/m,12V,10W,18mm cut,10mm FPC, 6000K

832LM
  • Extra small cutting sections 20mm
  • COB LED, 504 LEDS Coated
  • 12V DC, 10 Watt / m
  • Custom cuts
  • Non-Waterproof IP20 for indoor only
  • Self-adhesive back - RED 3M tape

COB Solution. 504 small LED chips per meter coated with light enhancing plastic. No-dot solution for exposed areas. Cold White 6000K for general applications.

Technical Specifications

Model
LM-STC504-CW
Product type
Flexible Strip
Warranty Period
5 Year
Input Voltage (Pri)
12V DC
Nominal Power
10 Watt
Connection Wire
2 Core - 20AWG
Output
12V DC
LED Type
COB
Luminous Flux (LM)
832LM
Colour Rendering Index (CRi)
>90
Correlated Colour Temperature (CCT)
6000K
LED Quantity
504LED / M
Maximum Length (mm)
5000
Ingress Protection
IP20

Downloads & Resources

Technical documents and support files for LM-STC504-CW

Print-friendly layout
Press CTRL+P to save as pdf.
Datasheet [pdf] FILE  ·  Downloadable PDF file
Download
CE [pdf] FILE  ·  Downloadable PDF file
Download
