DATASHEET - STQ60 IP55 - Golden Amber

www.lumeno.ie
stq60r5a-2
stq60r5a-2stq60r5a-1
LM-STQ3528WP-60-A

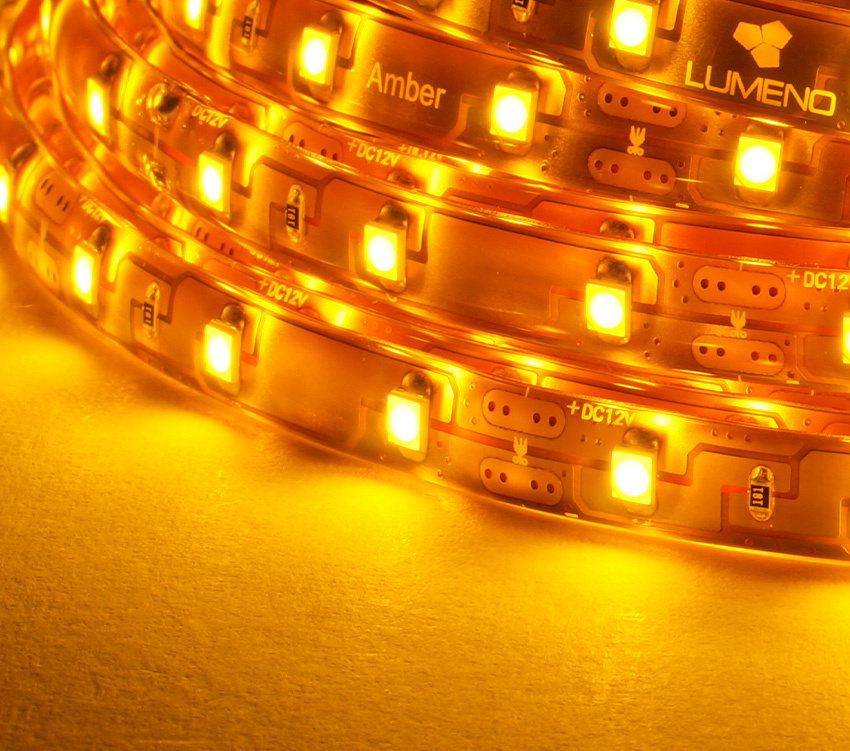

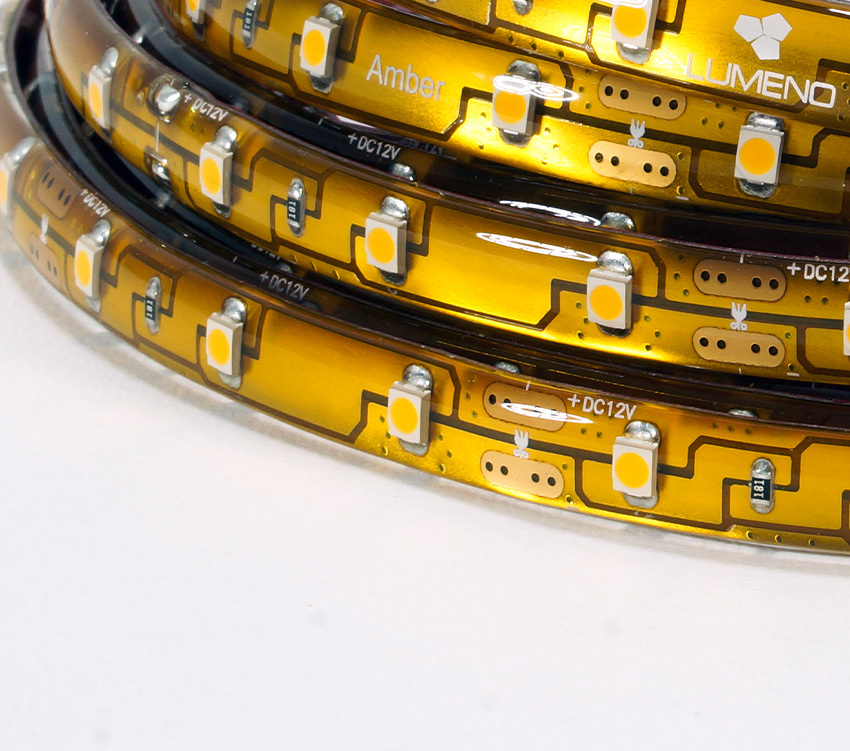

STQ60 Standard LED Strip, 4.8W/METER, 5M REEL, IP55, AMBER

No vote
320LM
  • 60 LED - 3528 SMD per/mt
  • Golden Amber
  • Easy to cut, rejoin with crimps or solder
  • PU/Silicon Coated
  • IP55 For indoor use
  • Self-adhesive back - RED 3M tape

Standard series Warm White LED Strip for commercial and domestic use. 5m reel complete with connectors and manual. Golden Amber made for Lumeno series. IP55 PU coated for extra protection

Technical Specification

ModelLM-STQ3528WP-60-A
Luminous Flux (LM) 320LM
Nominal Power 4.8 Watt
Correlated Colour Temperature (CCT) Amber
LED Quantity 60 LED / M
LED Type SMD 3528
Input Voltage (Pri) 12V DC
Min Cut (Circuit) 50mm (3 LED)
Output 12V DC
FPC Size 2Oz FPC, 8mm
Ingress Protection IP55
Maximum Length (mm) 10000
Connection Wire 2 Core - 20AWG
Warranty Period 3 Year
