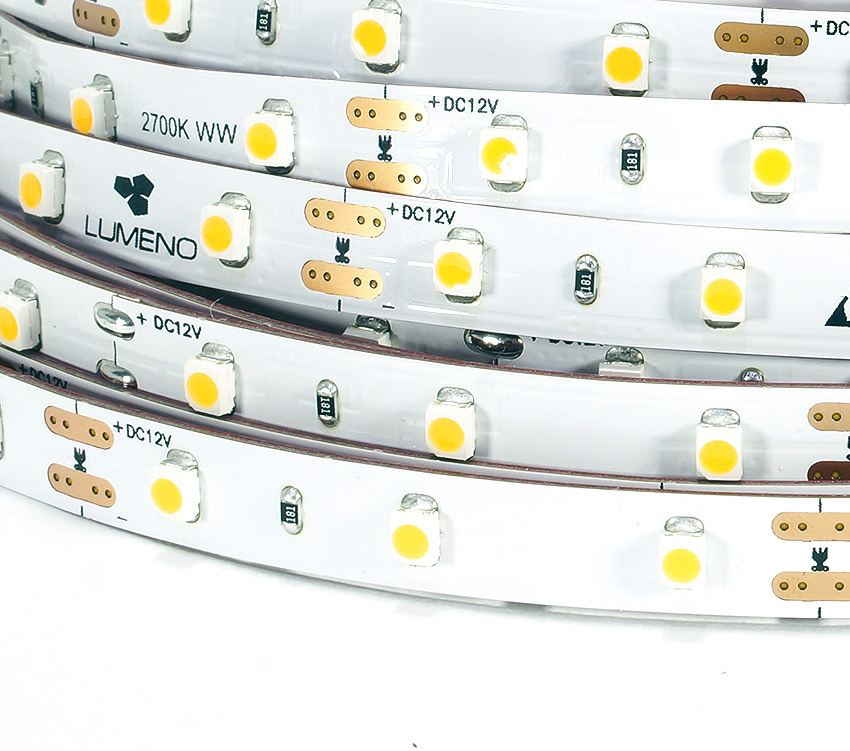

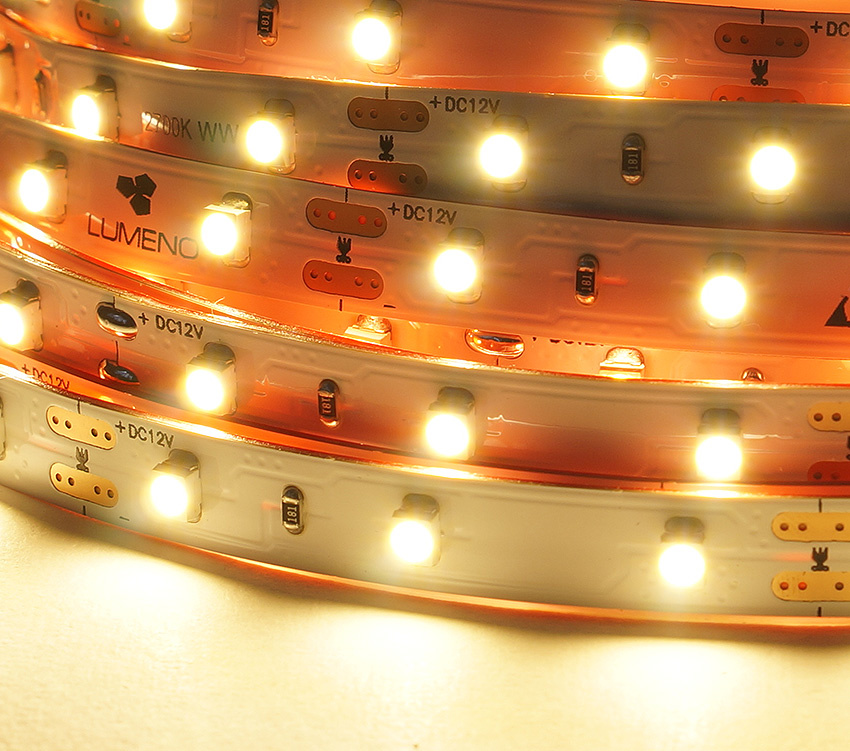

STQ60 Standard LED Strip, 5M REEL, 4.8W/M, IP20, 2700K
STQ60 Standard LED Strip, 5M REEL, 4.8W/M, IP20, 2700KSTQ60 Standard LED Strip, 5M REEL, 4.8W/M, IP20, 2700K
LM-STQ3528-60-WW

STQ60 Standard LED Strip, 5M REEL, 4.8W/M, IP20, 2700K

450LM
  • 60 LED - 3528 SMD per/mt
  • CRI>90, natural looking colours
  • Easy to cut, rejoin with crimps or solder
  • Bare PCB
  • Non-Waterproof IP20 for indoor only
  • Self-adhesive back - RED 3M tape
Standard series Warm White LED Strip for commercial and domestic use. 5m reel complete with connectors and manual. Classic 2700K for general application.

Technical Specifications

Model
LM-STQ3528-60-WW
Product type
Flexible Strip
Warranty Period
5 Year
Input Voltage (Pri)
12V DC
Nominal Power
4.8 Watt
Connection Wire
2 Core - 20AWG
Output
12V DC
LED Type
SMD 3528
Luminous Flux (LM)
450LM
Colour Rendering Index (CRi)
>90
Correlated Colour Temperature (CCT)
2700K
LED Quantity
60 LED / M
Maximum Length (mm)
10000
Ingress Protection
IP20

Downloads & Resources

Technical documents and support files for LM-STQ3528-60-WW

Print-friendly layout
Press CTRL+P to save as pdf.
Datasheet [pdf] FILE  ·  Downloadable PDF file
Download
CE [pdf] FILE  ·  Downloadable PDF file
Download
