DATASHEET - RF & App dimming module

www.lumeno.ie
s1b-wt-1
s1b-wt-1ct-s1b-2
LM-CT-S1B-WT

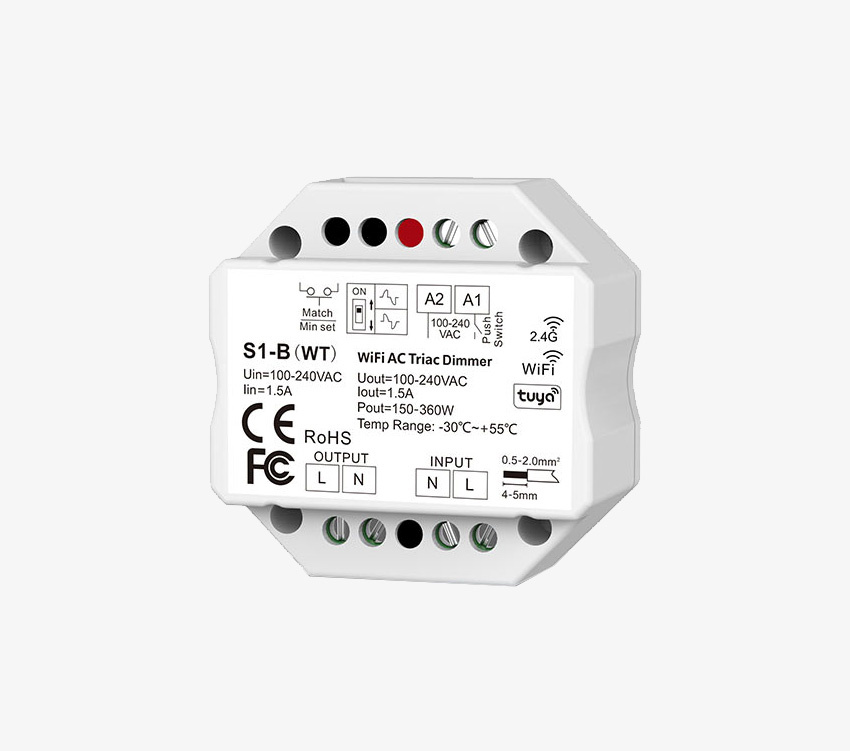

Dimming module, phase-cut, 240W, Push+Tuya+RF

  • 220VAC Wireless dimming module with Tuya interface
  • 220 Watt capacity dimming
  • RF2.4Ghz, push to make interface and Tuya interface
  • Can work with all Lumeno RF2.4Ghz dim remotes

Wireless RF dimming unit compatible with RU4/R1/T16 controllers. Push to make interface and wifi/remote access via Tuya App.

Technical Specifications

General
Model
LM-CT-S1B-WT
Product type
Triac Dimmable, RF Remote Control, Lighting Controlls
Certification
CE ROHS Certified
Warranty Period
2 Years
Electrical
Input Voltage (Pri)
220V - 240V AC
Output Power (P)
1A@220VAC
Wireless signal
TUYA Wifi & RF2.4Ghz input/output
Lighting
Output
110V - 240V AC
Mechanical
Ingress Protection
IP20
