DATASHEET - IP67 Waterproof Power Supply

www.lumeno.ie
ps24v150wp-sl-1
LM-PS24V150WP-SL

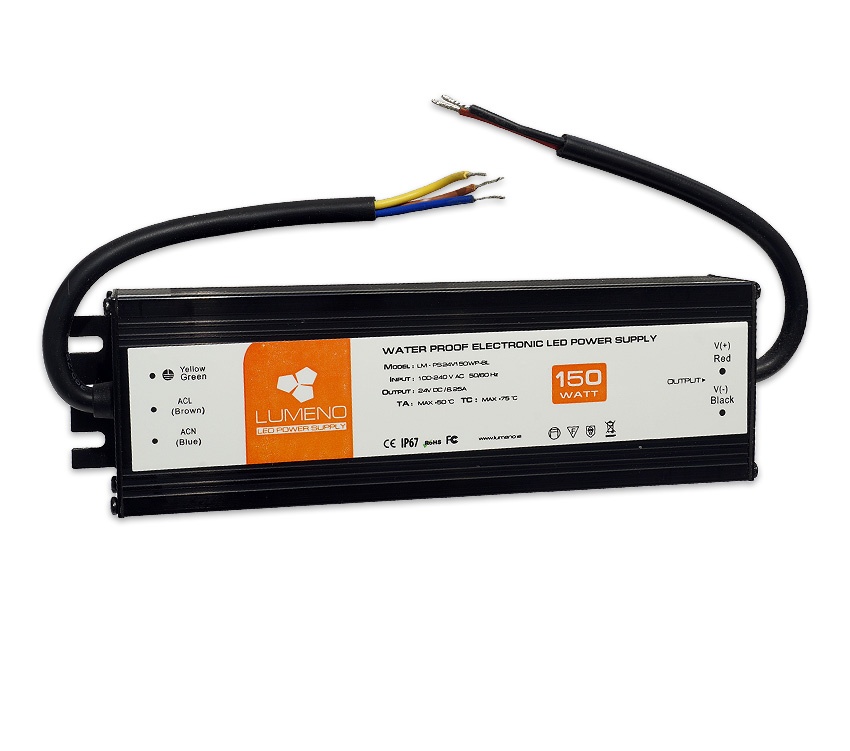

24V 150W, 6.25A, Power Supply, IP67

  • IP67 Waterproof for outdoor implementation
  • 100% full load burn-in test
  • High efficiency, long life and high reliability
  • Flat design metal body
  • Built-in EMI filter
  • Designed for LED lights
  • Cooling by heat silicone
  • Protection: OTP,OLP,OVP,SCP

Flat design, waterproof power supply, ideal for tight spaces. Metal case with input/output connection wires.

Technical Specifications

General
Model
LM-PS24V150WP-SL
Product type
Power Supply (CV)
Compliance summary
CE ROHS Certified
Warranty
1 Year
Electrical
Input Voltage (Pri)
220V - 240V AC
Rated output power (W)
150 Watt
Rated output current (A / mA)
6.25A
Dimming / control type
non-dimmable
Power factor
0.85
Inrush current
50A typ. @ 230Vac
Controller type
Dimmer
Standby power (W)
0.5W
Lighting
Output specification
24V DC
Mechanical
IP rating
IP67
Dimensions (mm)
208*59*33mm
Weight
800g
Operating temperature (degrees C)
-20°C~+70°C
