LM-PS24V60WP-SL
24V 60W, 2.5A, Power Supply, IP67
- IP67 Waterproof for outdoor implementation
- 100% full load burn-in test
- High efficiency, long life and high reliability
- Flat design metal body
- Built-in EMI filter
- Designed for LED lights
- Cooling by heat silicone
- Protection: OTP,OLP,OVP,SCP

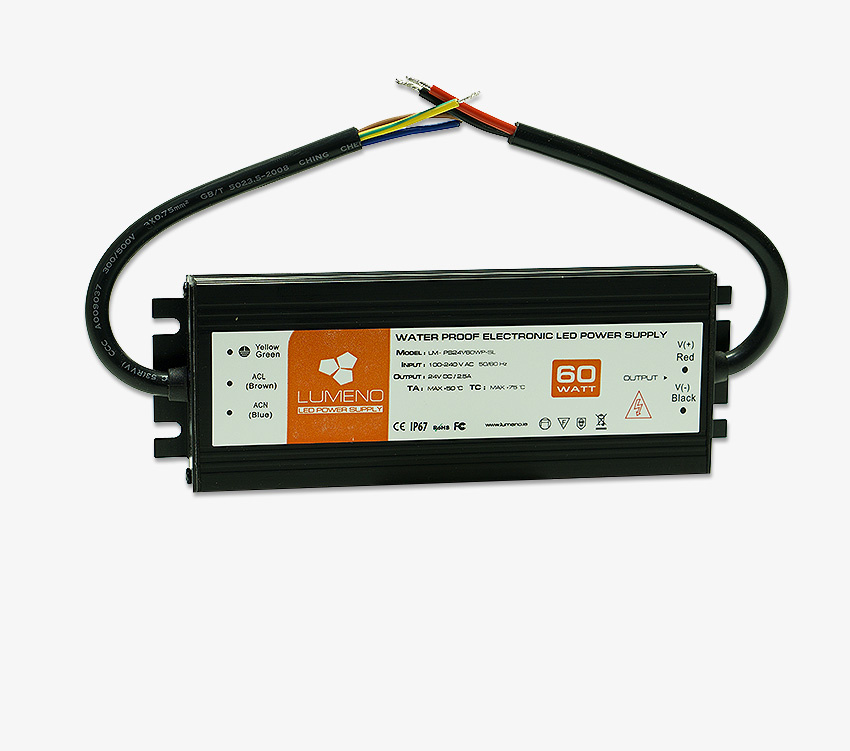

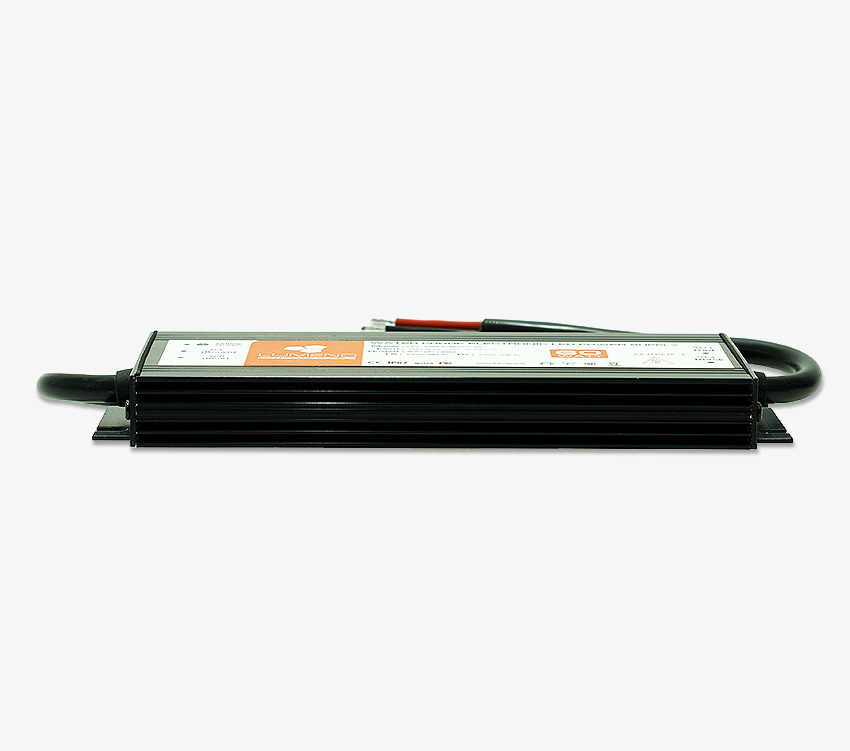

Flat design, waterproof power supply, ideal for tight spaces. Metal case with input/output connection wires.
Product type
Power Supply (CV)
Compliance summary
CE ROHS Certified
Input current (AC / DC)
0.51A/230V
Input Voltage (Pri)
220V - 240V AC
Rated output power (W)
60 Watt
Rated output current (A / mA)
2.5A
Dimming / control type
non-dimmable
Inrush current
50A typ. @ 230Vac
Output specification
24V DC
Dimensions (mm)
168*61*18mm
Operating temperature (degrees C)
-20°C~+70°C
