LM-PL4060BL-CCT

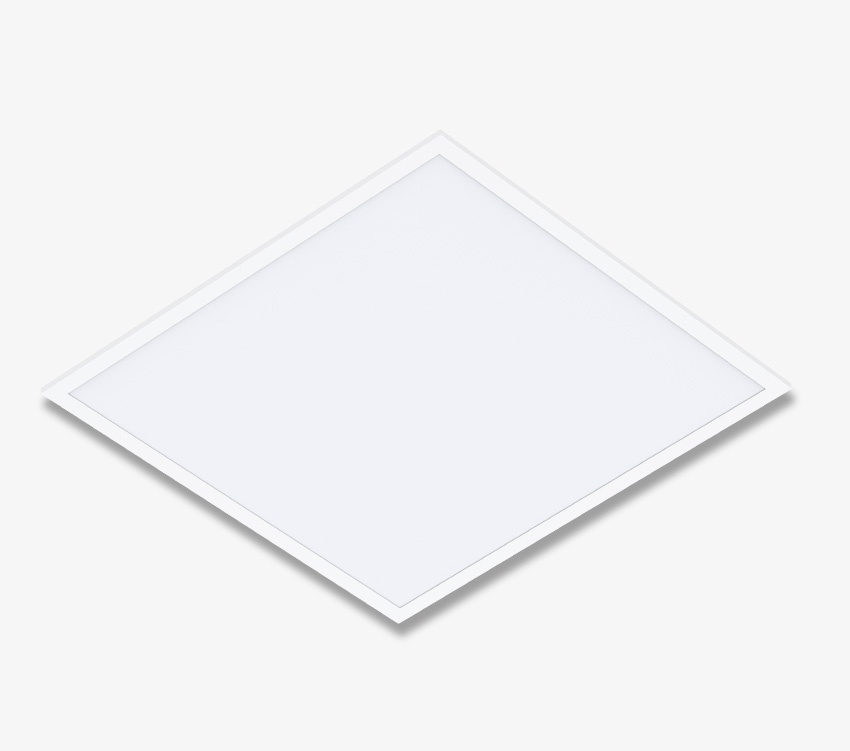

Variant 40BL 2x2 LED Panel Light - CCT

5 5 1 Product


F

4300LM

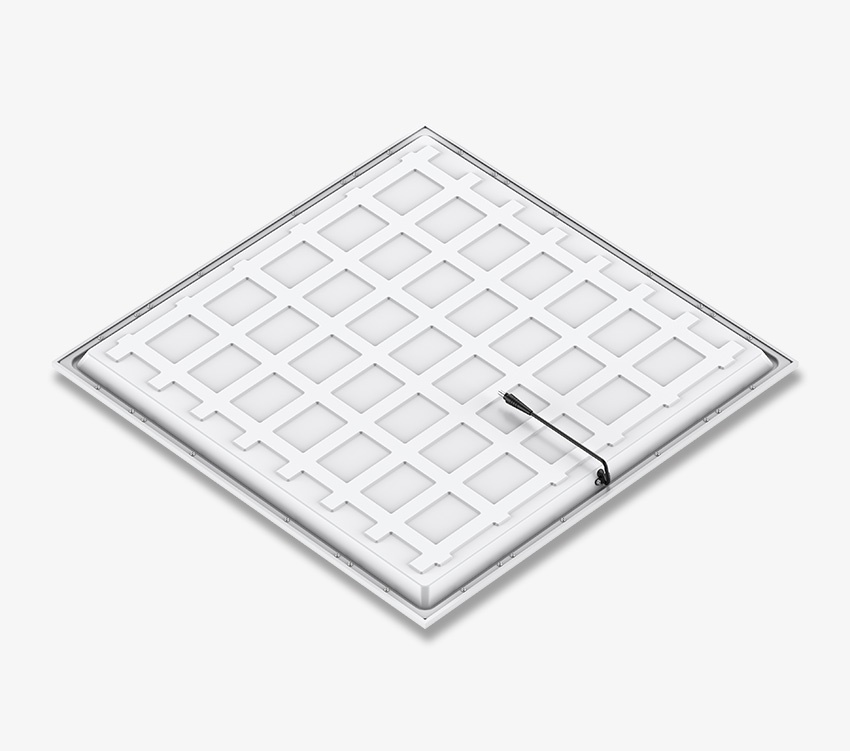

  • Back-lit panel design
  • Light weight body
  • Easy CCT selector switch
  • TPB Diffuser
  • Excellent thermal management
  • Dimmable drivers available
  • Uniform light effect with optic lens

Back-light distribution method eliminated need for PMMA light distribution plate, completely getting rid of the issue of panel turning yellow in time. As standardized for all Lumeno panels, front diffuser is made of a TPB plastic, following office regulations. Available also in a low glare version with UGR

Technical Specification

ModelLM-PL4060BL-CCT
Light Source LED
Luminous Flux (LM) 4300LM
Luminaire efficacy 112LM/W
Nominal Power 40 Watt
Correlated Colour Temperature (CCT) CCT
Colour Rendering Index (CRi) >85Ra
Input Voltage (Pri) 220V - 240V AC
Power Factor 0.95
Light Angle (°) 100°
Product finish White
IK Rating n/a
Lifespan 50000h(LM80)
Ingress Protection IP20
Dimming non-dimmable (availabe drivers 0-10v,Dali,Triac)
Driver 30-42V 980mA
Size 595x595x40mm
Warranty Period 3 Years
