DATASHEET

www.lumeno.ie
psd24v150v1-1
psd24v150v1-1psd24v150v1-2
LM-PSD24V150V1

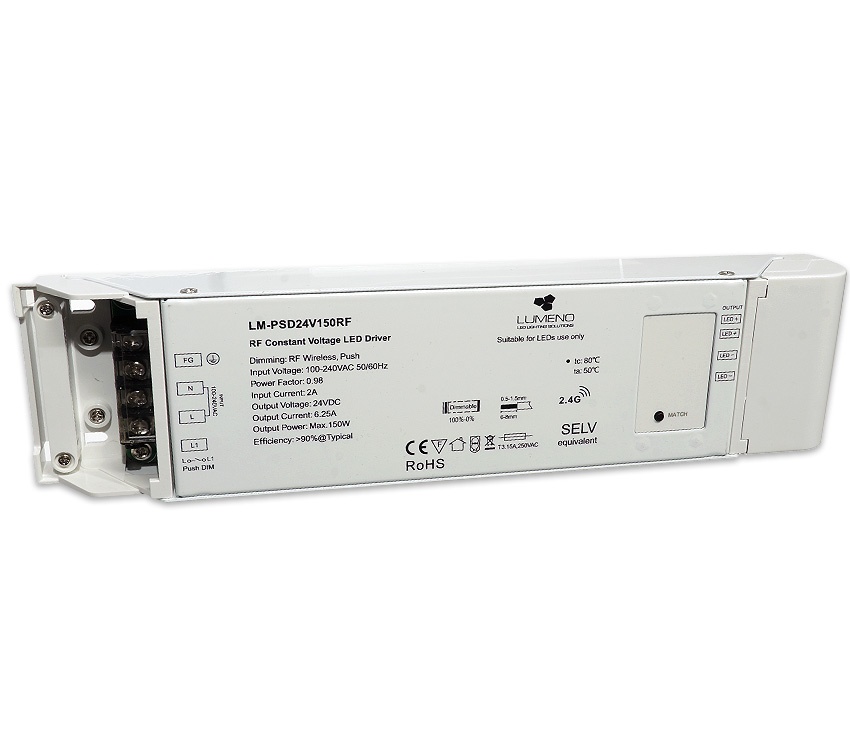

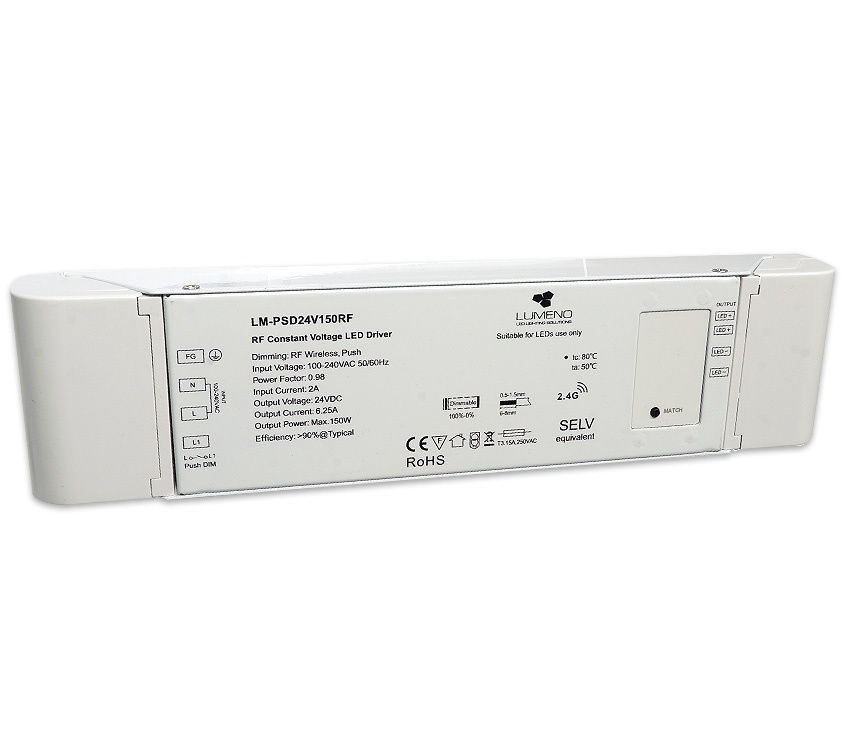

24V 150W Dimmable Power Supply, RF, Push-Dim, V Series

  • Dimming interface: RF Wireless, AC Push-Dim
  • Universal AC input / Full range
  • 1 channel constant voltage output
  • Auto-transmitting and synchronization function
  • Synchronize on multiple number of LED drivers
  • Full protective plastic case
  • Suitable for indoor LED lighting application

RF Dimmable power supply for single colour 24V DC LED lights. With 230V push dimming interface. Warp V series.

Technical Specifications

General
Model
LM-PSD24V150V1
Product type
Power Supply (CV), RF Dimming, Push Dimming
Application
Indoor Only
Certification
CE,EMC,Rohs
Warranty Period
5 Years
Electrical
Input Voltage (Pri)
220V - 240V AC
Output Power (P)
6.25A
Dimming
RF using Warm V series controllers, Push to make interface
Inrush Current
Cold Start @27.5A
Controller Type
Dimmer
Wireless signal
2.4Gz
Standby Power
1.6W
Lighting
Output
24V DC
Mechanical
Ingress Protection
IP20
Size
280x67x36mm
Working Temperature
20-50°C
