LM-CT-T4RGBW
RF RGBW Wall controller, 4x 3A, 12-24VDC
- RGBW+ PWM constant voltage controller.

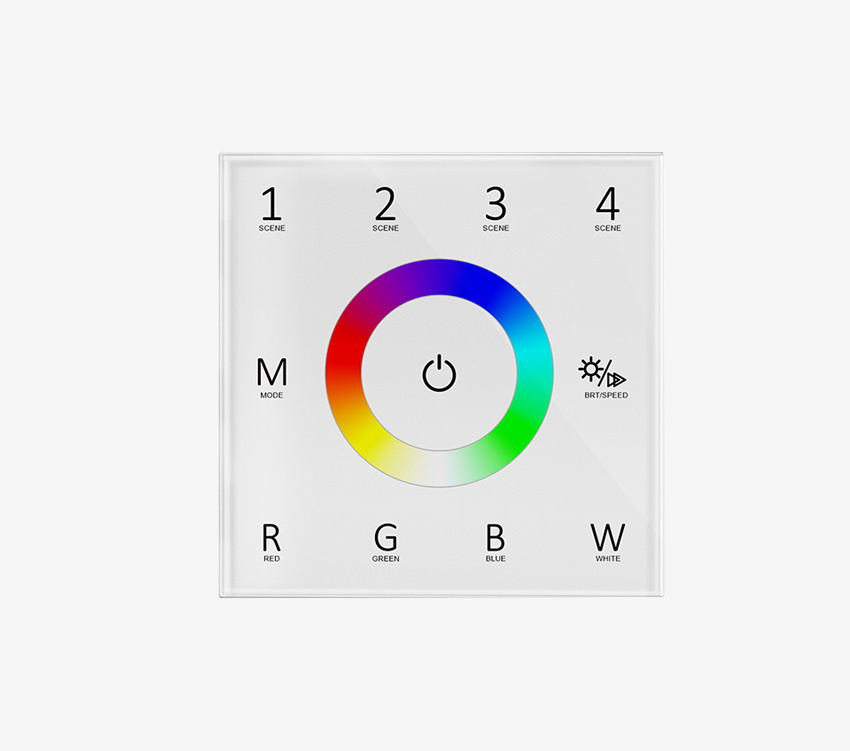

- Ultra sensitive high strength glass touch panel with touch color wheel in the middle
- 4 Zone RF Remote
- Compatibility with RF 2.4G single zone or multiple zone remote control
- Touch keys with LED indicator
- 12-24V Input
Low voltage supply touch panel wall plate remote control for RGB colour changing LED strips and DMX Lights. Touch Dimming Remote Control with wireless signal and DMX interface. Can work both with CT-V3/V3-L/V4/V4-L control modules and DMX decoders. Can also receive signal from a hand held remote (RT4/RT9).
Technical Specification |
| Model | LM-CT-T4RGBW |
|
Input Voltage (Pri)
|
12V-24V DC
|
|
Wireless signal
|
RF 2.4Gz
|
|
Control distance
|
10m(Barrier-free space
|
|
Output
|
RGB+
|
|
Output Power (P)
|
144-288 Watt
|
|
Current Output (Io)
|
4Ch,3A/Ch
|
|
Ingress Protection
|
IP20
|
|
Dimming
|
PWM dimming
|
|
Size
|
86x86x48mm
|
|
Weight
|
118g
|
|
Controller Type
|
Dimmer
|
|
Working Temperature
|
-30°C ~+55°C
|
|
AC Current (Ip)
|
12.5A
|
|
Protection
|
EN 62368-1:2020+A11:2020
|
|
Certification
|
CE,EMC,LVD,RED
|
|
Warranty Period
|
2 Years
|
