DATASHEET - RF Control module

www.lumeno.ie
ct-v4-1
ct-v4-1ct-v4-2

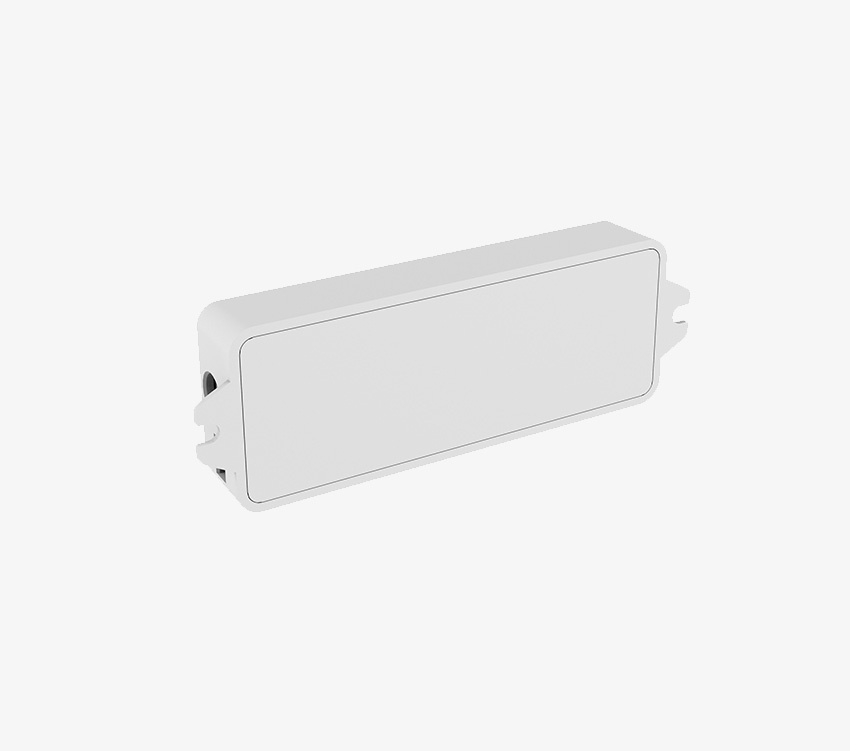

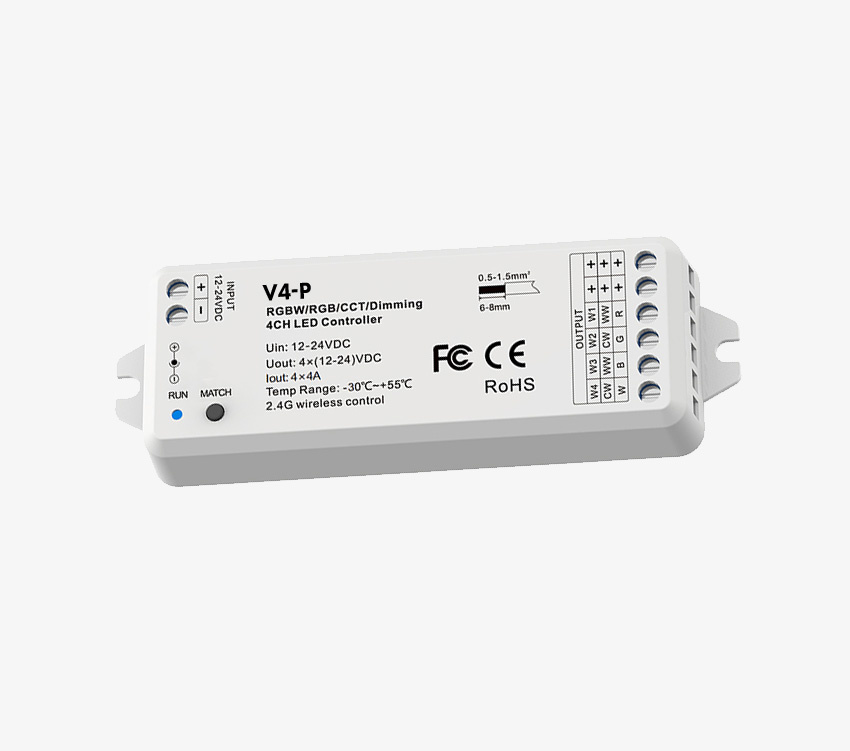

LM-CT-V4-RGBW

RF Receiver, RGB/RGBW Controller, 12A, 4x3A

  • RF RGBW Receiver/controller
  • Compatible with CTV403 set and rgb/rgbw wall plates
  • Signal relay/repeat technology + 30m range
  • R/G/B/W/+ connections, 4x3A
  • Range of remotes available
  • 2.4Ghz Frequency, 30m Range
  • 10 Built in modes
  • Can be paired with 10 remote interfaces as part of a multi-zone system
RGB/RGBW colour changing receiver controller : 4x4A interface (x4 12V@48W-24V@96W). Multiple receivers can work with one or more remotes / wallplates. Each receiver works as a signal relay, repeating the signal between other units in range. Build in dimming and colour chaning solution. Can be added to CTV403RGB as an extra receiver.

Technical Specifications

General
Model
LM-CT-V4-RGBW
Product type
Lighting Controlls, RF Dimming
Certification
CE,EMC,LVD,RED
Warranty Period
2 Years
Electrical
Input Voltage (Pri)
12V-36V DC
AC Current (Ip)
15A
Output Power (P)
192-384 Watt
Current Output (Io)
4Ch, 4A/Ch
Dimming
PWM dimming
Wireless signal
RF 2.4Gz
Lighting
Output
RGBW+
Mechanical
Ingress Protection
IP20
Weight
39g
Working Temperature
-30°C ~+55°C

Downloads & Resources

Technical documents and support files for LM-CT-V4-RGBW

Print-friendly layout
Press CTRL+P to save as pdf.
Datasheet [pdf] FILE  ·  Downloadable PDF file
Download
