DATASHEET - RF Control module

www.lumeno.ie

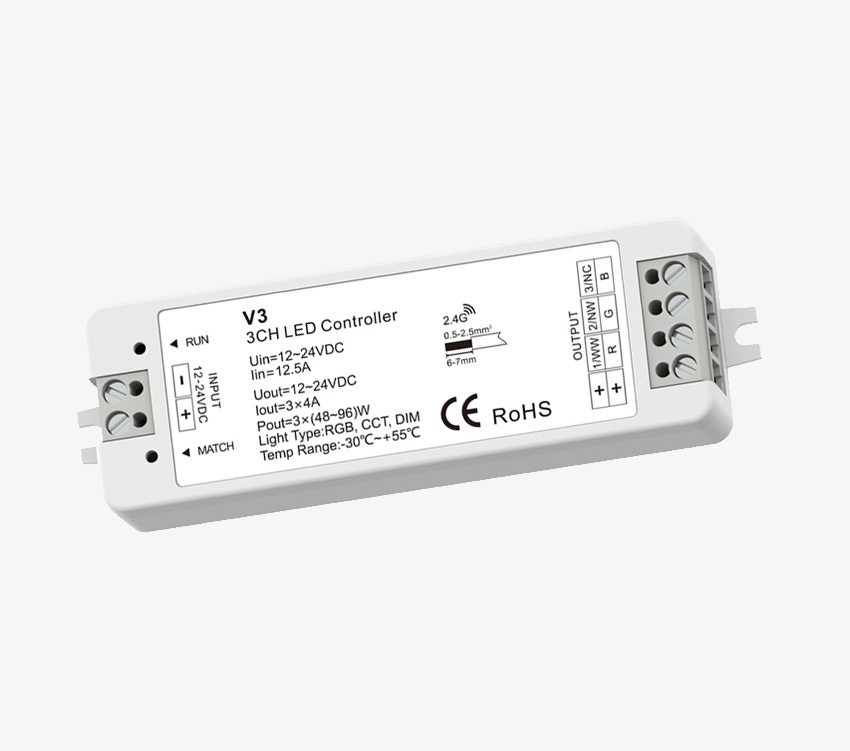

ct-v3-1

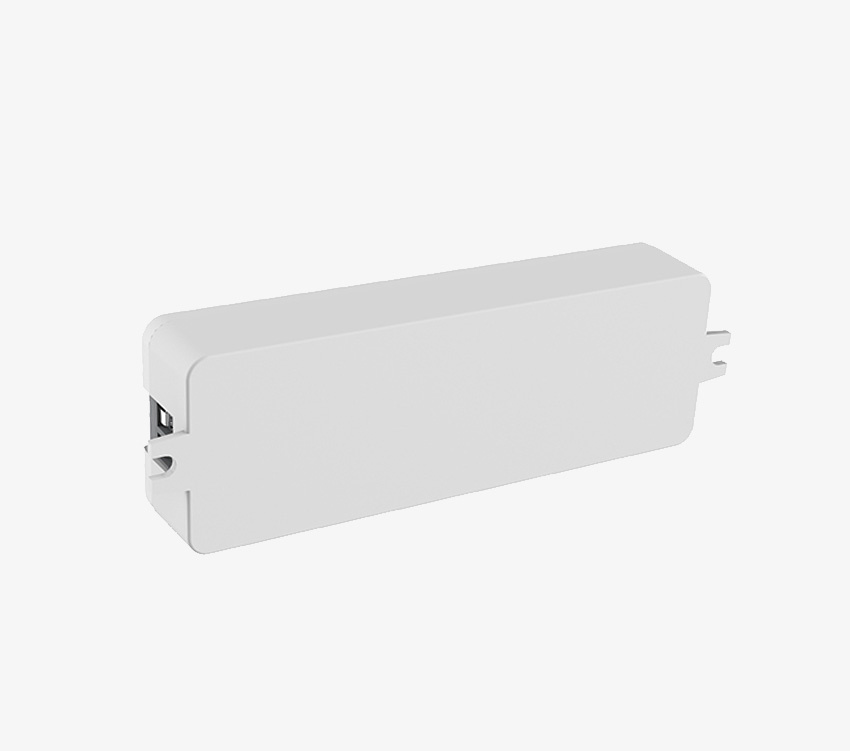

ct-v3-1ct-v3-2
LM-CT-V3RGB

RGB Receiver , 3x 4A , 12-24V

  • RF RGB Receiver/controller
  • Compatible with CTV403 set and rgb/rgbw wall plates
  • Signal relay/repeat technology + 30m range
  • Range of remotes available
  • 2.4Ghz Frequency, 30m Range
  • 10 Built in modes
  • Can be paired with 10 remote interfaces as part of a multi-zone system
RGB colour changing receiver controller : 3x4A receiver (x3 12V@48W-24V@96W). Multiple receivers can work with one or more remotes/wallplates. Each receiver works as a signal relay, repeating the signal between other units in range. Build in dimming and colour chaning solution. Can be added to CTV403RGB as an extra receiver.

Technical Specifications

General
Model
LM-CT-V3RGB
Product type
Lighting Controlls, RF Dimming
Certification
CE,EMC,LVD,RED
Warranty Period
2 Years
Electrical
Input Voltage (Pri)
12V-36V DC
Output Power (P)
144-288 Watt
Current Output (Io)
3Ch, 4A/Ch
Dimming
PWM dimming
Wireless signal
RF 2.4Gz
Lighting
Output
RGB+
Mechanical
Ingress Protection
IP20
Size
97x33x18mm
Weight
38g
Working Temperature
-30°C ~+55°C
