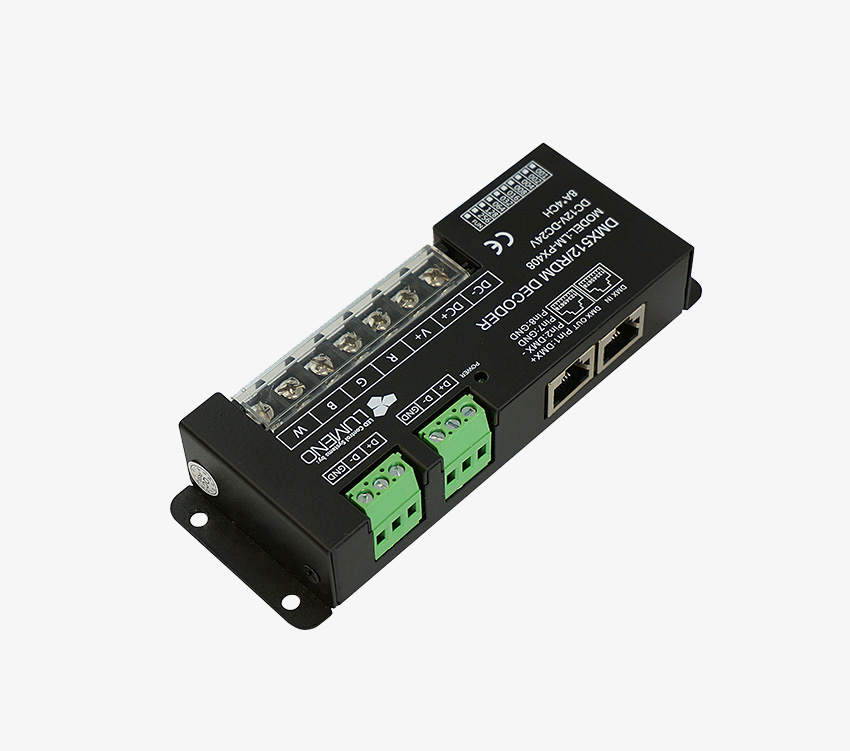

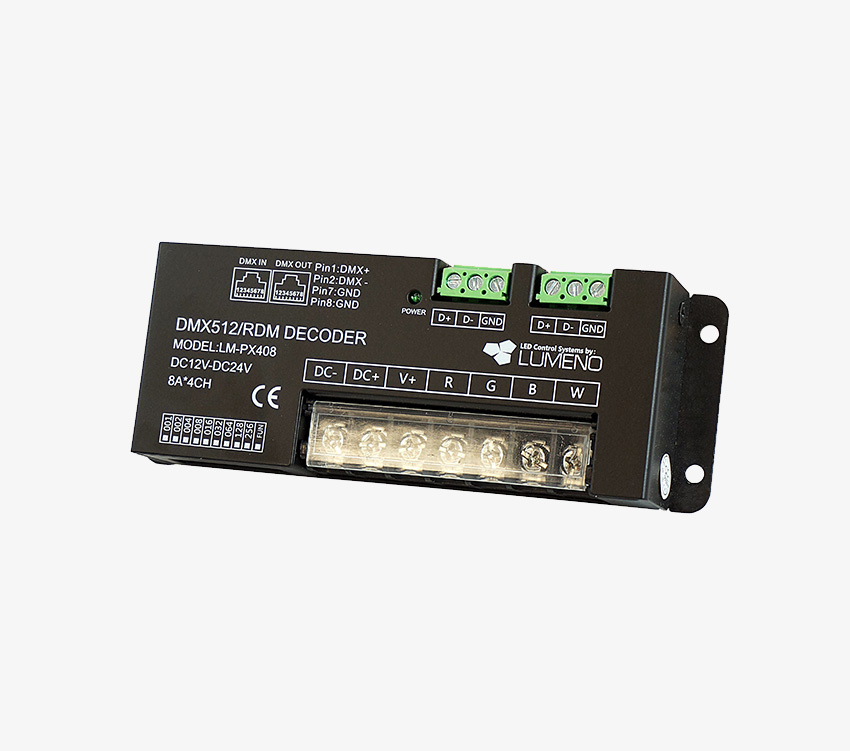

LM-PX408
DMX Decoder, 4x 8A, 12/24V
- Constant voltage DMX512 decoder with upt to 4 channel selectable
- DMX512 international standard
- Compatible with all DMX standard systems
- Dip-switch DMX address setup
High capacity DMX Decoder for LED strip lights.Can be set to work as a 3ch or 4ch decoder @ 8A each (x4 12V@96W, 24V@192W). Terminal block connector and RJ45 interface. Adress set by dip-switches (binary). Max 30 devices can work in one DMX universe.
Technical Specification |
| Model | LM-PX408 |
|
Input Voltage (Pri)
|
12V-24V DC
|
|
Output
|
RGBW+
|
|
Current Output (Io)
|
4Ch, 8A/Ch
|
|
Ingress Protection
|
IP20
|
|
Working Temperature
|
-30°C ~+55°C
|
|
Certification
|
CE ROHS Certified
|
|
Warranty Period
|
3 Years
|
