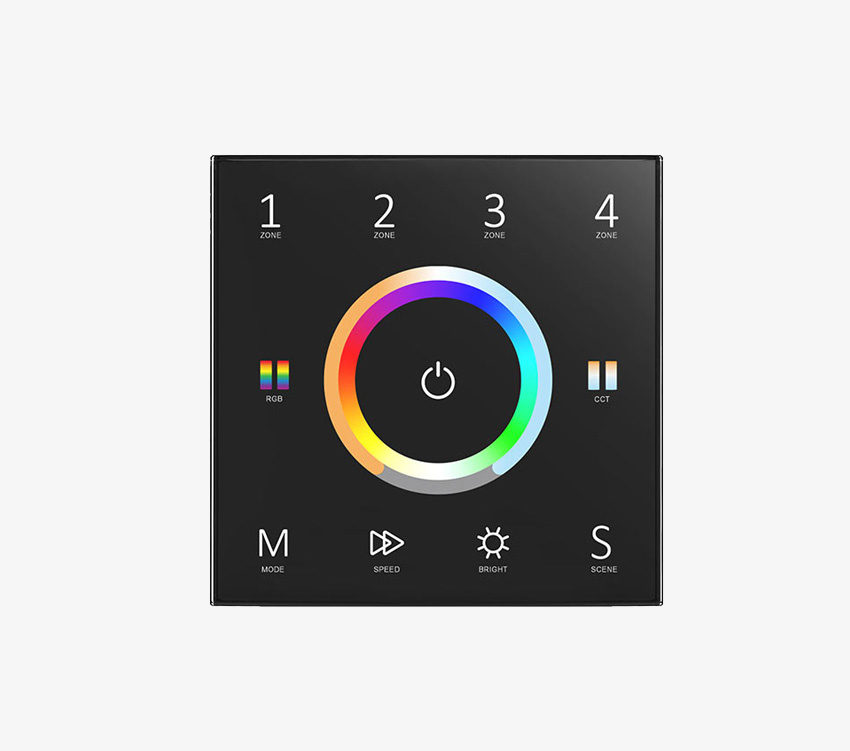

LM-CT-T15-RGB-C3
Touch Wallplate, RGB+CCT, Black, 230V,DMX,RF(V2/V3/V4)
- Touch panel 4 zone 1-5 color universal DMX512 master
- Can also be used as 4 zone 1-5 color universal RF remote
- Each zone can be set as single color, dual color(WW/CW), RGB, RGBW or RGB+CCT light type
- DMX signal output, comply to standard DMX512 protocol,
- When used as RF remote, each zone can remote control multiple RF 2.4G LED controllers.
- Smooth and accurate color adjustment by touching the color wheel
- Touch keys with LED indicator
Touch panel wall plate remote control for RGB colour changing LED strips and DMX Lights. Touch Dimming Remote Control with wireless signal and DMX interface. Can work both with CT-V3/V3-L/V4/V4-L control modules and DMX decoders. Can also receive signal from a hand held remote (RT4/RT9).
Technical Specification |
| Model | LM-CT-T15-RGB-C3 |
|
Input Voltage (Pri)
|
220V - 240V AC
|
|
Wireless signal
|
RF 2.4Gz
|
|
Control distance
|
10m(Barrier-free space
|
|
Output
|

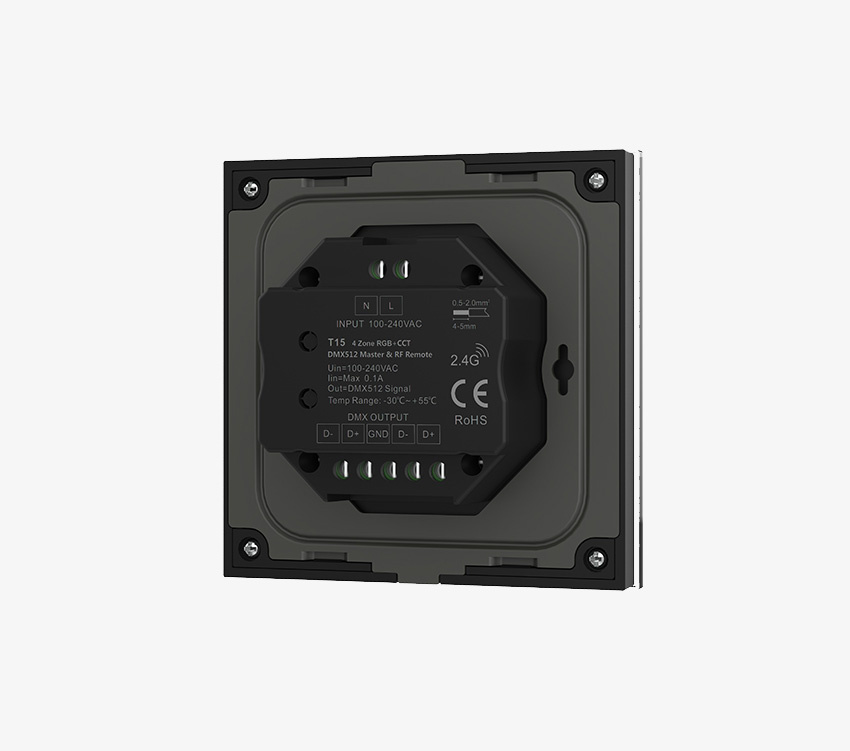

DMX512 D+ / D- / G
|
|
Ingress Protection
|
IP20
|
|
Size
|
86x86x48mm
|
|
Controller Type
|
Dimmer
|
|
Working Temperature
|
-30°C ~+55°C
|
|
AC Current (Ip)
|
0.1A
|
|
Protection
|
EN 62368-1:2020+A11:2020
|
|
Certification
|
CE,EMC,LVD,RED
|
|
Warranty Period
|
2 Years
|
