LM-CT-T12-CCT

Touch wallplate,CCT, 230V, DMX, RF(V2/V2-X)

No vote
  • RF/DMX Dual Colour Controller
  • DMX Master controller, compatible with DMX512
  • CCT Strips remote controller
  • 4 Zone DMX controller/ RF Remote
  • 230V input
  • 2.4Ghz Frequency, 10m Range

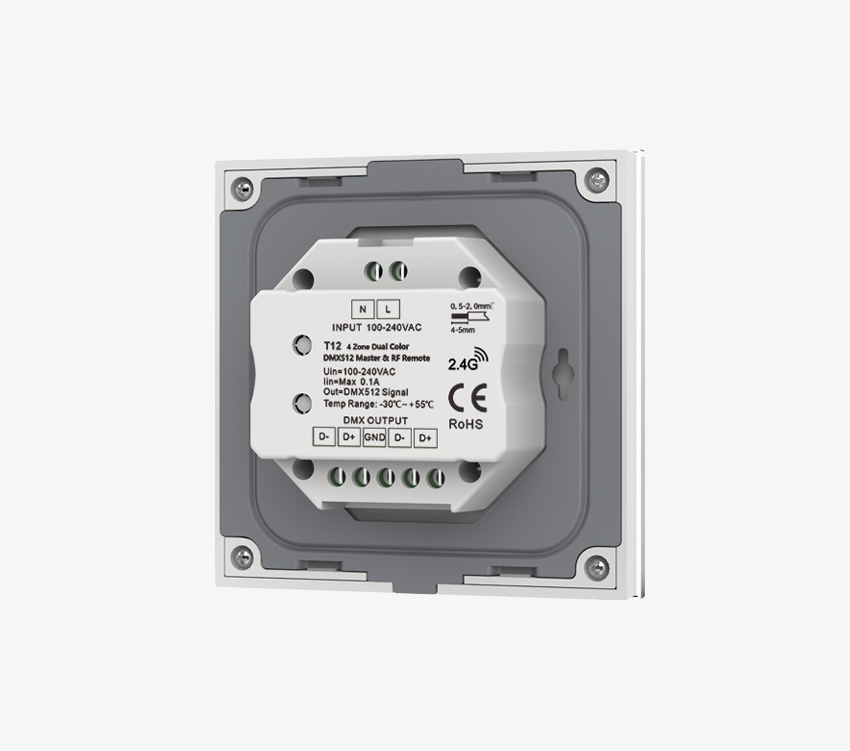

  • DMX Signal Output D+D-G

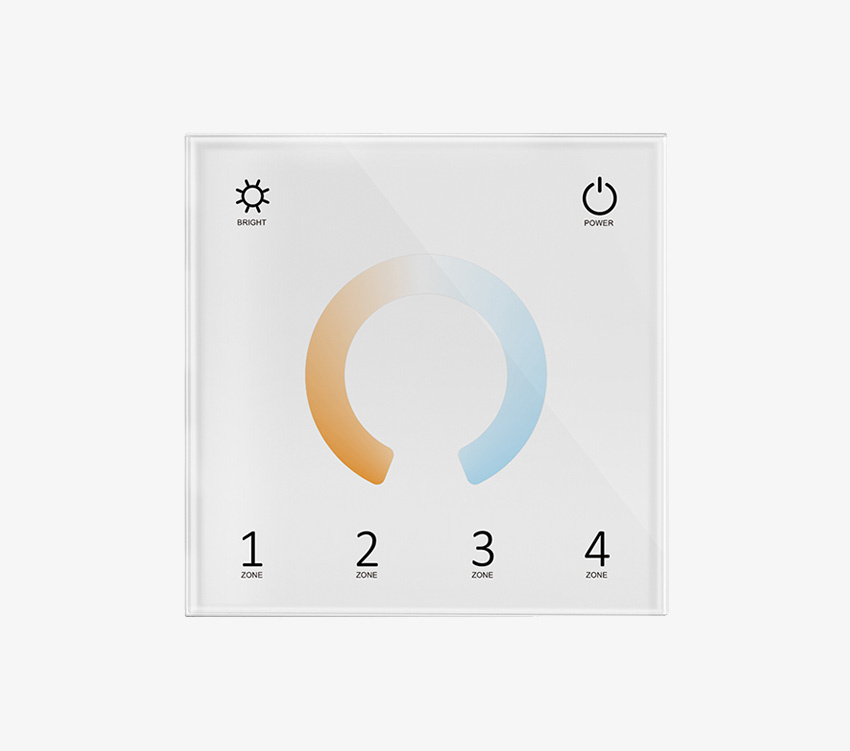

Touch panel wall plate remote control for CCT changing LED strips. Touch Dimming Remote Control with wireless signal and DMX interface. Can work both with CT-V2/V2-X dimming modules and DMX decoders. Can also receive signal from a hand held remote (RT7).

Technical Specification

ModelLM-CT-T12-CCT
Input Voltage (Pri) 220V - 240V AC
Wireless signal RF 2.4Gz
Control distance 10m(Barrier-free space
Ingress Protection IP20
Size 86x86x48mm
Warranty Period 2 Years
Working Temperature -30°C ~+55°C
AC Current (Ip) 0.1A
Protection EN 62368-1:2020+A11:2020
Certification CE,EMC,LVD,RED
