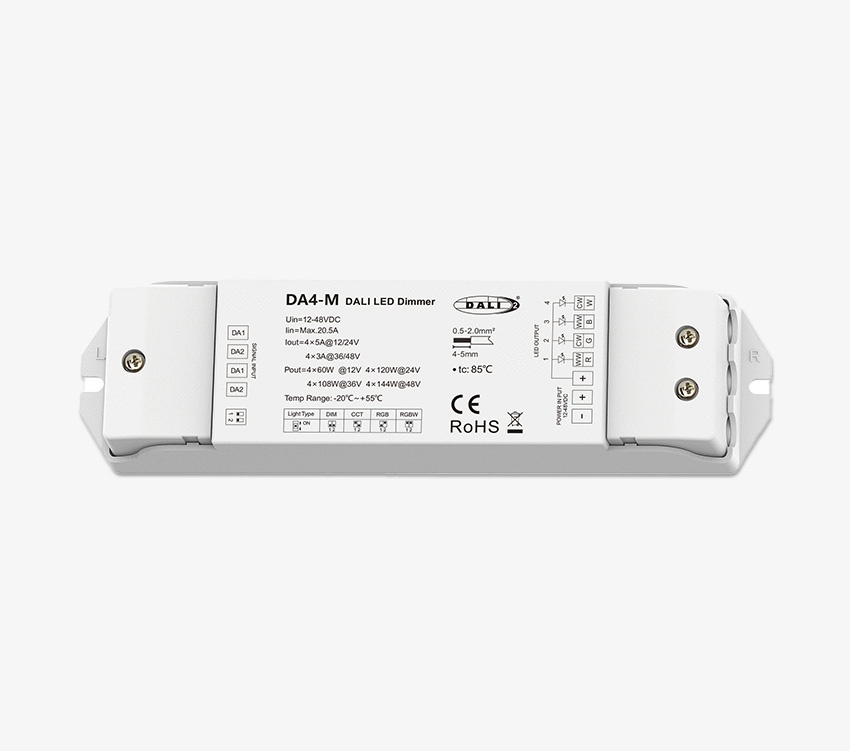

4CH DALI Controller (DT6/DT8), 12-48VDC, 4x5A @24
DATASHEET - Dali DT8
www.lumeno.ie
LM-CT-DA4M
4CH DALI Controller (DT6/DT8), 12-48VDC, 4x5A @24
4 channel constant voltage DALI LED Dimmer with digital display, 5A per channel.
DT6 dimming or DT8-TC color temperature or DT8-RGB or DT8-RGBW light type selectable.
DALI address can be manually assigned and shown in digital display or automatically assigned by DALI master.
PWM digital dimming, standard DALI logarithmic dimming curve.
PWM frequency 1000/2000/4000/8000/16000Hz selectable.
Input signal: DALI,
Dali RGB/W controller DT8
Technical Specification
Model
LM-CT-DA4M
Current Output (Io)
4x5A@12/24V 4x3A@36/48V
Ingress Protection
IP20
Size
178x50x38mm
Weight
0.14Kg
Working Temperature
-20°C ~ +55°C
Protection
Over-heat / Over-load / Short circuit protection, recover automatically
Certification
CE,EMC,LVD, DALI-2
Warranty Period
5 years
