LM-CT-DA4D

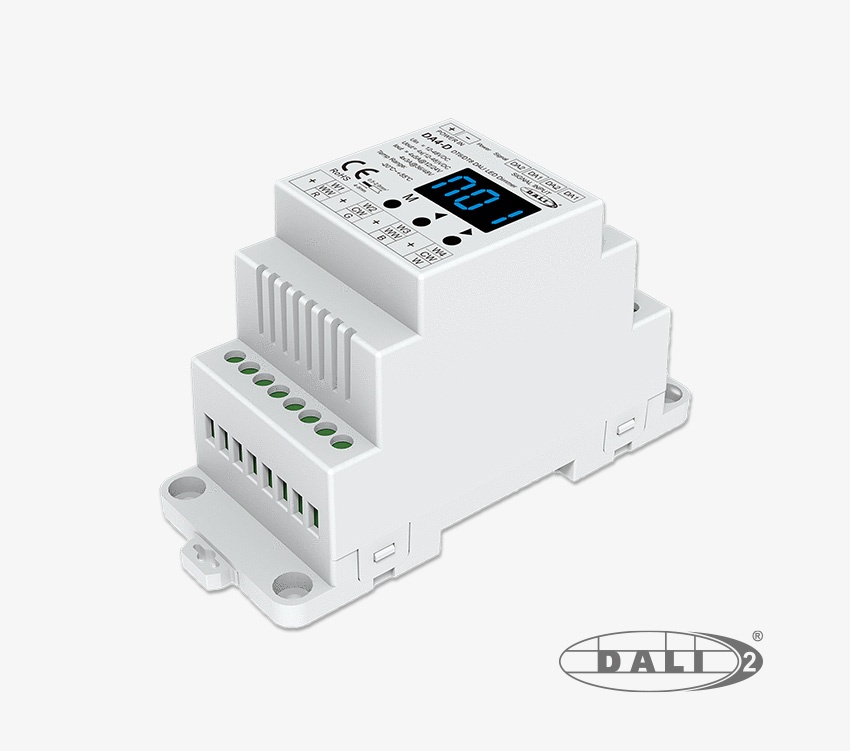

4CH DALI Din-rail Controller (DT6/DT8), 12-48VDC, 4x5A@24V

No vote

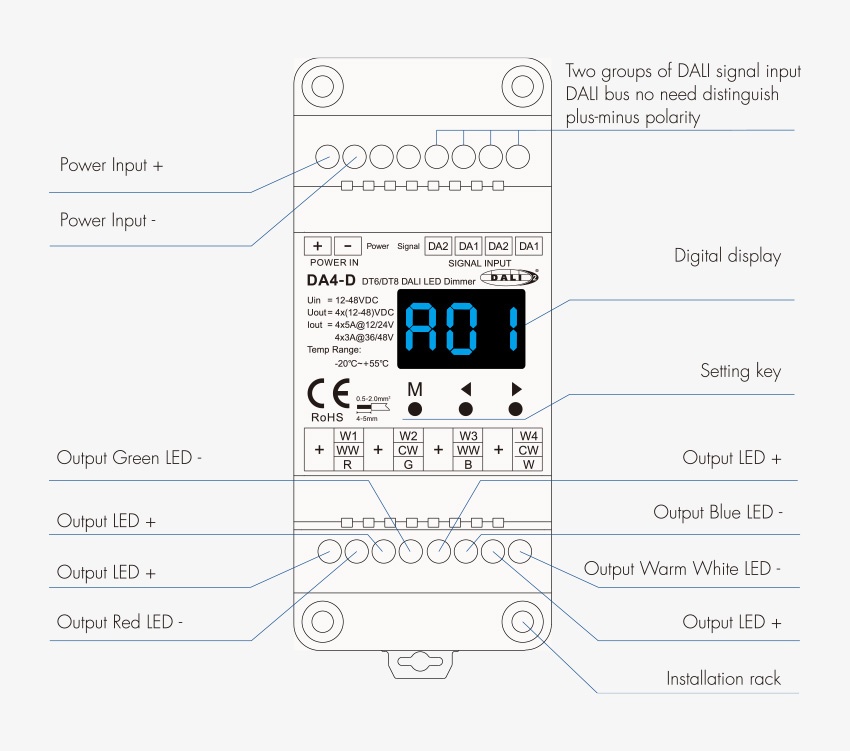

  • 4 channel constant voltage DALI LED Dimmer with digital display, 5A per channel.
  • DT6 dimming or DT8-TC color temperature or DT8-RGB or DT8-RGBW light type selectable.
  • DALI address can be manually assigned and shown in digital display or automatically assigned by DALI master.
  • PWM digital dimming, standard DALI logarithmic dimming curve.
  • PWM frequency 1000/2000/4000/8000/16000Hz selectable.
  • Input signal: DALI, AC push
  • Din-rail installation
Dali RGB/W Din-rail controller DT8

Technical Specification

ModelLM-CT-DA4D
Input Voltage (Pri) 12-48VDC
Output 4x(12-48)VDC
Current Output (Io) 4x5A@12/24V 4x3A@36/48V
Ingress Protection IP20
Size 120x78x55mm
Weight 0.164kg
Working Temperature -20°C ~ +55°C
AC Current (Ip) 20.5A
Protection Over-heat / Over-load / Short circuit protection, recover automatically
Certification CE,EMC,LVD, DALI-2
Warranty Period 5 years
