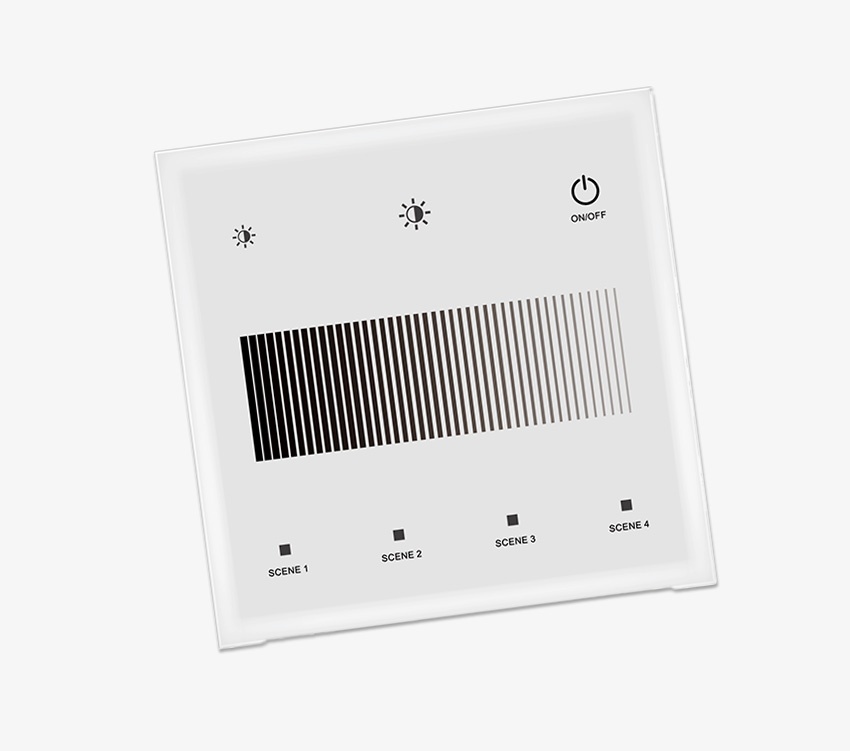

LM-CT-TD1-S

1 Zone Dimming DALI Panel Master

No vote
  • Single colour: 4 Zone 4 scene
  • 1 DALI address, support DT6 dimming, DT8-TC color temperature, DT8-RGB or DT8-RGBW.
  • Match with RF 2.4G single zone or multiple zone remote control optional.
  • Ultra sensitive high strength glass touch panel with touch color slide.
  • Smooth and accurate color adjustment by touching the color slide.
  • 4 scenes memory.
  • Touch keys with LED indicator.

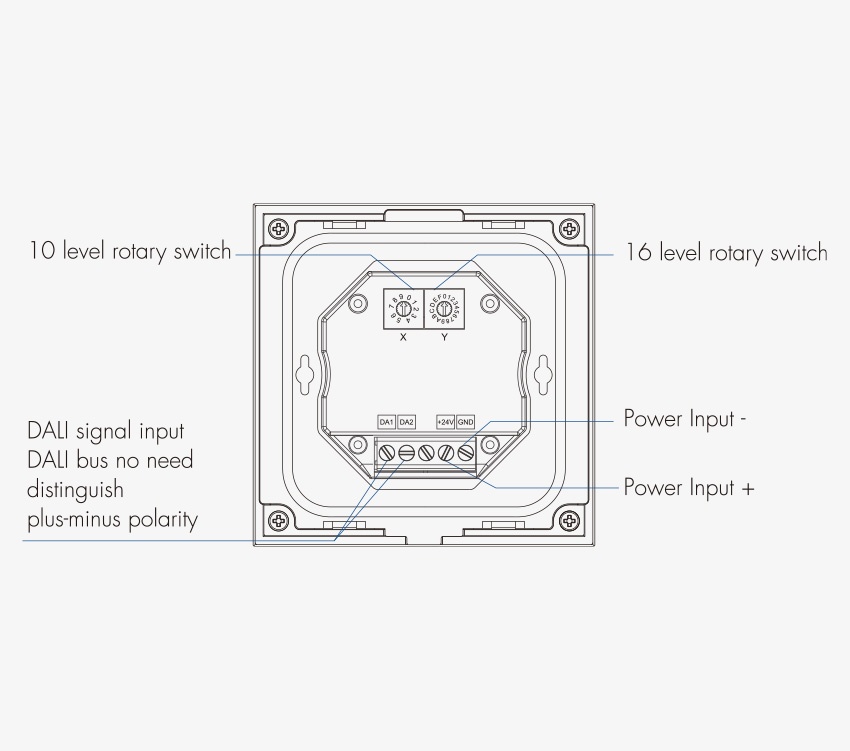

  • Encoding switch select addresses, support 4 control modes: scene, grouping, unicast and broadcast.
1 Zone Dali master wall plate with rottary addressing.

Technical Specification

ModelLM-CT-TD1-S
Control distance 10m(Barrier-free space)
Ingress Protection IP20

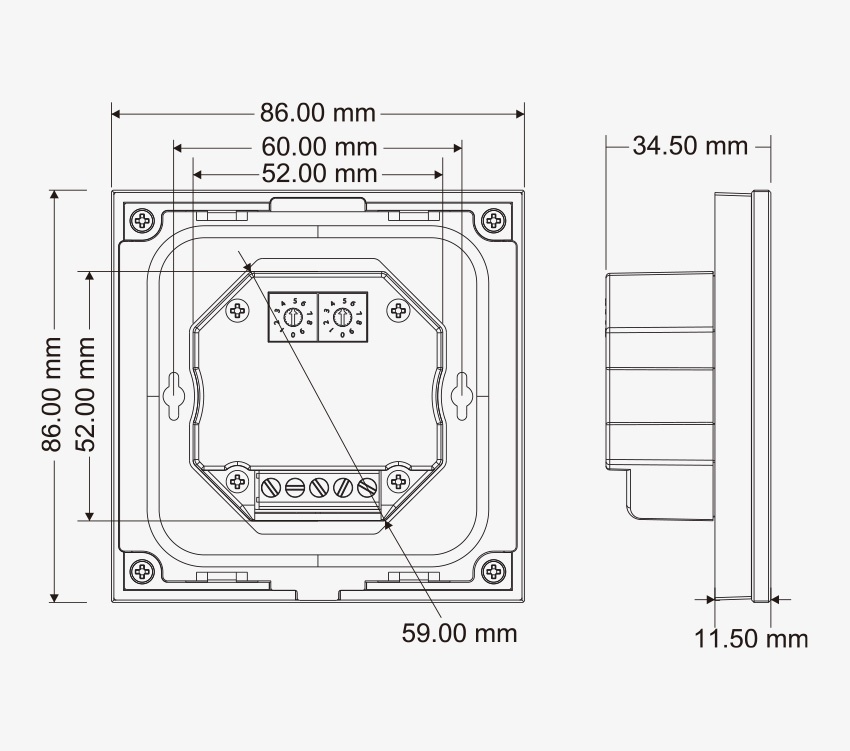

Size 112x112x50mm
Weight 0.23kg
Input Touch key + RF 2.4GHz
Certification CE,EMC,RED,DALI 2
Warranty Period 5 years
