LM-CT-TD1-4S

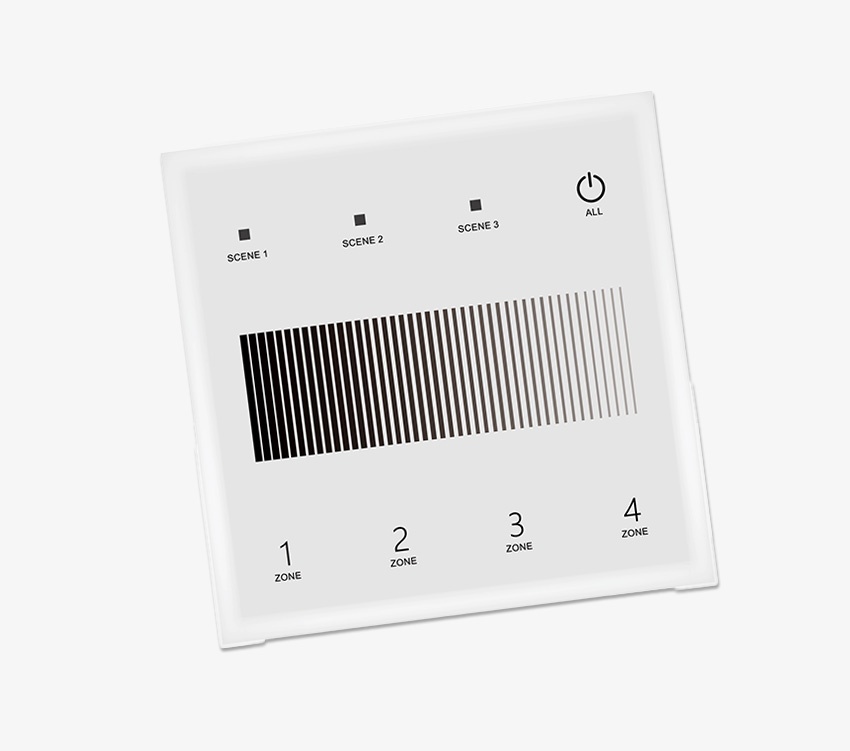

4 Zone Dimming DALI Panel Master
- Single colour: 1 Zone 4 scene
- 1 DALI address, support DT6 dimming, DT8-TC color temperature, DT8-RGB or DT8-RGBW.
- Match with RF 2.4G single zone or multiple zone remote control optional.
- Ultra sensitive high strength glass touch panel with touch color slide.
- Smooth and accurate color adjustment by touching the color slide.
- 4 scenes memory.
- Touch keys with LED indicator.

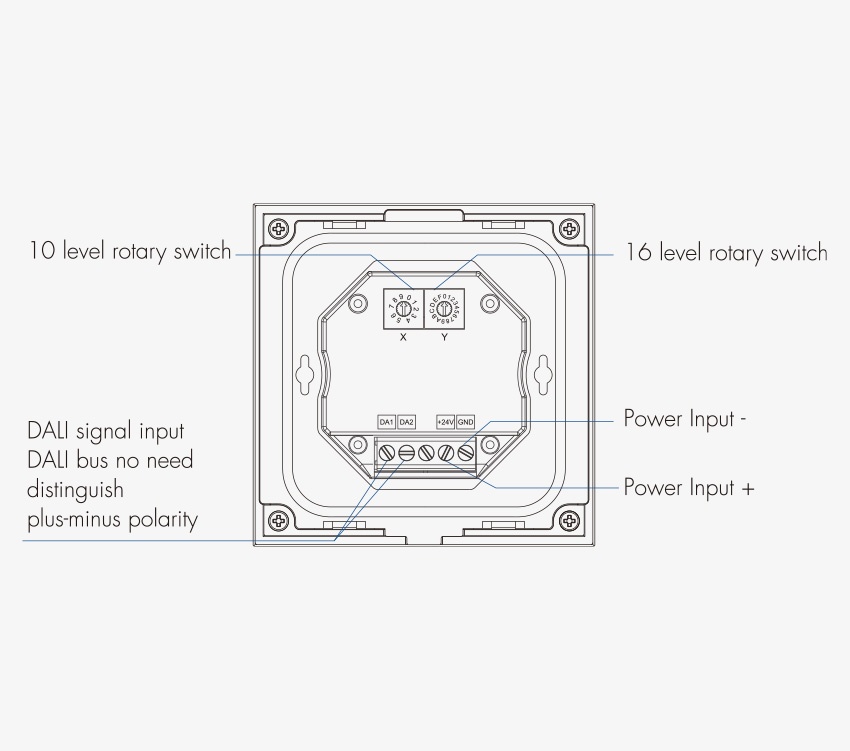

- Encoding switch select addresses, support 4 control modes: scene, grouping, unicast and broadcast.
4 Zone Dali master wall plate with rottary addressing.
Technical Specification |
| Model | LM-CT-TD1-4S |
|
Control distance
|
10m(Barrier-free space)
|
|
Ingress Protection
|
IP20
|
|

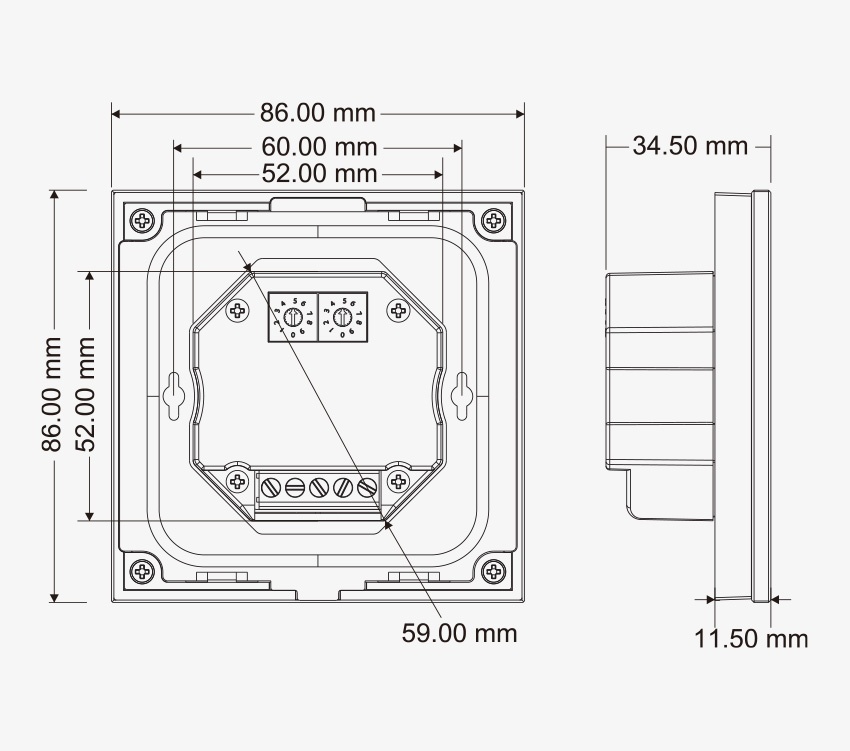

Size
|
112x112x50mm
|
|
Weight
|
0.23kg
|
|
Input
|
Touch key + RF 2.4GHz
|
|
Certification
|
CE,EMC,RED,DALI 2
|
|
Warranty Period
|
5 years
|
