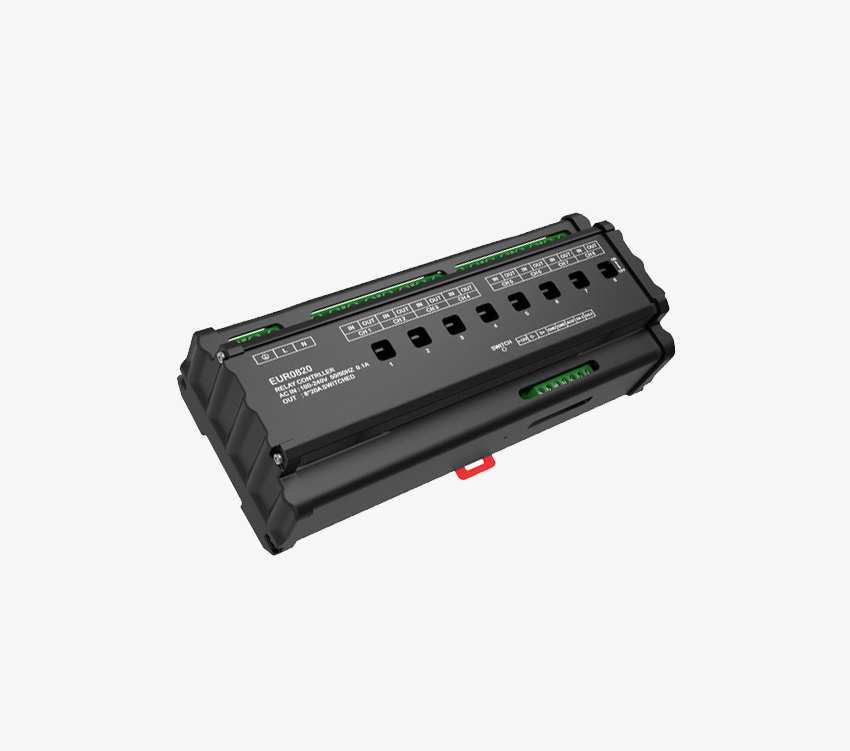

LM-EUR0820-DDL
8 Channel DALI Relay switch
- Dali replay controller
- Meets DMX512(1990)/RDM and DALI IEC62386 protocol
- Output relay controlled 8 channel, max current of each channel is 20A
- Standard 35 mm din rail, convenient installation
- Emergency button for each channel to switch on or off the channel
The product adopts advanced microcomputer control technology, analysis widely used DMX-512 (1990) /RDM and DALI standard protocol. and output 8 relay control signal . The max current of each channel is 20A,the total 8 channel is 160A . In addition, the device can be connected into the Dynalite system by the Dynalite gateway (Note: the Dynalite trademark holder is PHILPS, the relevant right is owned by the holder of the trademark, the same below)
Technical Specification |
| Model | LM-EUR0820-DDL |
|
Input Voltage (Pri)
|
110V - 240V AC
|
|
Output
|
RELAY NO/NC
|
|
Ingress Protection
|
IP20
|
|
Size
|
230*104*72mm
|
|
Working Temperature
|
0°C ~+55°C
|
|
Certification
|
CE ROHS Certified
|
|
Warranty Period
|
3 Years
|
