DATASHEET - The product adopts advanced MOS-FET control technology, can accurately realize the phase cut function, and has no requirement for the type or capacity of load. High compatibility on connected loads. 4 independently addressed channels. Controllev via DMX-512 (1990) /RDM and DALI standard protocol, and can access KNX, Dynalite, Lutron, Crestron, LDS and other intelligent dimming network via gateway.

www.lumeno.ie
euma-1
euma-1euma-2
LM-EUMA0405

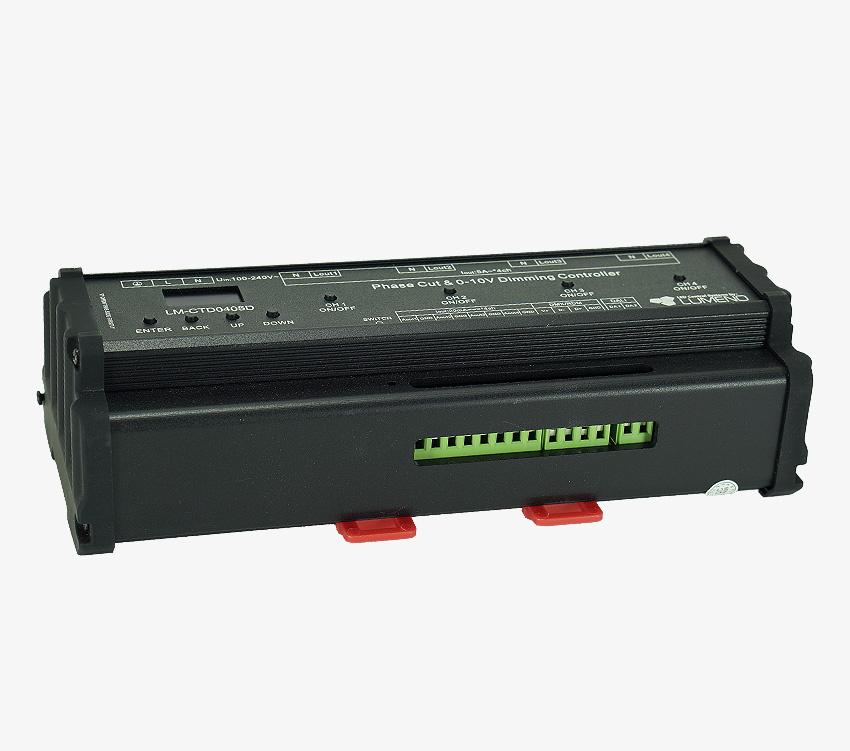

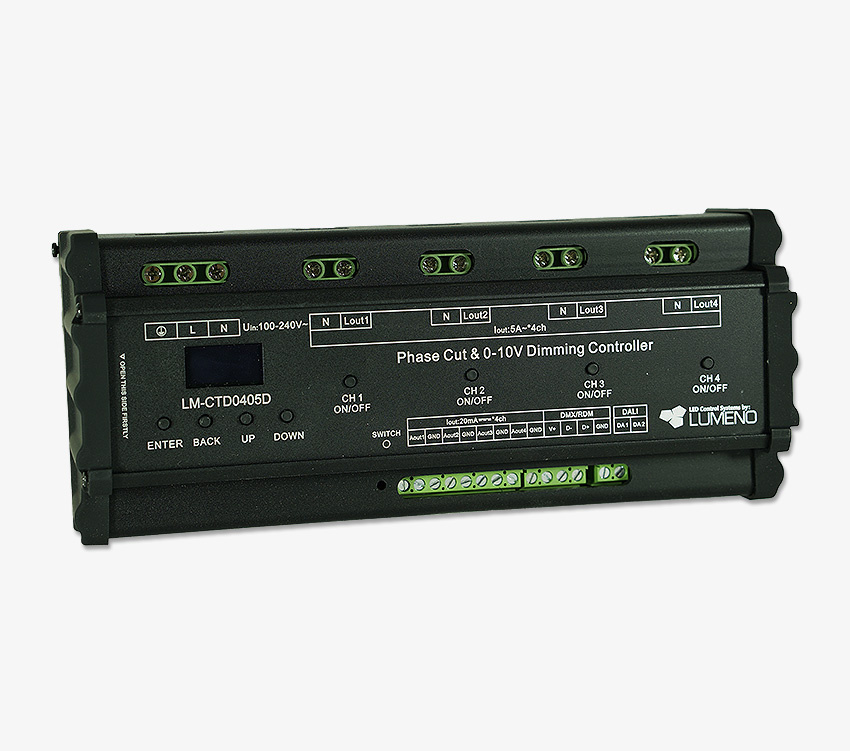

4 Channel Dali Triac (Trailing Edge) Dim

  • DMX512(1990)/RDM, DALI Dimmer
  • 4 channels AC MOSFET phase cut signal
  • Maximum output current of AC MOSFET is 5A/ch
  • Built-in LCD, the user can operate more conveniently
  • Each circuit is equipped with emergency switch that control full brightness (100%) output function
  • Standard 35 mm din rail, convenient installation
High voltage LED Dali dimming interface with 4 outputs of 5A each. Manual address set. Please refer to the manual for detailed information.

Technical Specifications

General
Model
LM-EUMA0405
Product type
Lighting Controlls, Dali Dimming
Compliance summary
CE ROHS Certified
Warranty
5 Years
Electrical
Input Voltage (Pri)
110V - 240V AC
Rated output power (W)
4x 1000 Watt
Rated output current (A / mA)
4CH, 5A/Ch
Inrush current
Max. IRC limit per ch: 100A
Lighting
Output specification
110V - 240V AC
Mechanical
IP rating
IP20
Dimensions (mm)
226*100*68mm
Operating temperature (degrees C)
0°C ~+55°C
