LM-CT6040D

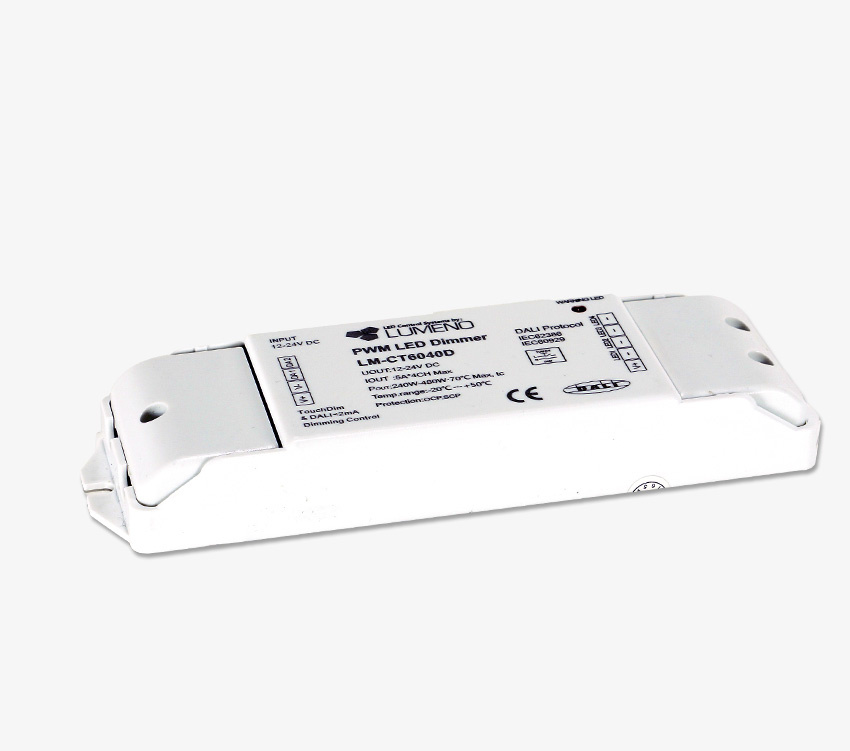

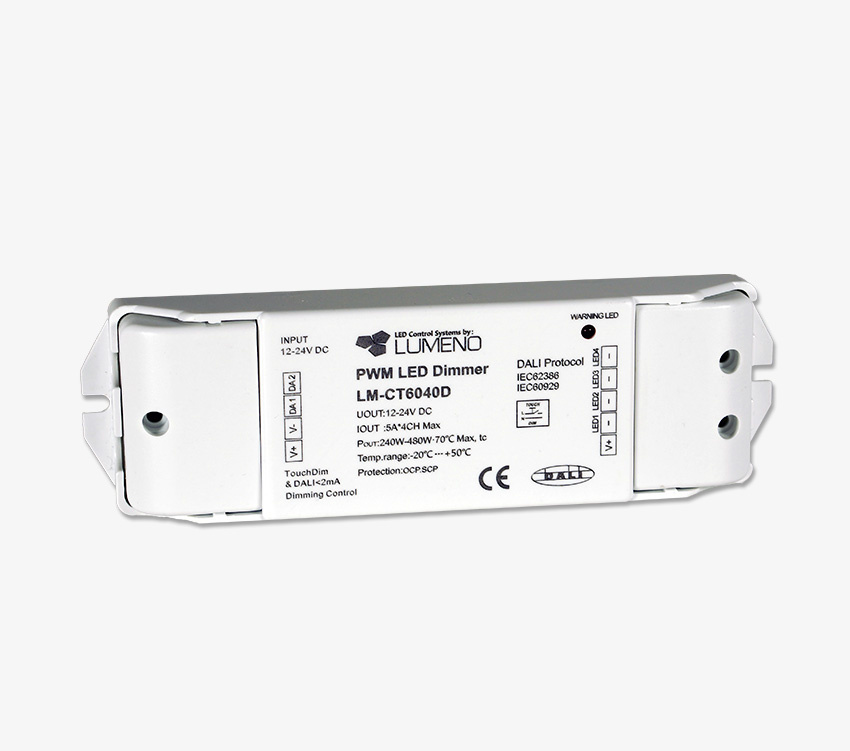

Dali Decoder 12/24V 4x5A

No vote
  • Dali decoder/dimmer
  • 4x 5A Output 12/24V
  • Standard inline box casing
  • Compatible with Dali DT6 and DT8 system
Simple 4ch DALI decoder. 4x5A output capacity (x4 12V@60W, 24V@120W). Address for each output can be set with a programmer, or receive broadcast commands and dim all at the same time. Stadard linear plastic case. Requires dali bus to operate or CT2400RB dimmer.

Technical Specification

ModelLM-CT6040D
Input Voltage (Pri) 12V-24V DC
Output Power (P) 240-480 Watt
Current Output (Io) 4Ch, 5A/Ch
Ingress Protection IP20
Warranty Period 3 Years
Working Temperature -30°C ~+55°C
Certification CE ROHS Certified
