LM-SHD30-RGB

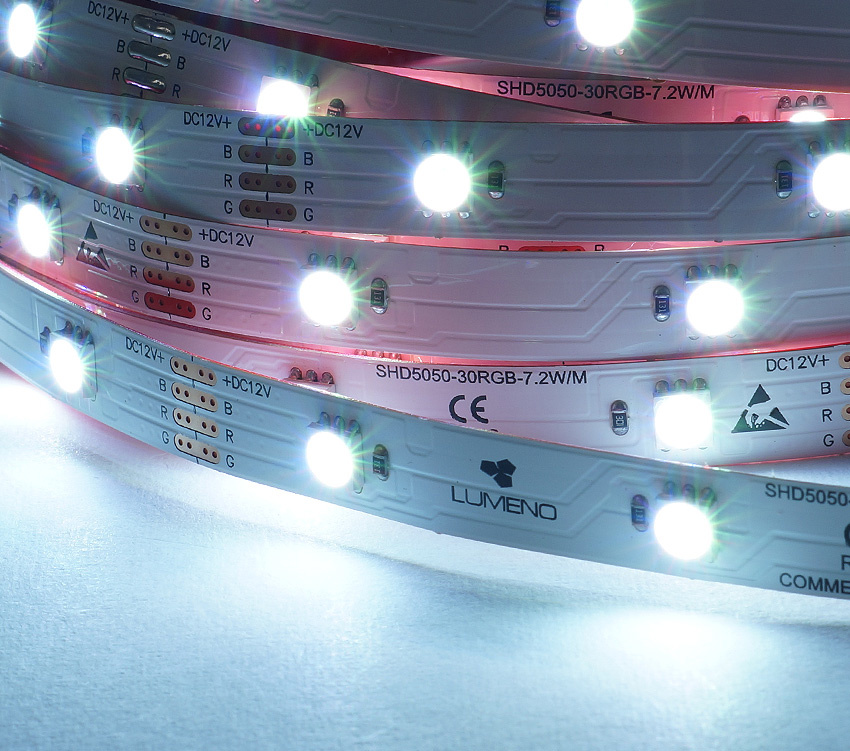

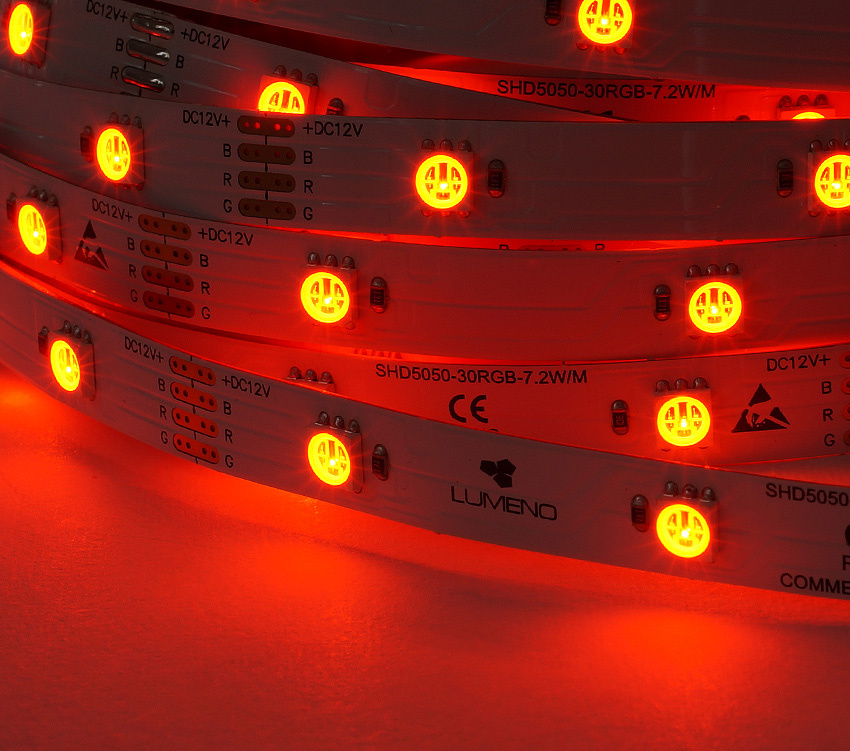

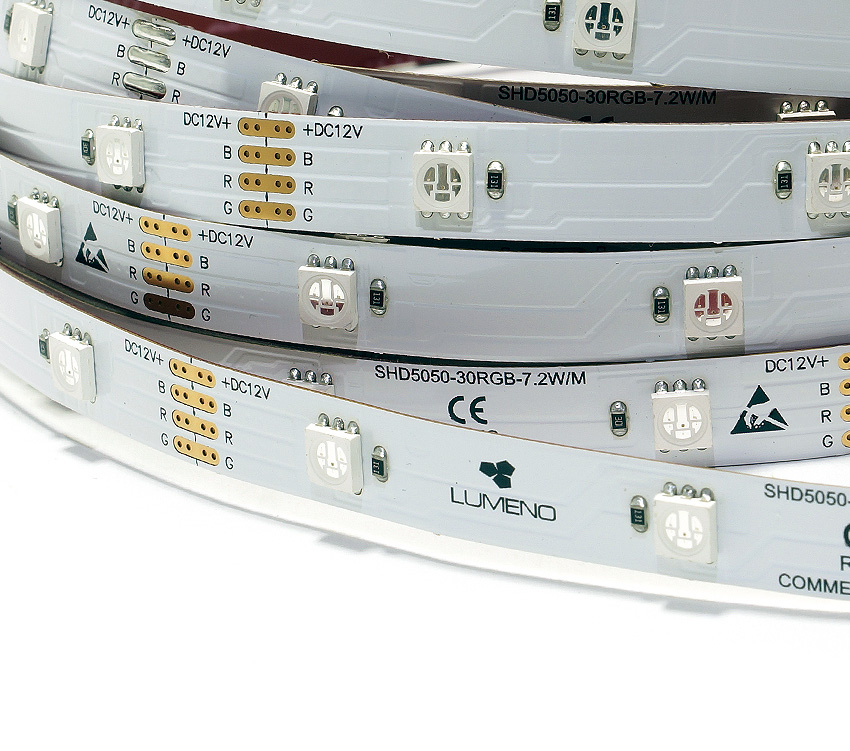

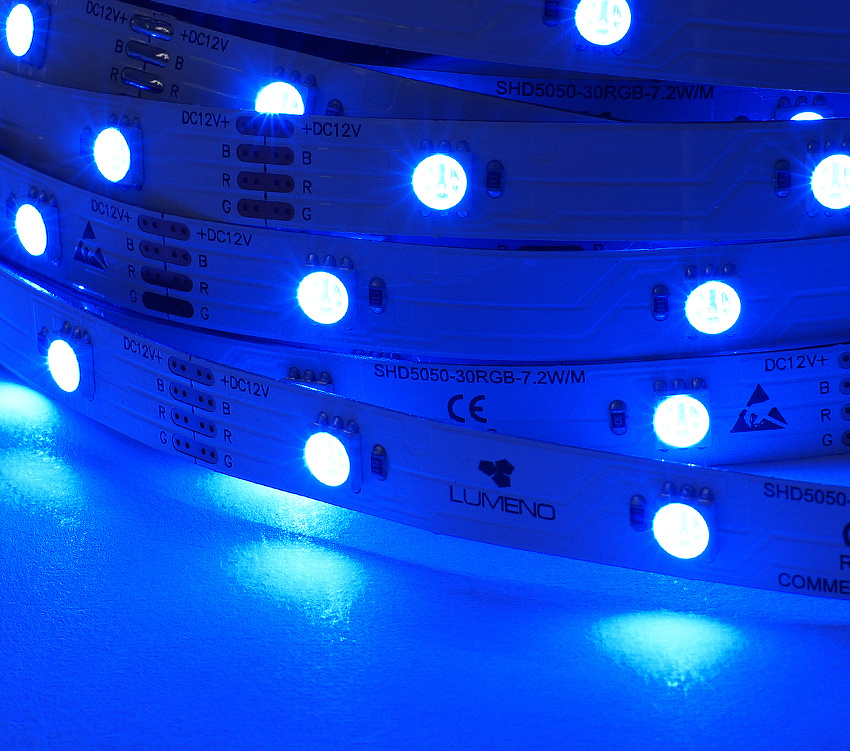

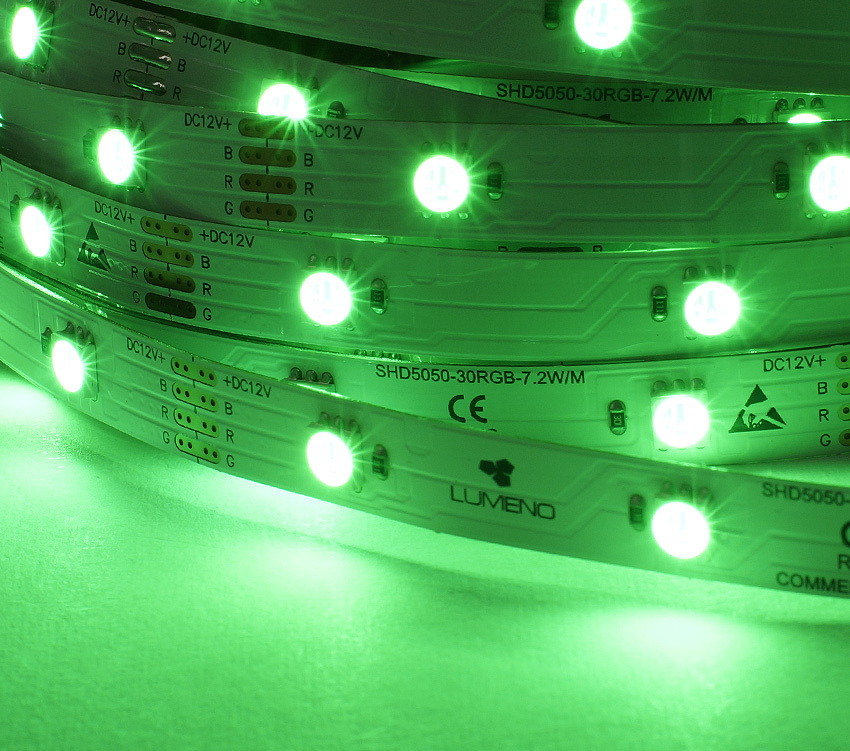

SHD30 RGB LED Strip, 7.2W/m, IP20, 12V, p/m

No vote
RGB
  • COLOUR CHANGING RGB STRIP
  • High Output RGB LEDS requiring less LED’s per meter.
  • Self-adhesive back - RED 3M tape

Lumeno commercial grade RGB Strip. 30 LED/M, 12VDC, Full colour spectrum. Requires RGB+ controller to operate.

Technical Specification

ModelLM-SHD30-RGB
Light Source LED
Luminaire power consumption 7.5Watt / M
Luminous Flux (LM) RGB
Nominal Power 7.5
Correlated Colour Temperature (CCT) RGB
LED Quantity 30 LED / M
LED Type SMD 5050
Input Voltage (Pri) 12V DC
Min Cut (Circuit) 100mm (3 LED)
FPC Size 2Oz FPC, 8mm
Ingress Protection IP20
Driver requires rgb controller
Warranty Period 3 Year
Maximum Length (mm) 7500
Connection Wire 4 Core - 22AWG
