DATASHEET - STX120 IP68 - 2700K Warm White - [p/m]

www.lumeno.ie
stx120x8ww-2
stx120x8ww-2stx120x8ww-1
LM-STX120WP2-WW

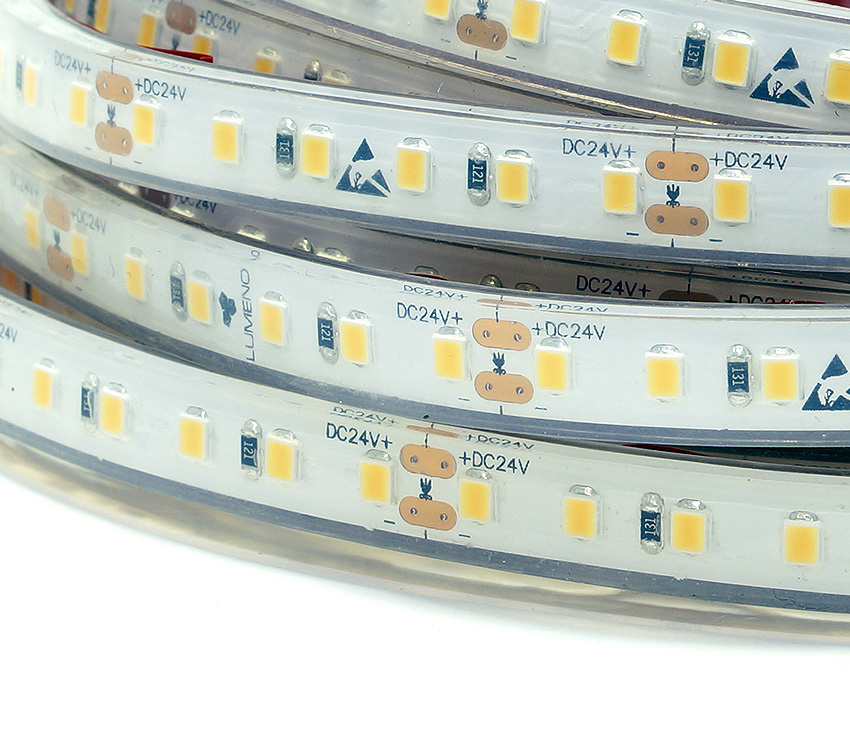

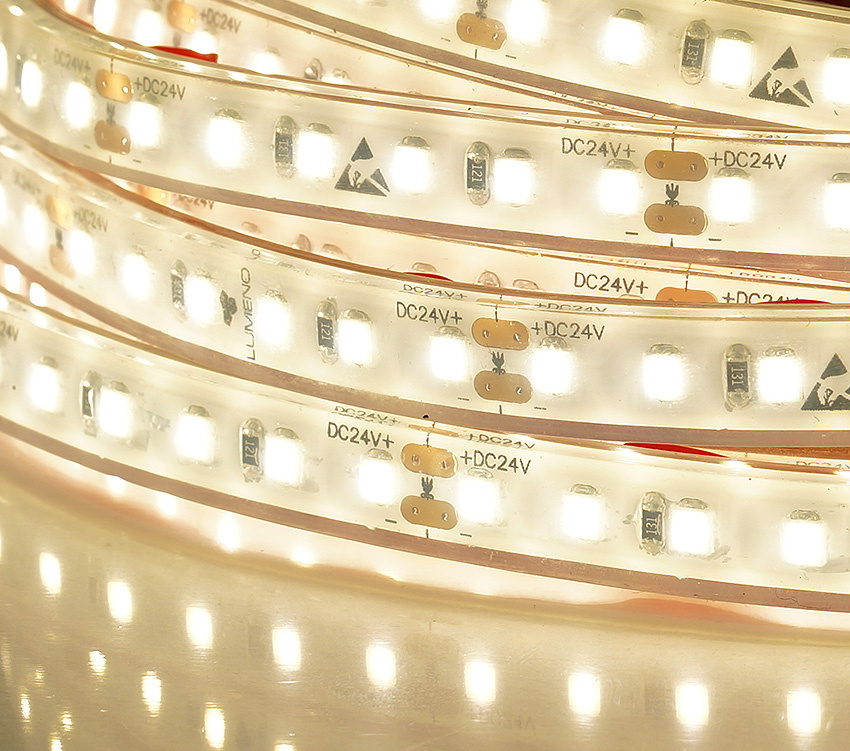

STX120 High Output LED Strip, 14.4W, IP68, 24V, 2700K, p/m

No vote
1150LM
  • External High Brightness Strip
  • Ideal solution for linear architectural illumination or signage
  • 50mm circuit sections
  • Heat-resistant SILICON GEL and sleeve
  • Small pitch (6mm) - line of light effect with less noticable dots
  • Custom Cuts
  • Heat-resistant SILICON GEL and SLEEVE - long lifespan with no yellowing
  • Self-adhesive back - RED 3M tape
External High output strip designed for signage and general banner illumination. IP68 silicon sleave with silicon gel filling. Classic 2700K Warm White.

Technical Specification

ModelLM-STX120WP2-WW
Luminous Flux (LM) 1150LM
Nominal Power 14.4 Watt
Correlated Colour Temperature (CCT) 2700K
Colour Rendering Index (CRi) >90
Strip Size 10mm
LED Quantity 120LED / M
LED Type SMD 2835
Input Voltage (Pri) 24V DC
Min Cut (Circuit) 50mm (3 LED)
Application Indoor/Outdoor
Ingress Protection IP68
Maximum Length (mm) 10000
Connection Wire 2 Core - 20AWG
Warranty Period 3 Year
