LM-STC504-WW

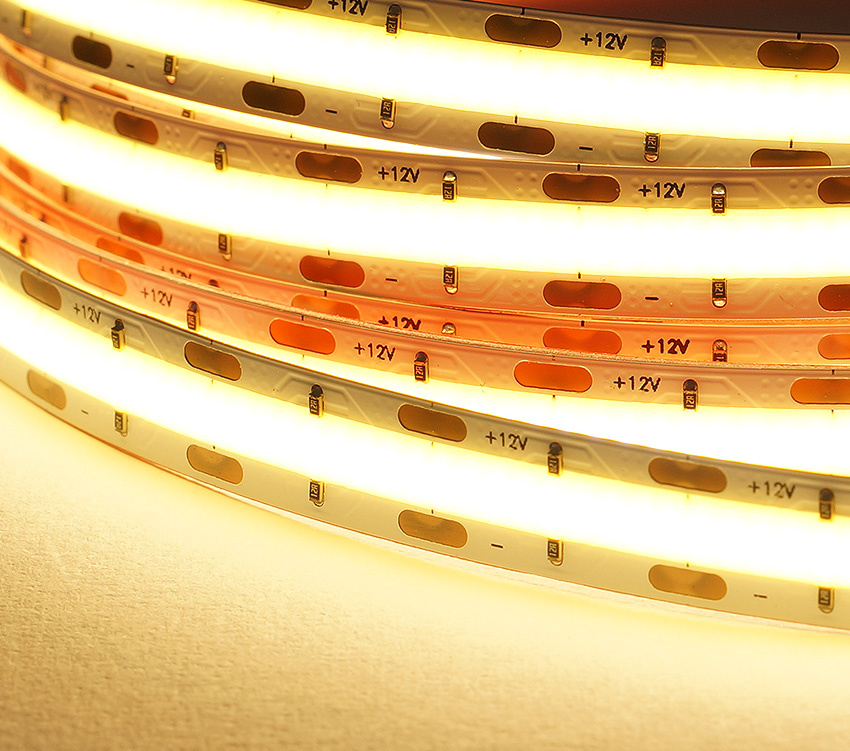

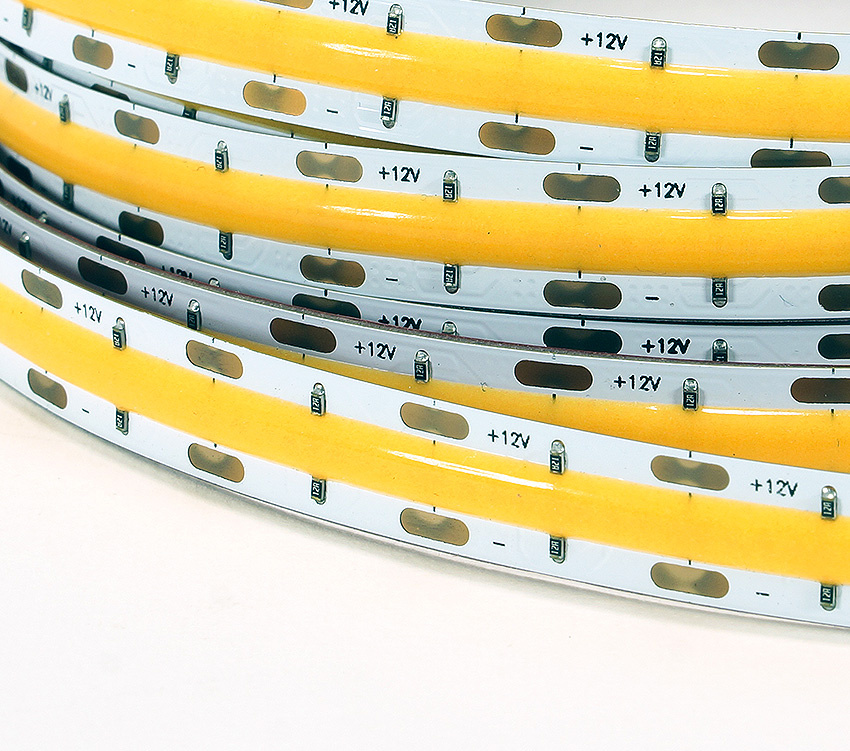

COB LED Strip, 504 chips/m,12V,10W,18mm cut,10mm FPC,2700K

No vote
785LM
  • Extra small cutting sections 20mm
  • COB LED, 504 LEDS Coated
  • 12V DC, 10 Watt / m
  • Custom cuts
  • Non-Waterproof IP20 for indoor only
  • Self-adhesive back - RED 3M tape

COB Solution. 504 small LED chips per meter coated with light enhancing plastic. No-dot solution for exposed areas. Classic 2700K for general applications.

Technical Specification

ModelLM-STC504-WW
Luminare Class NMDLS
Luminous Flux (LM) 785LM
Nominal Power 10 Watt
Correlated Colour Temperature (CCT) 2700K
Colour Rendering Index (CRi) >90
LED Quantity 504LED / M
LED Type COB
Input Voltage (Pri) 12V DC
Min Cut (Circuit) 20mm (COB)
Output (Vo) 12V DC
FPC Size 3Oz FPC, 10mm
Application Indoor Only
Ingress Protection IP20
Warranty Period 5 Year
Maximum Length (mm) 5000
Connection Wire 2 Core - 20AWG
