LM-STQ3528-120-WW

STQ120 Standard LED Strip, 5M REEL, 9.6W/M, IP20, 2700K

No vote
750LM

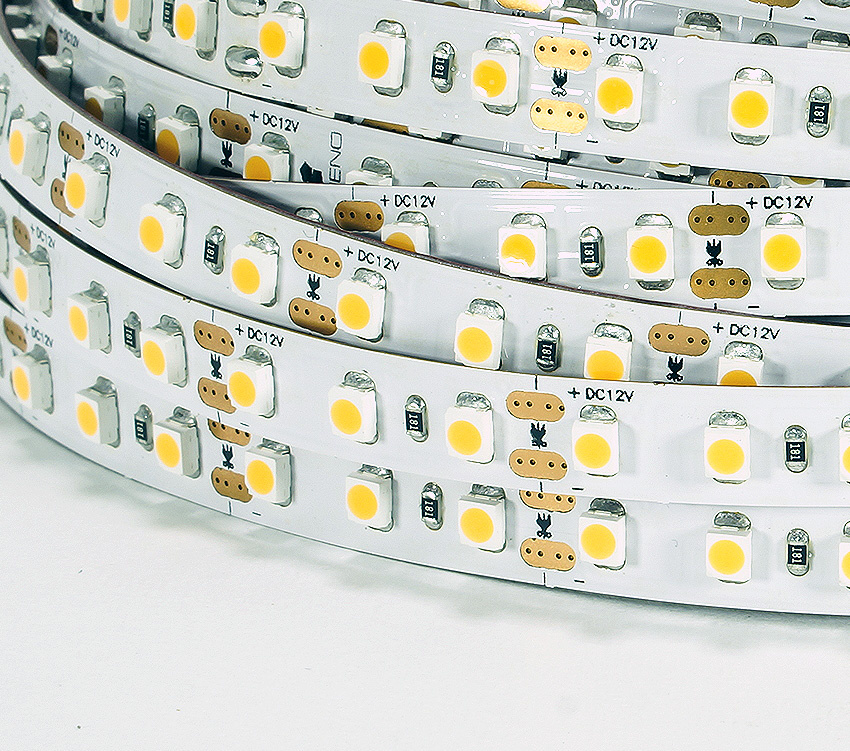

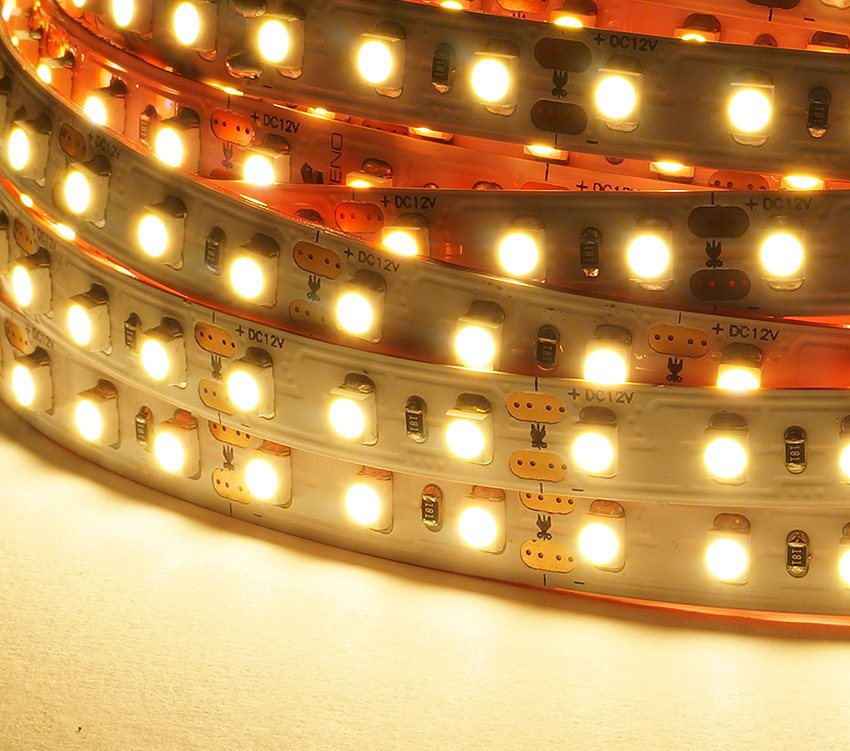

  • 120 LED - 3528 SMD per/mt
  • CRI>90, natural looking colours
  • Easy to cut, rejoin with crimps or solder
  • High density strip
  • Self-adhesive back - RED 3M tape
Standard series led strip with increased led density. 120 LED's per meter and 9.6W power consumption, small pitch. Classic 2700K for general application.

Technical Specification

ModelLM-STQ3528-120-WW
Luminous Flux (LM) 750LM
Nominal Power 9.6 Watt
Correlated Colour Temperature (CCT) 2700K
Colour Rendering Index (CRi) >90
LED Quantity 120LED / M
LED Type SMD 3528
Input Voltage (Pri) 12V DC
Min Cut (Circuit) 25mm (3 LED)
FPC Size 2Oz FPC, 8mm
Ingress Protection IP20
Maximum Length (mm) 7500
Connection Wire 2 Core - 20AWG
Warranty Period 5 Year
