DATASHEET - STQ60 IP55 - Crimson Red

www.lumeno.ie
stq60r5r-1
stq60r5r-1stq60r5r-2
LM-STQ3528WP-60-R

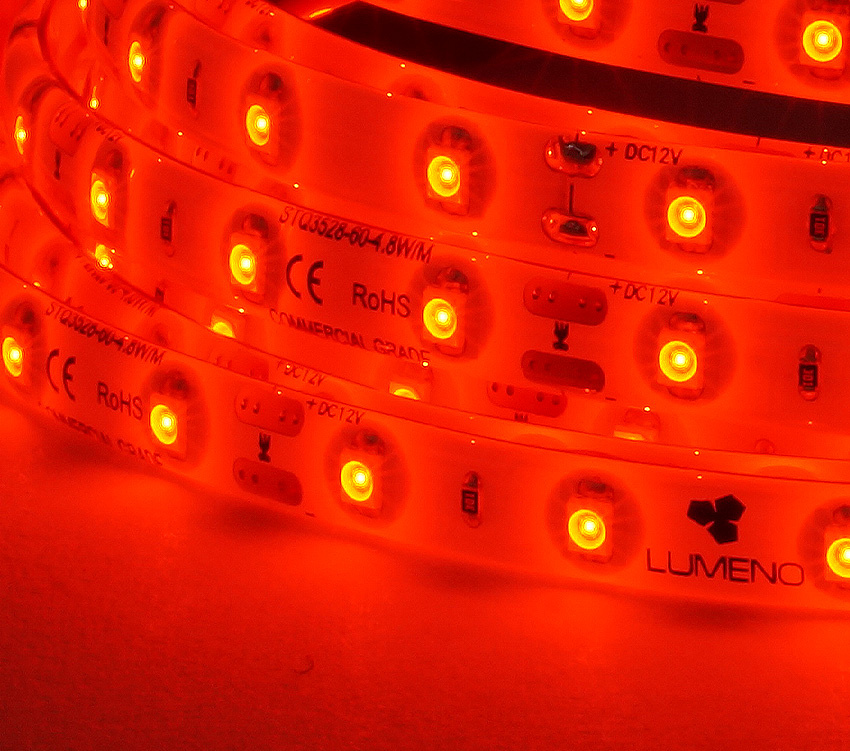

STQ60 LED Strip, 4.8W/M, 5M REEL, IP55, RED

No vote
210LM
  • 60 LED - 3528 SMD per/mt
  • Deep Red
  • Easy to cut, rejoin with crimps or solder
  • PU/Silicon Coated
  • IP55 For indoor use
  • Self-adhesive back - RED 3M tape

Standard series LED Strip for commercial and domestic use. 5m reel complete with connectors and manual. Crimson Red. IP55 PU coated for extra protection

Technical Specification

ModelLM-STQ3528WP-60-R
Luminous Flux (LM) 210LM
Nominal Power 4.8 Watt
Correlated Colour Temperature (CCT) Red
LED Quantity 60 LED / M
LED Type SMD 3528
Input Voltage (Pri) 12V DC
Min Cut (Circuit) 50mm (3 LED)
FPC Size 2Oz FPC, 8mm
Ingress Protection IP55
Warranty Period 3 Year
Maximum Length (mm) 10000
Connection Wire 2 Core - 20AWG
