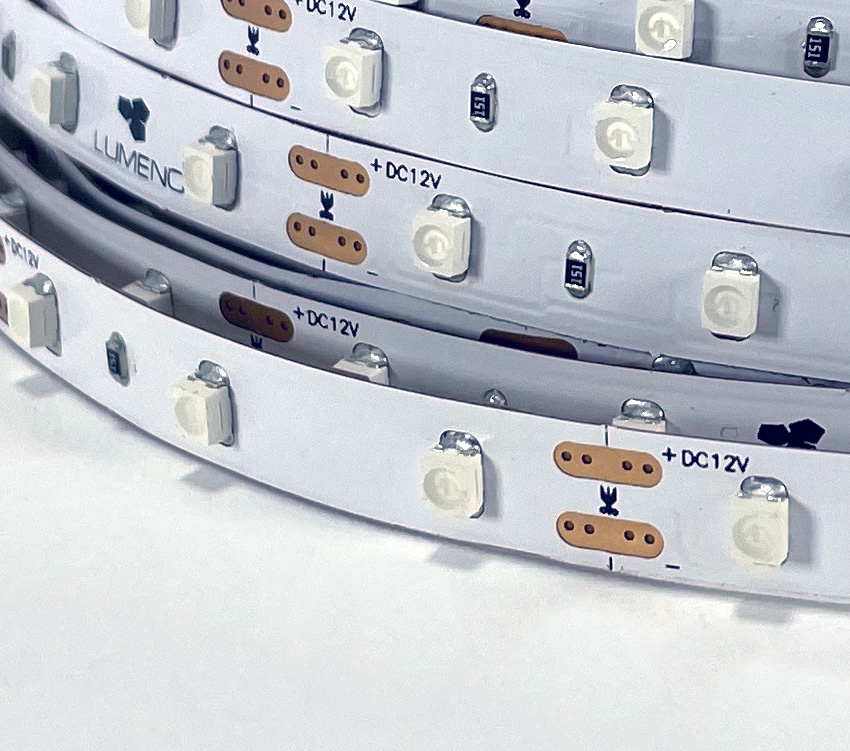

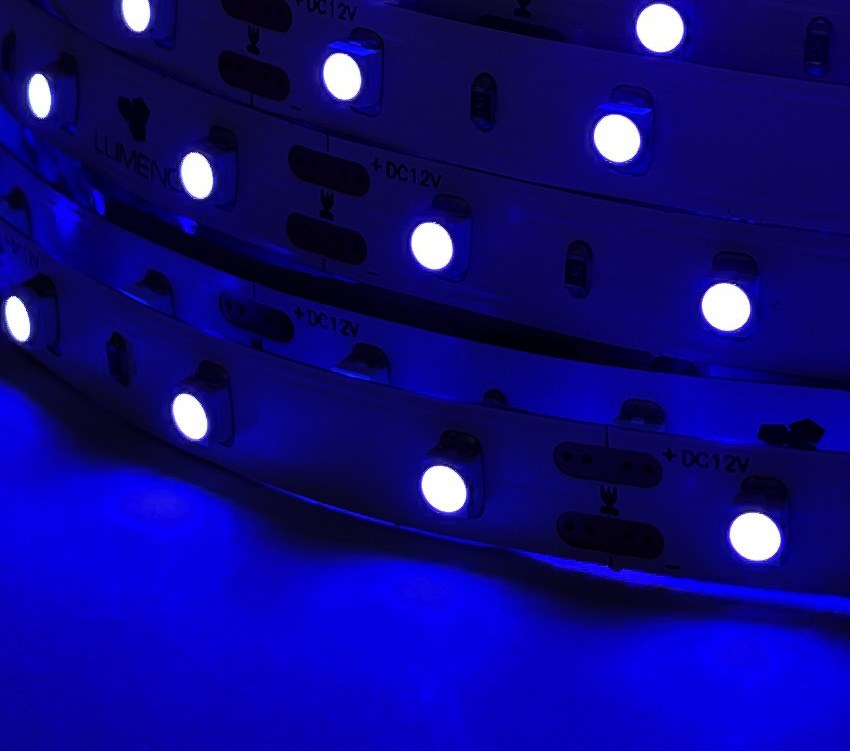

STQ60 Standard LED Strip, 5M REEL, 4.8W/M, IP20, Ultra-V
DATASHEET - STQ60 - Ultra - Violet
www.lumeno.ie
LM-STQ3528-60-UV
STQ60 Standard LED Strip, 5M REEL, 4.8W/M, IP20, Ultra-V
No vote
13LM
60 LED - 3528 SMD per/mt
Ultra Violer 400nm
Easy to cut, rejoin with crimps or solder
Bare PCB
Non-Waterproof IP20 for indoor only
Self-adhesive back - RED 3M tape
Standard Series LED Strip. Ultra-Violet 400nm, custom made for Lumeno.
Technical Specification
Model
LM-STQ3528-60-UV
Luminous Flux (LM)
13LM
Nominal Power
4.8 Watt
Correlated Colour Temperature (CCT)
Ultra Violet
LED Quantity
60 LED / M
LED Type
SMD 3528
Input Voltage (Pri)
12V DC
Min Cut (Circuit)
50mm (3 LED)
Output (Vo)
12V DC
FPC Size
2Oz FPC, 8mm
Ingress Protection
IP20
Warranty Period
5 Year
Maximum Length (mm)
10000
Connection Wire
2 Core - 20AWG
Downloads
Datasheet [pdf]
CE [pdf]
