DATASHEET - IP20 Indoor Power Supply

www.lumeno.ie
ps24v250sl-1
ps24v250sl-1ps24v250sl-2

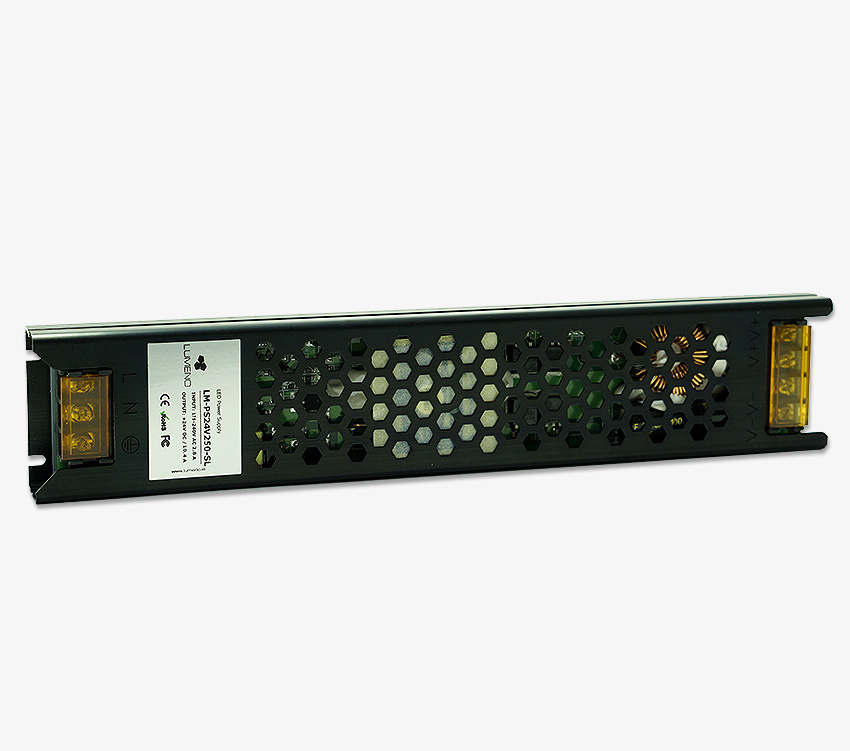

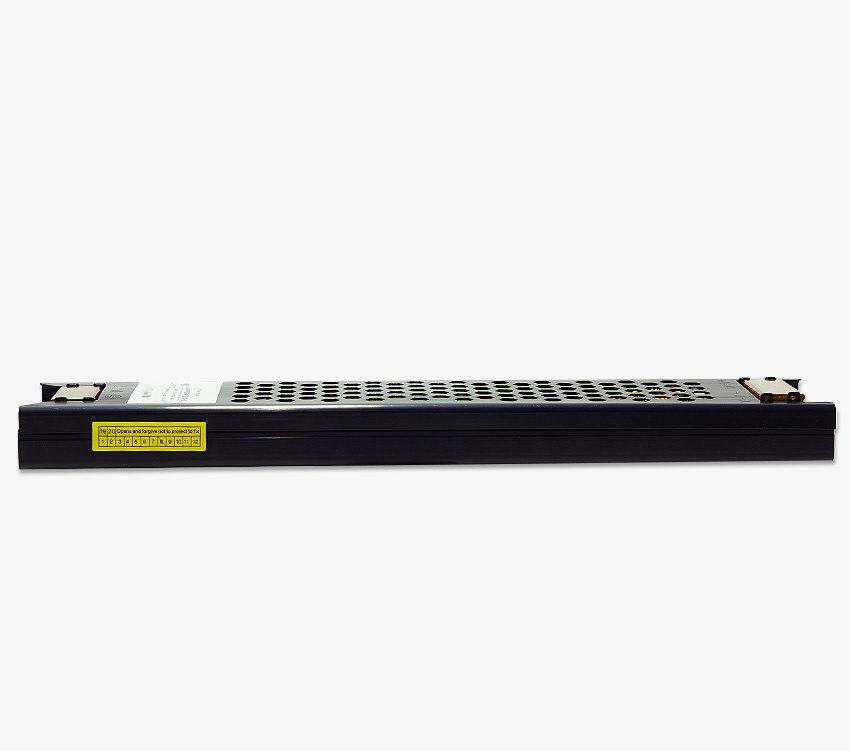

LM-PS24V250SL

24V 250W,10.42A, Power Supply, IP20, metal

  • Single channel constant voltage output
  • High operating temperature up to 70°C
  • Metal body
  • High efficiency
  • 100% full load bur-in test
  • Protection: OTP,OLP,OVP,SCP
  • Using 105 long life electrolytic capacitors°C

Compact, slimline metal case power supply. 5mm terminal blocks. Air cooled.

Technical Specifications

General
Model
LM-PS24V250SL
Product type
Power Supply (CV)
Compliance summary
CE ROHS Certified
Warranty
1 Year
Electrical
Input current (AC / DC)
1.7A@230V
Input Voltage (Pri)
110V - 240V AC
Rated output power (W)
250 Watt
Rated output current (A / mA)
10.42A
Dimming / control type
non-dimmable
Power factor
0.6
Inrush current
50A @230V
Standby power (W)
10mA@240vAC
Lighting
Output specification
24V DC
Mechanical
IP rating
IP20
Dimensions (mm)
280*55*22mm
Weight
220g
Operating temperature (degrees C)
-20°C ~ 40°C

Downloads & Resources

Technical documents and support files for LM-PS24V250SL

Print-friendly layout
Press CTRL+P to save as pdf.
Datasheet [pdf] FILE  ·  Downloadable PDF file
Download
CE [pdf] FILE  ·  Downloadable PDF file
Download
