DATASHEET - IP20 Slim Sized Power Supply

www.lumeno.ie
ps24v60cls-1
ps24v60cls-1ps60cls-2
LM-PS24V60CLS

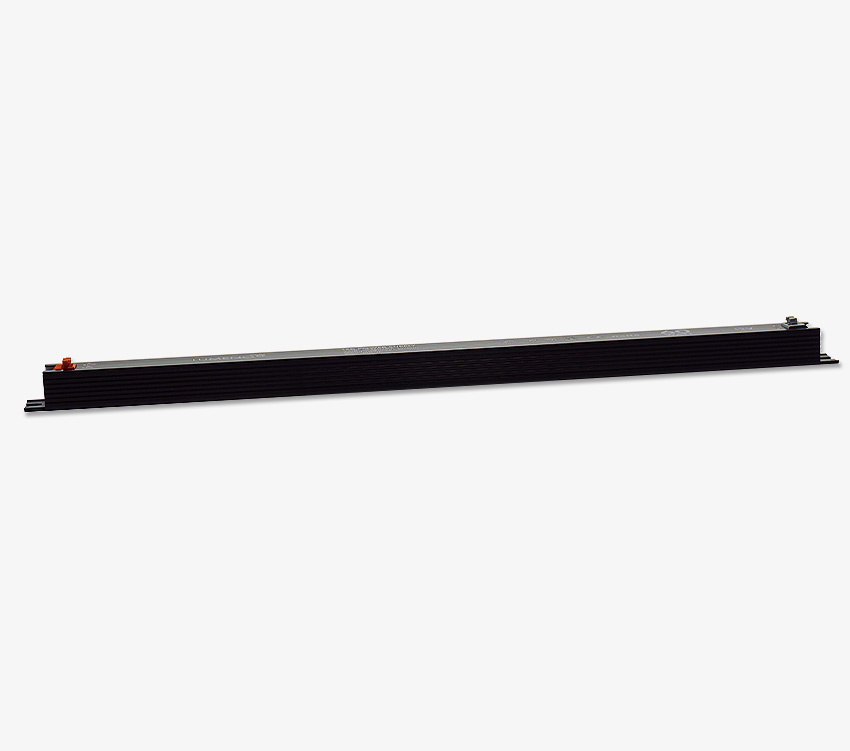

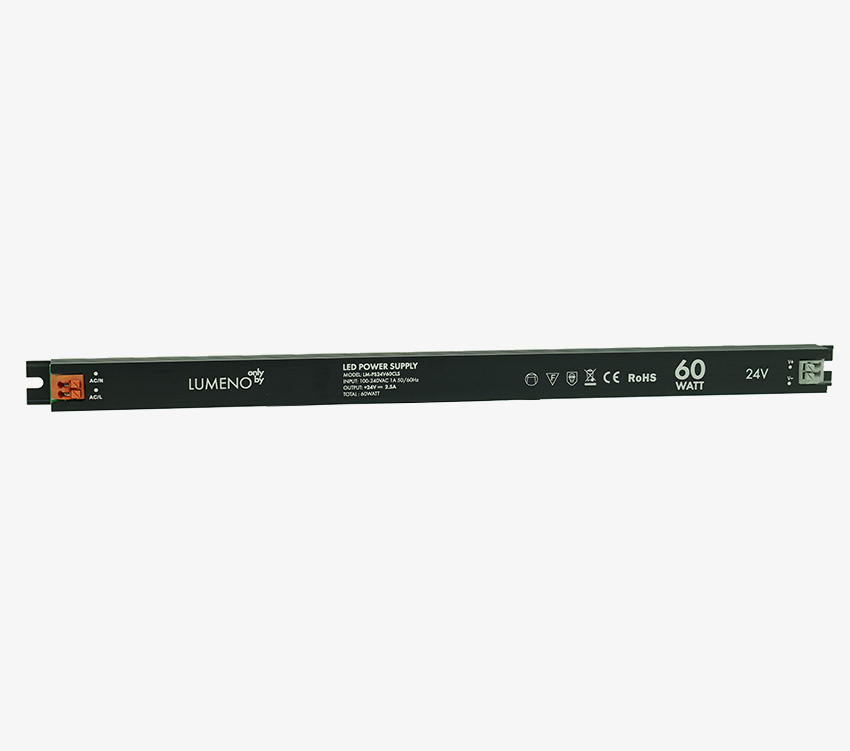

24V 60W, 2.5A, Power Supply, Slim, n/d, metal, terminals

No vote
  • Single channel constant voltage output
  • High operating temperature up to 70°C
  • Metal body
  • Protection: OTP,OLP,OVP,SCP
Super slim, metal case power supply with push in terminal blocks (max. 2x1.0). Ideal for custom build luminares, and coaving applications.

Technical Specification

ModelLM-PS24V60CLS
Standby Power <0.5W
Input Voltage (Pri) 110V - 240V AC
Inrush Current 50A typ. @ 230Vac
Output 24V DC
Output Power (P) 60 Watt
Current Output (Io) 2.5A
Power Factor 0.95
Ingress Protection IP20
Dimming non-dimmable
Size 316*18*15mm
Weight 150g
Working Temperature -20°C ~ 40°C
Protection auto recovery: overload:105%;overtem;short-circuit
Certification CE ROHS Certified
Warranty Period 2 Year
