24V 15W LED Power Supply,Terminal blocks
DATASHEET - IP40 Class II Power Supply
www.lumeno.ie
LM-PS24V15PC

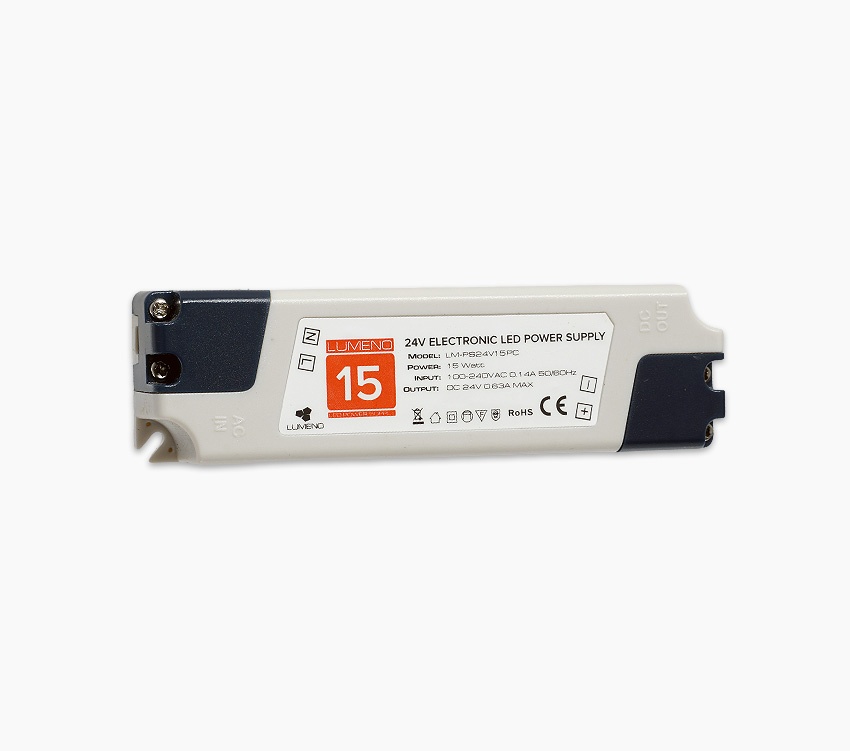

24V 15W LED Power Supply,Terminal blocks
Single channel constant voltage output
Plastic housing and class II design without FG
Universal AC input / Full range
100% full load burn-in test
No load power consumption<0.5W
High efficiency, long life and high reliability
Compact, plastic case power supply with 5mm terminal blocks.
Technical Specifications
General
Model
LM-PS24V15PC
Product type
Power Supply (CV)
Application
Indoor Only
Compliance summary
CE ROHS Certified
Warranty
1 Year
Electrical
Input Voltage (Pri)
110V - 240V AC
Rated output power (W)
15 Watt
Rated output current (A / mA)
0.625A
Dimming / control type
non-dimmable
Power factor
0.95
Controller type
Dimmer
Standby power (W)
0.5W
Lighting
Output specification
24V DC
Mechanical
IP rating
IP20
Dimensions (mm)
99.6*29.1*22mm
Weight
60g
Operating temperature (degrees C)
-20°C~+60°C, 20%~90%RH
